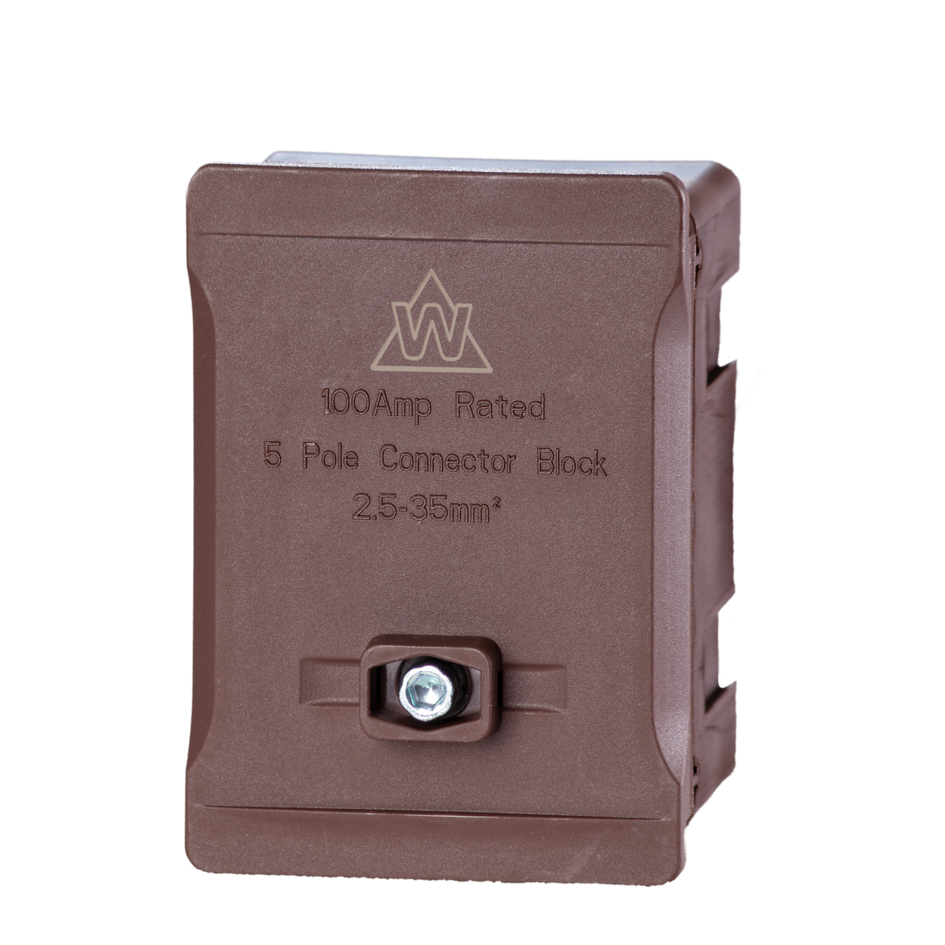

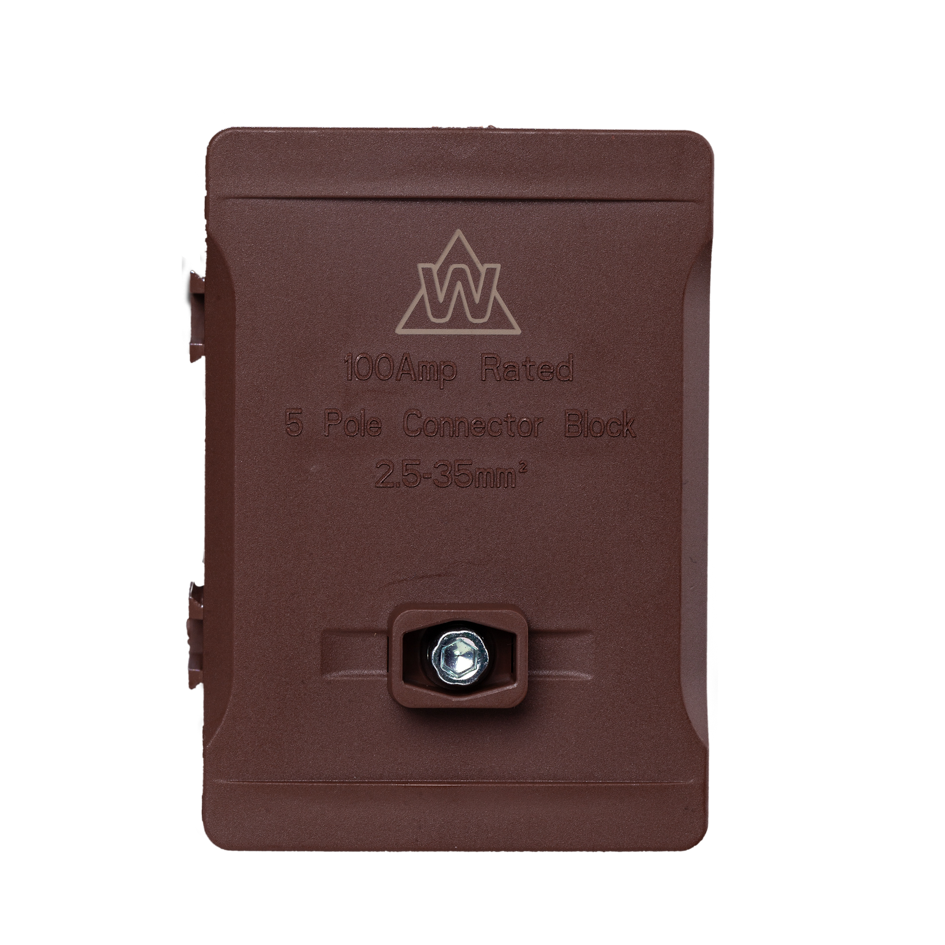

5 Way 100A Terminal Block – Brown
18th Ed. Compliant
2-Year Warranty
UK Stock
Free Delivery £30+
Secure Payments With

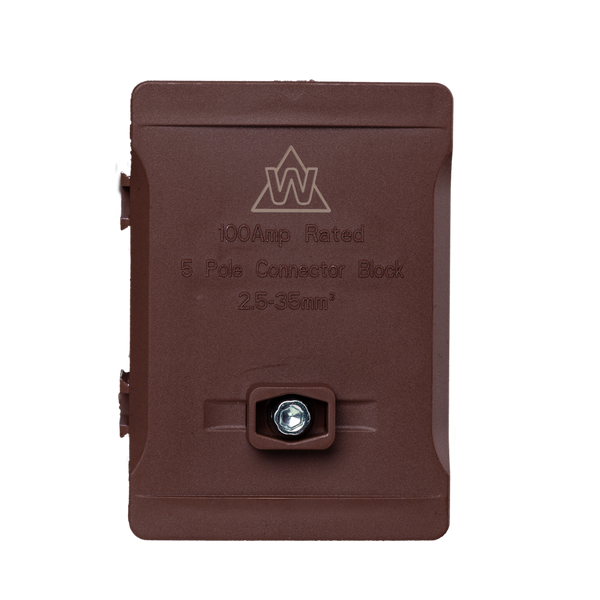

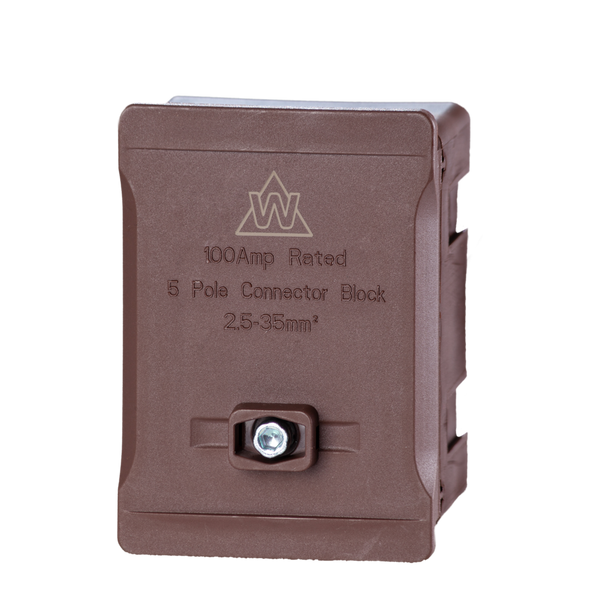

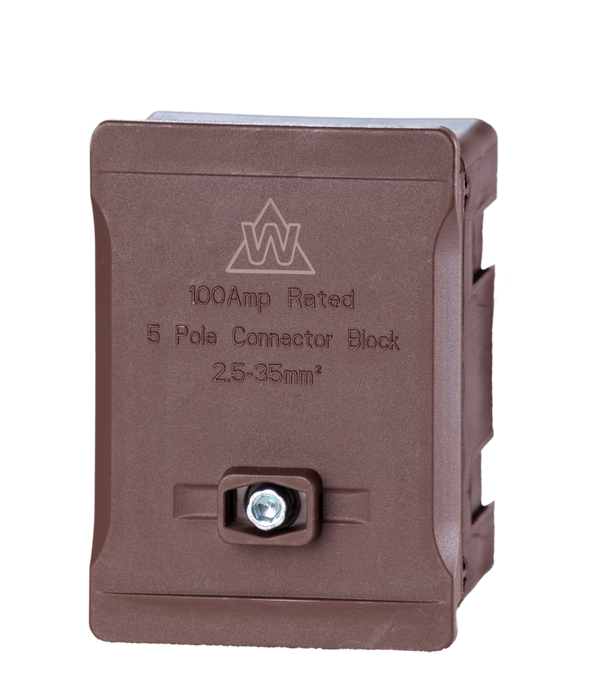

The WTB5-BR is a 5 way 100A terminal block in brown, typically used to identify live connections in single-phase and three-phase systems. Designed for safe, neat, and secure electrical terminations, it accepts cables from 2.5 mm² to 35 mm², making it ideal for splitting meter tails, feeding distribution boards, or...
The WTB5-BR is a 5 way 100A terminal block in brown, typically used to identify live connections in single-phase and three-phase systems. Designed for safe, neat, and secure electrical terminations, it accepts cables from 2.5 mm² to 35 mm², making it ideal for splitting meter tails, feeding distribution boards, or managing multiple circuits in residential and commercial installs.
The block features a lockable, sealable lid for tamper-resistant use and includes blanking inserts to safely cover unused terminals. A hexagon screw clamp design ensures strong, vibration-resistant connections. Colour-coded variants simplify circuit identification, with brown recommended for live feeds in compliance with wiring regs.
Installer Tip: Use the brown variant to clearly mark live connections when splitting meter tails or feeding consumer units. Always torque to 3 Nm and seal the lid if required by the DNO.
Key Features
- 100A rated – suitable for high-demand tails and feeds
- 5-way layout – simplifies neat multi-circuit connections
- Cable capacity: 2.5 mm² to 35 mm²
- Brown colour coding – aligns with wiring regs for live conductors
- Lockable, sealable lid – tamper-proof if required
- Blanking inserts included for unused ways
- Hexagon screw clamps – high clamping force, vibration resistant
- Recommended torque: 3 Nm

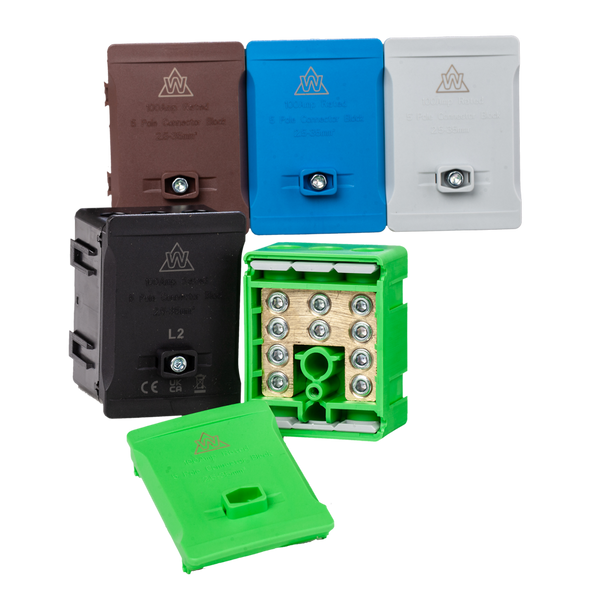

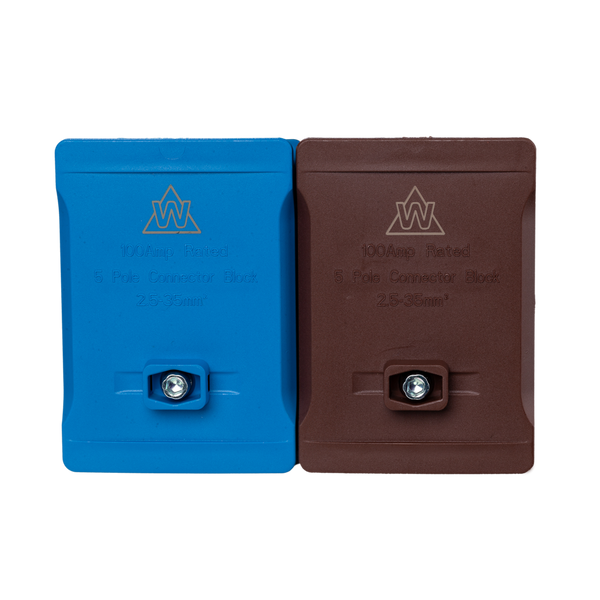

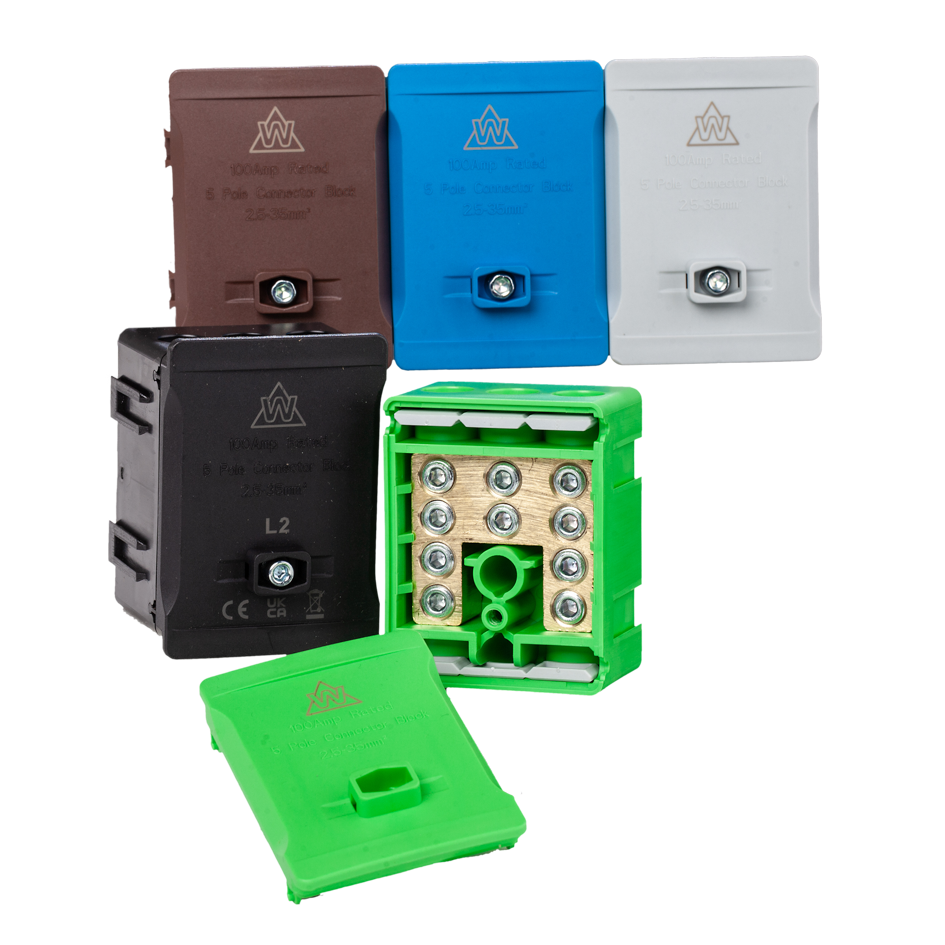

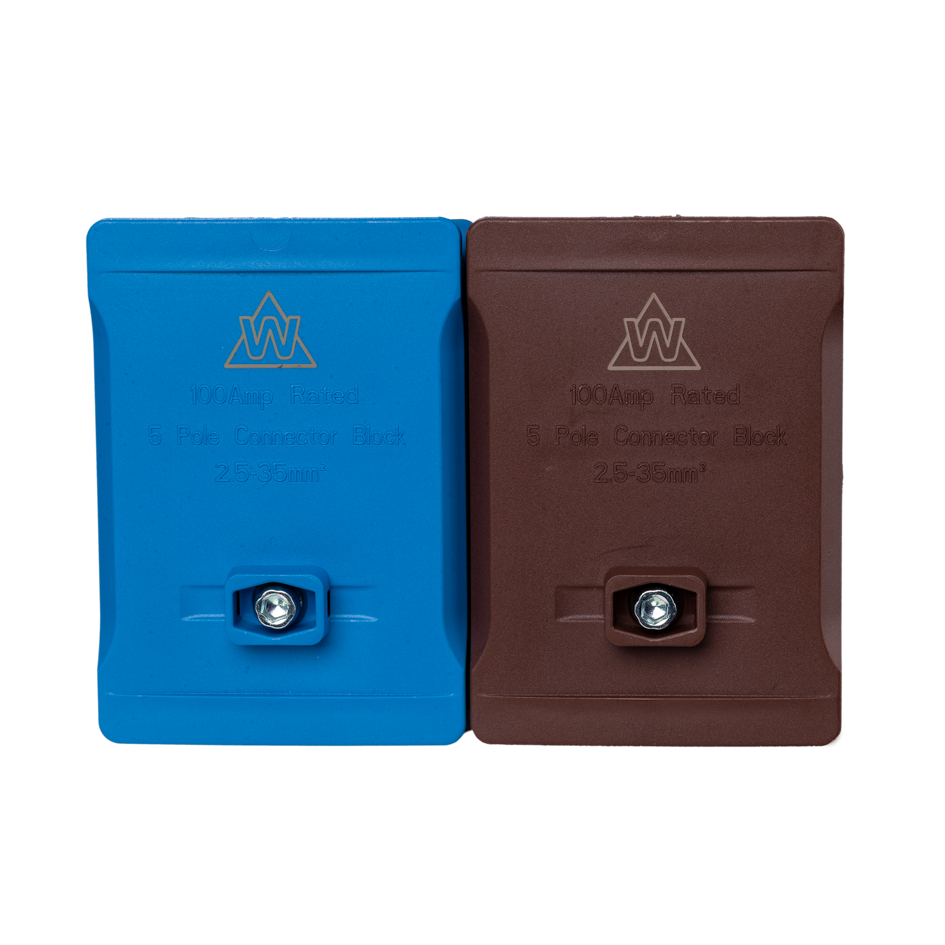

Compare WTB5 Terminal Block Variants
| Model | Colour | Typical Use |
|---|---|---|
| WTB5-BR (This Product) | Brown | Live connection |
| WTB5-GY | Grey | Alternate phase |
| WTB5-BL | Blue | Neutral |
| WTB5-GN | Green | Earth / bonding |
| WTB5-PK | Pink | Additional identifier |
Is the brown terminal block always used for live?
Yes – brown is the standard wiring colour for live conductors in the UK, making this block ideal for live tail splitting.
Can I use it with meter tails?
Yes – it’s commonly used for splitting 100A meter tails to supply multiple consumer units.
How secure is the lid?
The lid is lockable and sealable, providing tamper resistance and compliance with DNO sealing requirements.
What cable sizes does it support?
The block accepts cables from 2.5 mm² to 35 mm² with a maximum load of 100A.
- Model: WTB5-BR
- Rated Current: 100A
- Connection Points: 5-way
- Suitable Cable Sizes: 2.5 mm² – 35 mm²
- Screw Type: Hexagon screw clamp
- Lid: Lockable & sealable
- Torque Setting: 3 Nm
- Colour: Brown (live)
Mount securely inside distribution boards or junction enclosures. Designed for neat and tamper-resistant cable management. Installation must be carried out by a qualified electrician.
- Torque all screws to 3 Nm
- Seal lid if required by DNO or site regulations
- Use blanking inserts for unused terminals
- Follow wiring colour conventions (brown = live)
