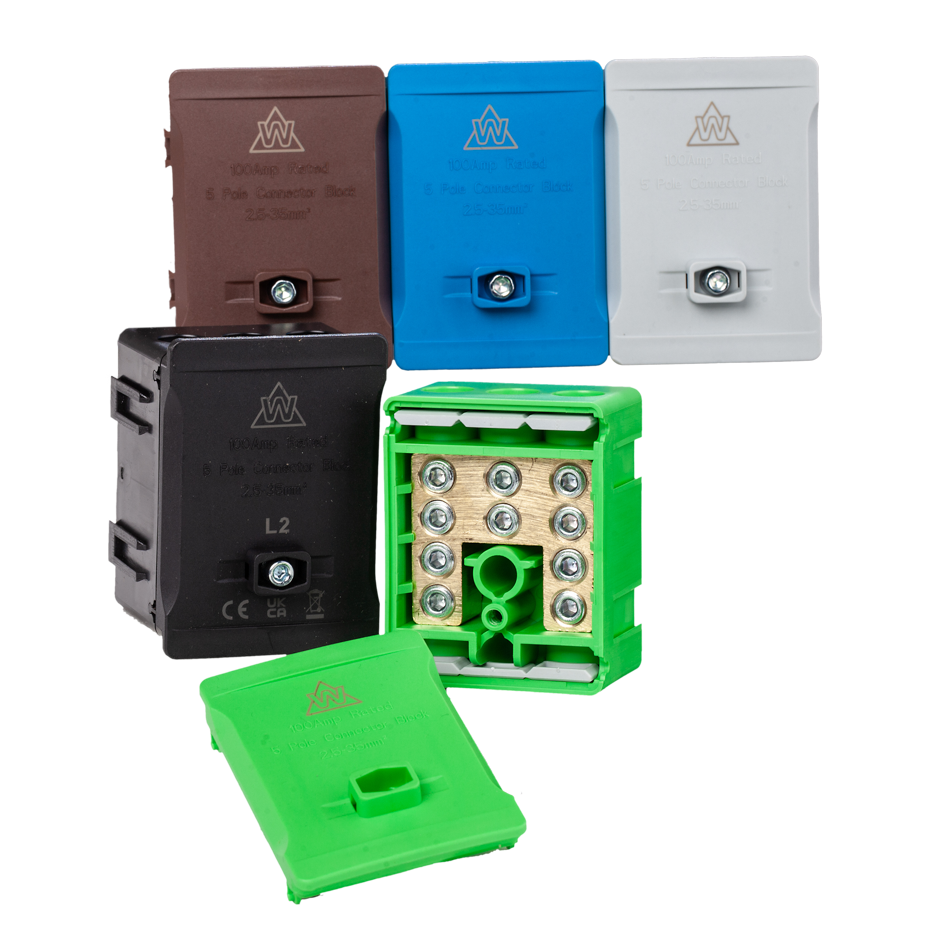

What Is a 100A Terminal Block Used For in a Consumer Unit?
A 100A terminal block provides a secure connection point for joining or distributing conductors within a consumer unit, distribution enclosure or other suitable electrical assembly. Rather than trying to terminate multiple conductors directly into a device that is not designed for them, a terminal block provides dedicated connection points for the conductors being joined or distributed.
They are particularly useful where an installation needs a neat, accessible way to manage higher-current conductors, split connections or organise incoming and outgoing wiring inside an enclosure.
👉 Browse 100A terminal blocks
Jump To:
What Is a Consumer Unit Terminal Block?
A terminal block is a component designed to provide a secure electrical connection between conductors. Depending on its design, it can either join conductors together or provide several connection points from a common electrical connection.
Within consumer units and electrical enclosures, terminal blocks can help organise wiring and provide a purpose-designed termination point where several conductors need to be connected.
A terminal block does not perform the same job as an MCB, RCD, RCBO or main switch. It is primarily a connection component rather than a circuit protection device.
What Is a 100A Terminal Block Used For?
A 100A terminal block can be used where a suitably rated connection or distribution point is required within an electrical installation.
Typical applications can include:
- Providing a common connection point for multiple conductors
- Distributing an incoming conductor to suitable downstream connections
- Organising line or neutral conductors within an enclosure
- Providing additional termination points where the equipment arrangement requires them
- Creating neat and accessible wiring arrangements within consumer units and distribution enclosures
The exact use depends on the terminal block design and the electrical arrangement. A block should never simply be added as a convenient way of joining cables without confirming that its rating, terminals and intended use are suitable.
Why Use a Terminal Block Instead of Putting Multiple Cables Into One Terminal?
Electrical equipment terminals are designed for specific conductor sizes, quantities and termination arrangements. Unless a terminal is designed to accept multiple conductors, simply placing additional cables into it is not an appropriate substitute for a purpose-designed distribution arrangement.
A suitable terminal block gives each conductor a defined termination point and can make the wiring arrangement easier to inspect, maintain and understand.
What Does a 5-Way Terminal Block Mean?
The number of ways generally refers to the number of connection positions provided by the terminal block.
For example, a 5-way terminal block provides multiple termination points that can be used as part of an appropriate distribution arrangement.
Power & Data UK's terminal block range includes 100A 5-way terminal blocks in different identification colours, allowing installers to select components that suit the conductor identification and configuration of the assembly.
The number of available ways should be selected around the actual wiring arrangement while allowing the conductors to be terminated correctly and securely.
Why Do Terminal Blocks Come in Different Colours?
Colour coding helps installers identify the intended function of conductors and connection points within an enclosure.
Power & Data UK stocks terminal blocks in several colours, including brown, blue, green and other identification colours, allowing the internal layout of an assembly to be organised appropriately.
Colour should support correct conductor identification, but it does not change the underlying electrical rating of the terminal block. The device specification still needs to be checked independently.
What Does the 100A Rating on a Terminal Block Mean?
The 100A rating identifies the terminal block's stated current rating under the conditions specified by its manufacturer.
It does not mean that every installation containing the block should carry 100 amps, nor does installing a 100A terminal block increase the capacity of the circuit.
The complete electrical arrangement still needs to be designed around factors including:
- Design current
- Protective device rating
- Conductor size and type
- Terminal capacity
- Supply arrangement
- Equipment manufacturer's instructions
- Applicable installation requirements
The terminal block therefore needs to have an appropriate rating for its intended duty rather than being treated as the component that determines the capacity of the entire installation.
Where Does a Terminal Block Go in a Consumer Unit?
The exact position depends on the design of the consumer unit or enclosure and the purpose of the terminal block.
It may be installed where a suitable internal connection or distribution point is required, provided there is adequate space and the arrangement complies with the requirements of the assembly and its manufacturer.
Good enclosure layout matters. Conductors should be routed so that terminations remain secure and accessible without creating unnecessary strain, overcrowding or interference with other equipment.
This is particularly important in compact consumer units where main switches, RCBOs, RCDs, SPDs and other modular equipment can already occupy much of the available space.
Terminal Block vs Busbar: What's the Difference?
Both components can form part of an electrical distribution arrangement, but they are not automatically interchangeable.
A terminal block provides connection points for conductors. A busbar is generally used to create a common electrical connection across multiple devices or connection points.
| Component | Primary Purpose | Typical Form |
|---|---|---|
| Terminal block | Provides secure conductor termination and connection points | Block containing multiple terminals |
| Busbar | Provides a common electrical connection across compatible equipment | Conductive bar with pin, fork or other compatible connections |
The appropriate component depends on what needs to be connected and the design of the equipment being used.
Does a 100A Terminal Block Provide Circuit Protection?
No. The 100A rating should not be confused with an overcurrent protective-device rating.
A terminal block does not replace an MCB, fuse, RCBO, RCD or other protective device required by the installation. Its purpose is to provide an electrical termination or distribution point.
This distinction is important because a terminal block may form part of a 100A-rated arrangement while protection against overload and fault current is provided elsewhere in the installation.
How Do You Choose the Right Terminal Block?
Before selecting a terminal block for a consumer unit or enclosure, check:
- Current rating required by the application
- Number of connection ways required
- Conductor sizes that need to be terminated
- Number of conductors per terminal permitted by the manufacturer
- Conductor type accepted by the terminal
- Identification or colour required within the assembly
- Available enclosure space
- Mounting arrangement and compatibility
For higher-current connections, correct conductor preparation and tightening are particularly important. Poor terminations can create increased resistance and unwanted heating at the connection point.
Compare terminal blocks from Power & Data UK
Where Else Are 100A Terminal Blocks Used?
Although commonly associated with consumer units and distribution equipment, terminal blocks can be useful in a wider range of suitable electrical enclosures where rated conductor distribution or connection is required.
Applications can include:
- Consumer units
- Distribution boards
- Metering and isolation enclosures
- Control enclosures
- Custom electrical assemblies
- Suitable EV, renewable and auxiliary distribution equipment
The important point is that the terminal block is selected as part of the complete assembly rather than in isolation from the conductors, protection and enclosure around it.
100A Terminal Block FAQs
What is a 100A terminal block?
A 100A terminal block is an electrical connection component with a stated 100A current rating. It provides one or more secure termination points for conductors within a suitable electrical assembly.
What is a terminal block used for in a consumer unit?
It can provide a dedicated connection or distribution point for conductors inside the consumer unit or enclosure, depending on the design of the installation.
What does a 5-way terminal block mean?
A 5-way terminal block provides multiple connection positions. The exact internal connection arrangement should always be confirmed from the manufacturer's specification.
Can you put two cables into the same terminal block connection?
Only where the terminal manufacturer permits the number, size and type of conductors being connected. Physical fit alone does not confirm that a multiple-conductor termination is suitable.
Is a terminal block the same as a busbar?
No. A terminal block primarily provides conductor termination points, while a busbar is used to provide a common electrical connection across compatible equipment or connection points.
Does a 100A terminal block protect a 100A circuit?
No. A terminal block is a connection component rather than an overcurrent protective device. Appropriate circuit protection must be provided separately as required by the installation.
Can a 100A terminal block be used with 25mm² cable?
That depends on the specific terminal block. Check the manufacturer's stated conductor capacity rather than assuming that every 100A terminal block accepts the same cable sizes.
Why are terminal blocks different colours?
Different colours can help identify conductor functions and connection arrangements inside an enclosure. The correct identification should be used for the installation, while the terminal block's electrical rating and conductor capacity must also be checked separately.
Power & Data UK supplies terminal blocks and electrical distribution accessories for consumer units, distribution boards and custom electrical assemblies. Browse our range of 100A terminal blocks to find the correct configuration for your installation.
👉 Shop 100A terminal blocks
Final Thoughts
A 100A terminal block is a relatively simple component, but it can play an important role in creating a safe, organised and practical wiring arrangement inside a consumer unit or electrical enclosure.
Its job is to provide a suitably rated connection or distribution point for conductors. It does not replace the MCB, RCBO, fuse, RCD or other protective devices required by the circuit.
When choosing a terminal block, don't focus on the 100A rating alone. Check the number of ways, permitted conductor sizes, terminal capacity, identification and compatibility with the enclosure before specifying the component.
For installations requiring multiple high-current connection points, a correctly selected terminal block can provide a much cleaner solution than trying to accommodate conductors within terminals that were never designed for that purpose.
Browse the full terminal block range from Power & Data UK for suitable options for consumer units, distribution equipment and custom electrical assemblies.
