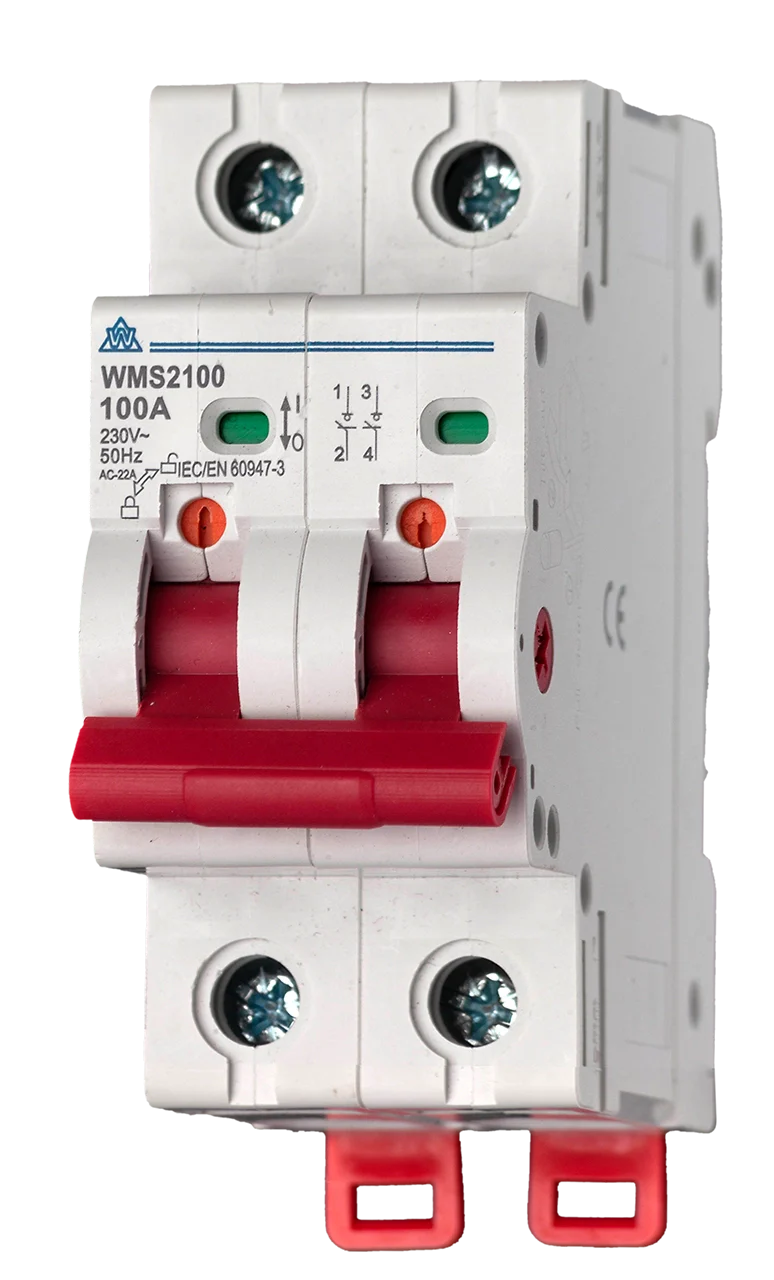

A main switch is one of the most fundamental components in any consumer unit or distribution board. It acts as the primary isolator, allowing the entire installation - or a section of it - to be safely switched off when required.
It is often confused with meter isolators and other switching devices, but the role of a main switch is very specific. It sits within the installation itself, not at the supply boundary, and is used for safe isolation, maintenance and emergency shutdown.
If you are selecting equipment for an install, it is important to understand where a main switch fits compared to meter isolators, consumer units and RCD protection devices.
Quick Answer: A main switch is the primary isolator inside a consumer unit or distribution board. It allows you to disconnect all live conductors to safely isolate the installation. You need one in almost every modern board to provide safe shutdown for maintenance, testing and emergency situations.
| Device | Location | Purpose |
|---|---|---|
| Main Switch | Inside consumer unit / board | Isolates the installation |
| Meter Isolator | Between meter and CU | Allows safe work on the consumer unit |
| RCD / RCBO | Within circuits | Provides fault protection |
🧭 Jump to:
What Does a Main Switch Actually Do?
A main switch allows you to disconnect all live conductors supplying a consumer unit or distribution board. In a single-phase system, this usually means isolating both line and neutral, while in three-phase systems it may involve 3-pole or 4-pole isolation.
It does not provide fault protection. Its job is purely safe isolation.
- Used during maintenance and inspection
- Provides emergency shut-off
- Required for safe working procedures
- Forms the starting point of most boards
When Do You Actually Need a Main Switch?
In practice, you need a main switch in almost every installation where a consumer unit or distribution board is installed.
- Domestic consumer units - standard requirement
- EV charger boards - used for local isolation
- Sub-distribution boards - allows isolation of downstream circuits
- Three-phase systems - required for full system isolation
Even where additional protection devices are present, the main switch remains the core isolation point.
Main Switch vs Meter Isolator - What’s the Difference?
This is one of the most common areas of confusion.
A meter isolator is installed between the electricity meter and the consumer unit, allowing safe work on the installation without needing to pull the main fuse.
A main switch, on the other hand, sits inside the consumer unit or board and isolates the installation itself.
If you are unsure which you need, see our full comparison here: Main Switch vs Meter Isolator.
Common Installation Setups
| Setup | Main Switch Role |
|---|---|
| Standard domestic CU | Primary isolation for entire installation |
| EV charger board | Local isolation for charger circuit |
| Sub-main distribution board | Allows isolation of downstream circuits |
Common Mistakes to Avoid
- Confusing a main switch with a protective device - it does not provide fault protection
- Assuming a meter isolator replaces a main switch - they serve different purposes
- Using incorrect pole configuration - especially on three-phase systems
- Forgetting local isolation on sub-boards
Products & Categories to Consider
- Main Switch Units: 4 Pole Main Switch Enclosure
- Meter Isolation: 100A Meter Isolator
- Enclosures: Meter Isolation & Changeover Range
FAQs
Is a main switch mandatory in a consumer unit?
Yes, in most installations a main switch is required to provide safe isolation of the installation.
Does a main switch provide protection?
No. It only isolates the supply. Protection is provided by devices such as RCBOs or RCDs.
Can a meter isolator replace a main switch?
No. A meter isolator sits upstream and is used for safe access to the consumer unit, while the main switch isolates the installation itself.
Final Word
A main switch is a simple but essential part of any electrical installation. It provides the ability to safely isolate the system, making maintenance, testing and emergency shutdown possible.
It is not a protective device, and it does not replace meter isolation. But without it, safe operation and compliance become much harder.
