Busbar - Forked & Pin Type, 1 - 4 Pole, 100A
The WCED 100A Busbar range provides a reliable, safe, and efficient way of distributing power across modular consumer units and distribution boards. Designed for compatibility with Whitecliffe products, these busbars reduce wiring complexity and ensure consistent load sharing across connected devices. Available in both Forked and Pin Type designs, and...
The WCED 100A Busbar range provides a reliable, safe, and efficient way of distributing power across modular consumer units and distribution boards. Designed for compatibility with Whitecliffe products, these busbars reduce wiring complexity and ensure consistent load sharing across connected devices.
Available in both Forked and Pin Type designs, and in 1–4 pole options, this range covers everything from single-phase to three-phase installations:

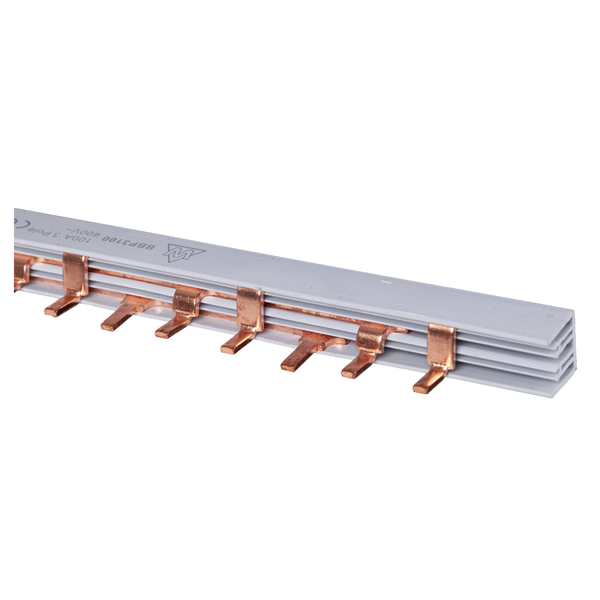

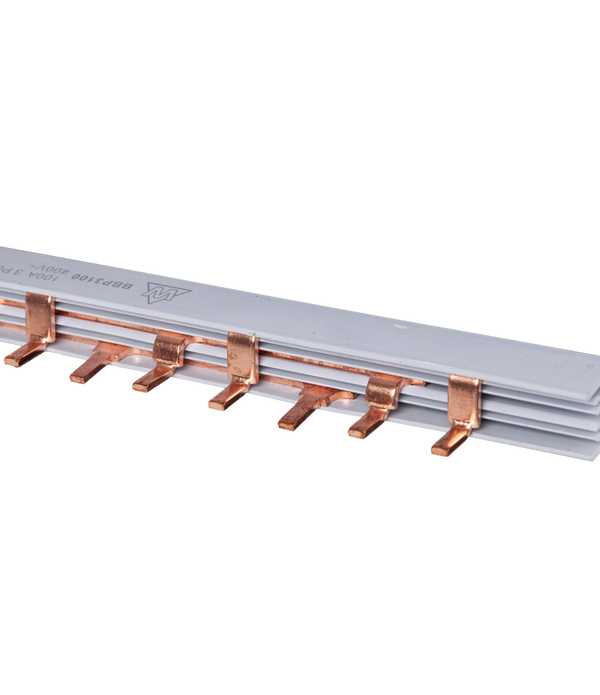

- Pin Type Variants: 1 Pole (BBP1100), 2 Pole (BBP2100), 3 Pole (BBP3100), 4 Pole (BBP4100)

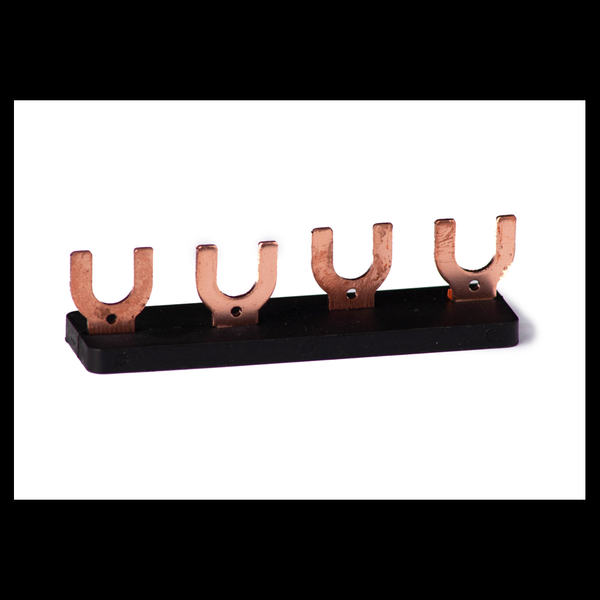

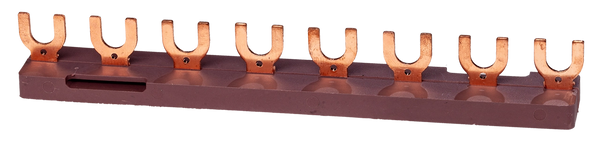

- Forked Type Variants: 1 Pole (BBF1100), 2 Pole (BBF2100), 3 Pole (BBF3100), 4 Pole (BBF4100)
Each busbar is 1 metre in length and rated at 100A, making them suitable for both residential and commercial systems. Whether you’re extending power across a small board or a multi-phase installation, these busbars offer a neat, durable, and professional solution.
What is the difference between Pin and Fork Type busbars?
Pin Type busbars use solid pins that slot into device terminals, while Forked Type busbars have pronged ends that fit around terminal screws. Your choice depends on the breaker or device terminal design.
Are these busbars suitable for three-phase installations?
Yes – the 3 Pole and 4 Pole variants are designed for three-phase boards, while 1P and 2P versions suit single-phase or dual-phase systems.
Can the busbars be cut to size?
Yes, each busbar is supplied in a 1m length and can be cut down as needed. Ensure cut ends are insulated to maintain safety.
What ratings are available?
All busbars in this range are rated to 100A and available in both Pin and Fork designs, across 1P–4P variants.
- Current Rating: 100A
- Poles: 1–4 pole options
- Types: Pin or Fork
- Length: 1 metre
- Compatibility: Designed for Whitecliffe consumer units and distribution boards
- Conforms to IEC/EN standards
- Durable copper construction for long service life
- Improved connection security and reduced wiring complexity
- Ensure correct selection of Forked or Pin Type to suit the terminal arrangement of your devices.
- Cut to size if required for smaller consumer units – ensure ends are insulated after cutting.
- Always de-energise circuits before installing or modifying busbars.
- Torque terminals correctly as per manufacturer guidance to maintain safe, reliable connections.
- Install in compliance with BS 7671 Wiring Regulations.
