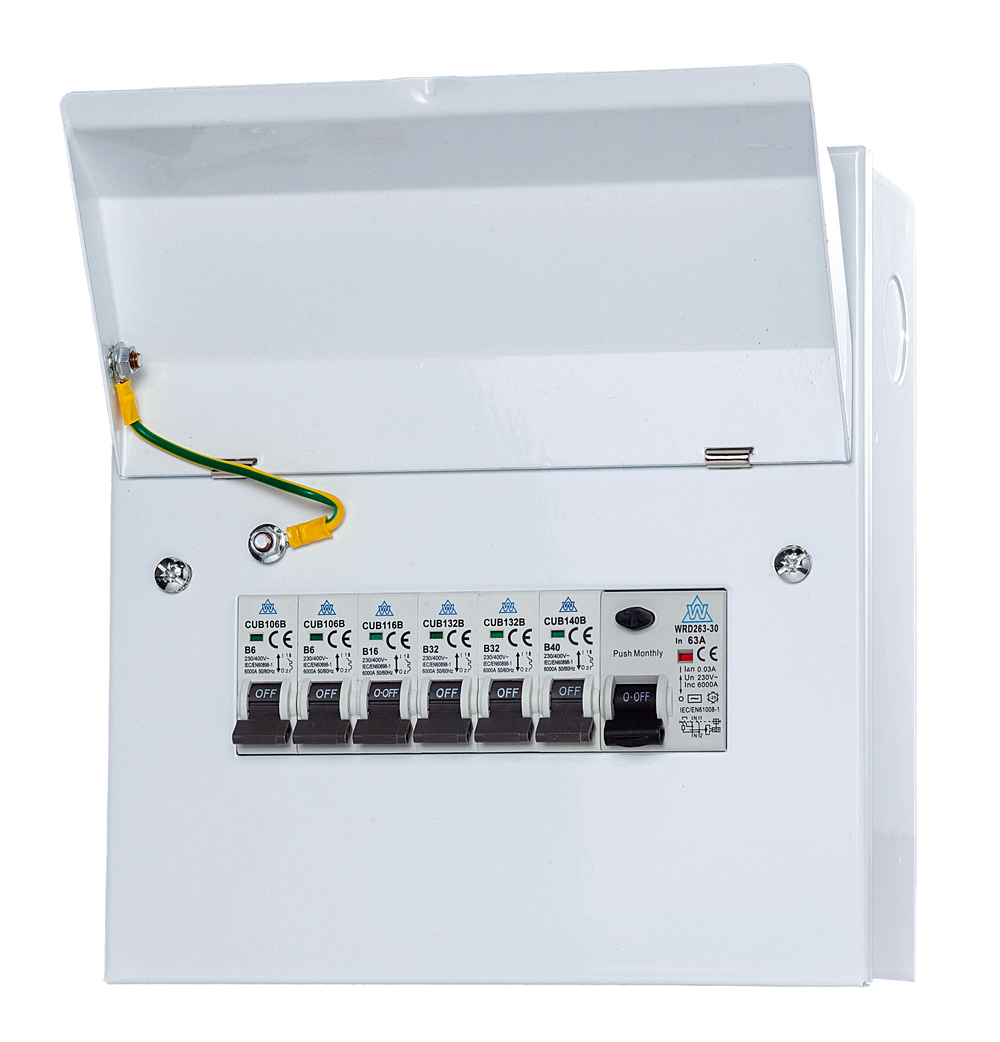

6 Usable Way Consumer Unit with 63A RCD & 6 MCBs (WMCURC8/6)
£80.00
ex VAT
£96.00 inc VAT
SKU: WMCURC8/6
The WMCURC8/6 six usable way consumer unit brings a 63A RCD and six MCBs of your choice together in a steel enclosure with a drop-down lid. It gives installers a supplied board configuration to match their circuit schedule, reducing the need to source the enclosure and each protective device separately....
Read full descriptionAccepted payment methods
Description
The WMCURC8/6 six usable way consumer unit brings a 63A RCD and six MCBs of your choice together in a steel enclosure with a drop-down lid. It gives installers a supplied board configuration to match their circuit schedule, reducing the need to source the enclosure and each protective device separately.
Choose this board when the installation design calls for six outgoing circuits protected by MCBs behind a shared RCD. The six usable ways refer to the outgoing circuit positions; the fitted RCD is additional to those six positions.
What this configuration gives you
- 63A RCD incomer: residual current protection for the connected circuit group.
- Six selectable MCBs: match each outgoing breaker rating and trip curve to the circuit design.
- Steel enclosure with drop-down lid: the board and devices are supplied together for an organised installation.
- A defined six-circuit layout: useful when matching a small distribution board to an agreed circuit schedule.
The MCBs provide overcurrent protection; the shared RCD provides residual current protection. An RCD trip can disconnect all circuits it supplies. Where continuity of other circuits matters, discuss a board with individual RCBO protection before ordering.
Specify your six MCBs before ordering
Before placing the order, contact Power & Data UK quoting WMCURC8/6. Send the required rating and trip curve for each of the six circuits, the quantity of boards and your required delivery date. Confirm the RCD type and sensitivity, enclosure dimensions and any additional protection required as part of that specification.
Compare six-way and smaller consumer units
| Product | Supplied configuration | Choose when |
|---|---|---|
| WMCURC8/6 — this product | 63A RCD + six MCBs; six usable outgoing ways | The circuit design calls for a shared RCD and six MCB-protected circuits. |
| WMCU08/6 | Main switch + six MCBs; six usable outgoing ways | A main-switch-and-MCB configuration is specified, with residual current protection addressed in the installation design. |
| WMCURC6/4 | RCD + four MCBs; four usable outgoing ways | Only four outgoing circuits are needed in an RCD-equipped board. |
Need surge protection, individual RCBOs or a different number of circuits? Ask about a board built to your circuit schedule. You can also browse the consumer unit range to compare other supplied configurations.
Technical specs
- Product code: WMCURC8/6
- Usable outgoing ways: six, supplied with six MCBs
- Incoming device: 63A RCD
- MCB selection: ratings and trip curves to be agreed before ordering
- Enclosure: steel with drop-down metal lid
- Supplied protection arrangement: shared RCD with individual MCBs; individual RCBOs and an SPD are not listed as included
- Details to confirm for the supplied build: RCD type and sensitivity, enclosure dimensions, IP rating and assembly documentation
Installation notes
Installation, circuit selection and commissioning must be carried out by a qualified electrician using the instructions for the supplied assembly.
- Agree the six MCB ratings and trip curves, RCD type and sensitivity, and any additional protection before ordering.
- Check the incoming supply, load assessment, overcurrent protection and coordination of protective devices.
- Account for the effect of a shared RCD trip on the circuits it supplies.
- Confirm the enclosure dimensions and suitability for the mounting environment.
- Follow the supplied wiring and torque instructions; complete inspection, testing and circuit labelling before handover.
FAQs
What is included with WMCURC8/6?
A steel consumer unit with a drop-down lid, a 63A RCD and six MCBs of your choice. Agree the MCB schedule before ordering so the supplied devices match the circuit design.
Does six usable ways mean six spare ways?
No. It means six outgoing circuit positions, supplied with six MCBs. It does not mean there are six unused positions remaining after the devices are fitted.
How do I choose the MCB ratings?
Please contact Power & Data UK before ordering, quoting WMCURC8/6 and the rating and trip curve required for each circuit. Your electrician should specify the devices from the connected loads, cables and installation conditions.
Will an RCD trip switch off every circuit?
A trip of the shared RCD disconnects the circuits supplied through it. If the project needs individual residual current protection for each circuit, ask about an RCBO configuration.
Are surge protection or RCBOs included?
They are not listed in this configuration. Discuss any additional protection before ordering so the enclosure capacity and complete assembly can be checked together.
Can this be fitted in a garage or outbuilding?
Suitability depends on the environment and the circuit design. Confirm the required enclosure protection, mounting conditions, RCD specification and dimensions before choosing it for the location.
