4 Pole MCB 10kA C Curve 100A WKC4100C
The WCED WKC4100C is a 4 Pole 100A MCB with a C curve tripping characteristic and a 10kA breaking capacity. Designed for high-demand installations, it provides reliable protection against overloads and short-circuits while also serving as an isolator when required. Commonly used in EV charging systems, solar installations, motor circuits,...
The WCED WKC4100C is a 4 Pole 100A MCB with a C curve tripping characteristic and a 10kA breaking capacity. Designed for high-demand installations, it provides reliable protection against overloads and short-circuits while also serving as an isolator when required.
Commonly used in EV charging systems, solar installations, motor circuits, and lighting distribution, this breaker is engineered for resilience and compliance with UK standards. It’s suitable for both domestic and commercial distribution boards.
- 4 Pole, 100A rated MCB
- C Curve tripping – suitable for circuits with higher inrush currents
- 10kA breaking capacity
- Provides overload and short-circuit protection
- Can be used for switching and isolation
- Dimensions: 116mm (W) x 80mm (H) x 66mm (D)
- Complies with BS EN 60898-1

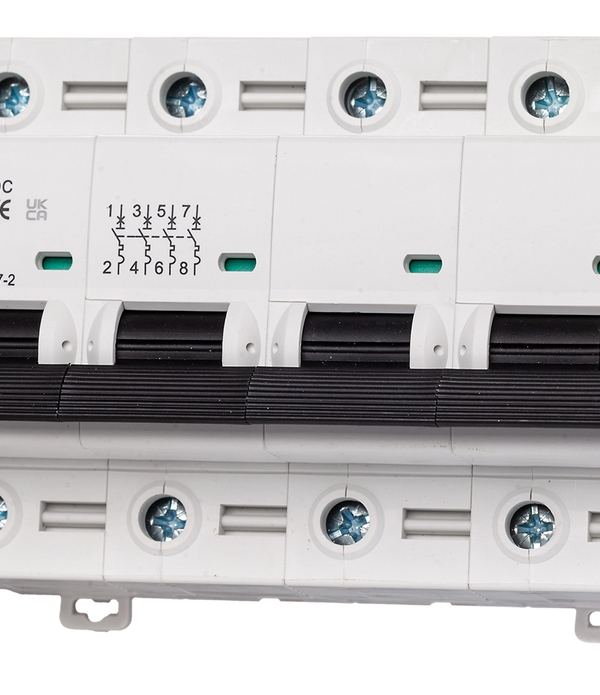

Note: Image shown is illustrative.
What is a 100A 4 Pole MCB used for?
It is typically used in three-phase circuits for EV chargers, solar inverters, motors, and lighting systems that require high-current protection with full pole isolation.
Why use a C curve MCB?
C curve breakers are designed to handle higher inrush currents, making them suitable for motor loads, EV chargers, and circuits with equipment that draws more current at start-up.
Can this breaker be used as an isolator?
Yes. In addition to overload and short-circuit protection, the WKC4100C can also function as a manual isolator for maintenance and testing.
Does this product comply with UK standards?
Yes. It is tested and certified to BS EN 60898-1, meeting all requirements for use in UK electrical installations.
- Type: Miniature Circuit Breaker (MCB)
- Poles: 4 Pole
- Rated Current: 100A
- Trip Curve: C Curve
- Breaking Capacity: 10kA
- Standards: BS EN 60898-1
- Functions: Overload protection, short-circuit protection, isolation
- Dimensions (WxHxD): 116 x 80 x 66mm
The WKC4100C is designed for use in high-load distribution boards. Installation must be carried out by a qualified electrician in line with BS 7671 (18th Edition) requirements.
- Ensure correct cable sizing and load matching
- Suitable for EV, solar, lighting, and motor circuits
- C Curve – recommended for loads with higher inrush currents
- Mounts directly on 35mm DIN rail
