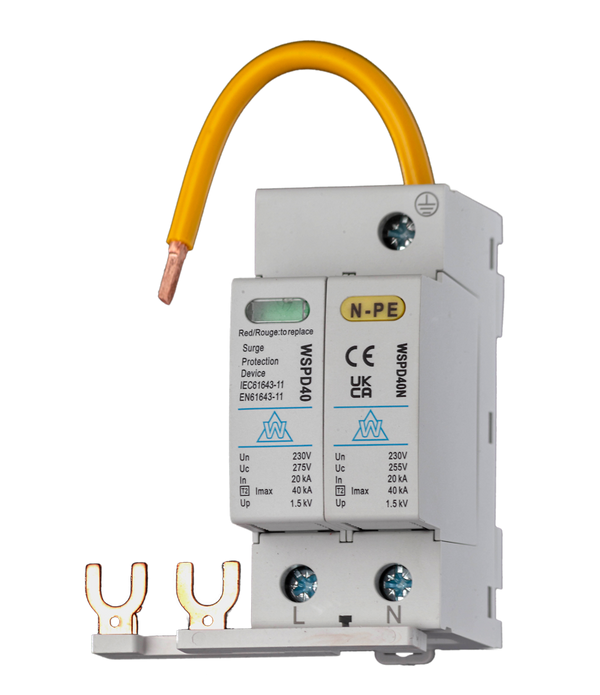

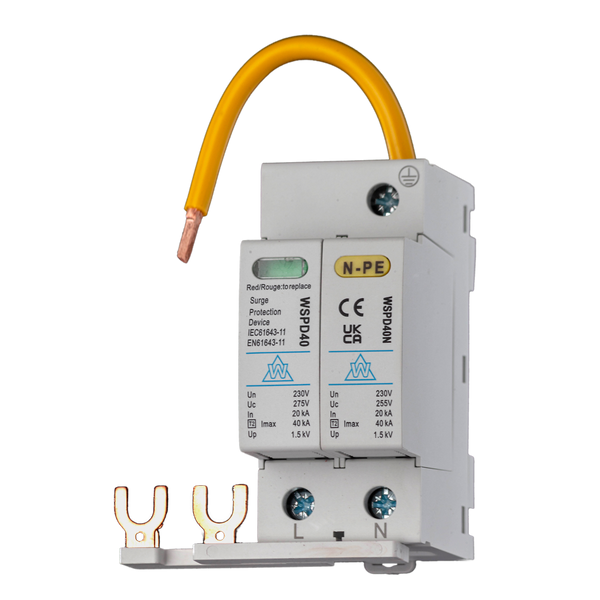

Surge Protection Device with Forked Busbars WSPD240Kit2
The WSPD240KIT2 is a 2-pole Type 2 Surge Protection Device supplied with forked busbars and an earth lead for a fast, tidy install. Rated at 40kA, it protects against transient overvoltages from lightning strikes and switching surges that can damage sensitive electronics. Fully compliant with BS 7671 and 18th Edition...
The WSPD240KIT2 is a 2-pole Type 2 Surge Protection Device supplied with forked busbars and an earth lead for a fast, tidy install. Rated at 40kA, it protects against transient overvoltages from lightning strikes and switching surges that can damage sensitive electronics.
Fully compliant with BS 7671 and 18th Edition wiring regulations, this SPD kit is a complete solution for residential, commercial, and light industrial installs where neatness and compliance matter.
- Complete kit: Includes Type 2 SPD, forked busbars, and earth lead
- 2-pole design: Protects live and neutral conductors
- High surge capacity: 20kA nominal, 40kA maximum discharge
- Neat wiring: Forked busbars free up terminal space
- Standards compliant: BS 7671 & 18th Edition ready
What’s included in this SPD kit?
The WSPD240KIT2 comes with a Type 2 40kA SPD, forked busbars, and an earth lead for quick installation.
What type of systems is this SPD suitable for?
It’s designed for 230V systems using TT or TN-S earthing arrangements.
Why are forked busbars useful?
They allow you to wire the SPD neatly while keeping terminals free, saving time and space during installation.
- Type: Type 2 SPD
- Poles: 2P (L + N)
- Nominal discharge current (In): 20kA
- Max discharge current (Imax): 40kA
- Voltage rating: 230V AC
- Accessories: Supplied with forked busbars + earth lead
- Mounting: 2 modules, DIN rail
- Earthing system: TT, TN-S
- Compliance: BS 7671, 18th Edition
- SKU: WSPD240KIT2
Install the SPD kit directly on the DIN rail of the consumer unit or distribution board. Use the supplied forked busbars and earth link to keep wiring clean and terminals accessible. Always follow 18th Edition guidance for surge protection placement.
- Clip into a 2-module DIN rail slot
- Use forked busbars to simplify connections
- Ensure earth lead is securely bonded
- Install only by a qualified electrician
