What Is a 2-Pole MCB? Double-Pole MCBs Explained
A 2-pole MCB, also called a double-pole MCB, has two mechanically linked poles that operate together. On a typical single-phase circuit, those poles can be used to switch the line and neutral conductors simultaneously.
That makes a 2-pole breaker useful where the circuit design calls for both conductors to be disconnected together rather than interrupting the line conductor only.
Quick answer: A 2-pole MCB is a miniature circuit breaker with two linked switching poles. On a single-phase circuit, it is commonly used to switch line and neutral together. The MCB still provides overcurrent and short-circuit protection, while the second pole allows both conductors to be disconnected simultaneously where the circuit arrangement requires it.
A 2-pole MCB should not automatically be treated as a replacement for a dedicated isolator, RCD or RCBO. The correct device depends on the protection and isolation requirements of the circuit.
Browse the full range of 2-Pole MCBs, or compare them with our wider MCB range.
| Device | Switched Poles | Typical Single-Phase Arrangement |
|---|---|---|
| Single-pole MCB | 1 | Line conductor switched |
| 2-pole / double-pole MCB | 2 | Line and neutral switched together |
Jump To:
What Is a 2-Pole MCB?
A 2-pole MCB is a miniature circuit breaker containing two mechanically linked switching poles.
Both poles operate together when the breaker is manually switched or when the device operates according to its design.
On a common single-phase arrangement, those two poles are used for:
- Line (L)
- Neutral (N)
This means both conductors can be disconnected together rather than leaving the neutral connected when the line is switched.
The device still performs the core job of an MCB: protecting the circuit against overload and short-circuit current.
Does a 2-Pole MCB Switch Phase and Neutral?
On a typical single-phase installation, yes. A 2-pole MCB can be used to switch the line and neutral conductors together.
This is one of the main reasons installers choose a double-pole breaker rather than a standard single-pole device.
| Conductor | Single-Pole MCB | 2-Pole MCB |
|---|---|---|
| Line | Switched | Switched |
| Neutral | Normally remains connected | Can be switched simultaneously |
Exactly how the poles are protected and switched depends on the specific device design, so always check the manufacturer's technical information before specifying it.
Single-Pole vs Double-Pole MCB: What Is the Difference?
The main difference is the number of conductors switched by the device.
- Single-pole MCB: switches one conductor, normally line.
- Double-pole / 2-pole MCB: switches two conductors together, commonly line and neutral on a single-phase circuit.
That does not mean a double-pole MCB is automatically “better”. It simply provides a different switching arrangement.
A standard domestic final circuit may be perfectly suited to a single-pole protective device, while another installation may require or benefit from simultaneous line and neutral disconnection.
Key point: Choose the pole configuration around the circuit and isolation requirements. Do not substitute a 2-pole breaker simply because it appears to provide “more protection”.
Can You Use a 2-Pole MCB on Single-Phase?
Yes. In fact, single-phase circuits are one of the most common applications for 2-pole MCBs.
A standard single-phase supply has a line and neutral conductor, so a two-pole device can switch both simultaneously.
This should not be confused with a “2-phase MCB”. A 2-pole MCB describes the number of switching poles, not necessarily the number of electrical phases.
- 2-pole = two switched poles
- Single-phase + neutral = common application for a 2-pole device
- Three-phase circuits generally require a different pole arrangement appropriate to the circuit
This distinction is particularly useful when searching specifications, because terms such as “2P”, “DP” and “double pole” commonly refer to the same basic two-pole format.
When Do You Need a 2-Pole MCB?
A 2-pole MCB is used where the circuit design calls for simultaneous switching of two conductors and overcurrent protection is also required.
Typical applications may include:
- Single-phase circuits where line and neutral need simultaneous disconnection
- Distribution circuits designed around double-pole protection
- Equipment where the manufacturer specifies a double-pole protective device
- TT installations where the required isolation arrangement includes neutral disconnection
- Specialist plant, renewable or equipment supplies where the circuit design calls for both conductors to be switched
However, the application itself does not automatically determine the pole count.
For example, being an outdoor circuit, heat-pump circuit or EV circuit does not by itself mean “fit a 2-pole MCB”. The protective arrangement must be designed around the earthing system, equipment requirements, RCD or RCBO requirements and the means of isolation being provided.
Why Does Double-Pole Isolation Matter on TT Systems?
TT installations are one of the situations where neutral disconnection becomes particularly relevant.
For isolation on a TT system, the neutral cannot simply be assumed to remain at earth potential in the same way as a reliably earthed neutral conductor in certain TN arrangements. The isolation strategy therefore needs to account for the neutral conductor.
A double-pole protective device can form part of that arrangement where the particular device and circuit design make it suitable.
That does not mean every circuit in a TT installation automatically requires its own 2-pole MCB. The overall installation and means of isolation still need to be considered.
Is a 2-Pole MCB the Same as a Double-Pole Isolator?
No. They can both switch two conductors, but they are designed primarily for different jobs.
| Device | Primary Function |
|---|---|
| 2-Pole MCB | Overcurrent / short-circuit protection with two-pole switching |
| Double-pole isolator | Isolation / switching of two conductors |
Some protective devices are suitable for isolation as well, but that should be confirmed from the relevant product standard and manufacturer data rather than assumed simply because the breaker has two poles.
Where the job specifically requires an isolation device, browse our Main Switches & Rotary Isolators.
2-Pole MCB vs Double-Pole RCBO
A 2-pole MCB and a double-pole RCBO may look similar, but the protection they provide is different.
- MCB: protects against overload and short-circuit current.
- RCBO: combines overcurrent protection with residual-current protection.
If a circuit also requires RCD protection, installing a 2-pole MCB alone does not provide that residual-current protection.
Depending on the circuit, the correct solution may therefore be:
- A 2-pole MCB with separate RCD protection
- A suitable RCBO
- A dedicated isolator plus the required circuit protection
The choice depends on the complete protection arrangement rather than simply whether line and neutral need switching.
Compare our RCBO range where combined residual-current and overcurrent protection is needed.
How to Choose the Right 2-Pole MCB
If the circuit calls for a 2-pole MCB, the pole count is only the first part of the specification.
You also need to check:
- Rated current – for example 16A, 20A, 32A, 40A or 50A
- Trip curve – typically B or C depending on the load and circuit design
- Breaking capacity – such as 6kA or 10kA
- Voltage rating
- Terminal capacity
- Manufacturer compatibility
- Whether the device is suitable for the required isolation duty
Power & Data UK stocks a dedicated range of 2-Pole MCBs, including B-curve and C-curve 10kA options across multiple current ratings.
Installer shortcut: Start with the required pole arrangement, then select the current rating, curve and breaking capacity around the circuit design.
2-Pole MCB Options
Our 2-pole range includes multiple current ratings and trip curves for circuits requiring simultaneous two-pole switching.
- 16A 2-Pole 10kA MCB – B Curve
- 16A 2-Pole 10kA MCB – C Curve
- 20A 2-Pole 10kA MCB – C Curve
- 32A 2-Pole 10kA MCB – B Curve

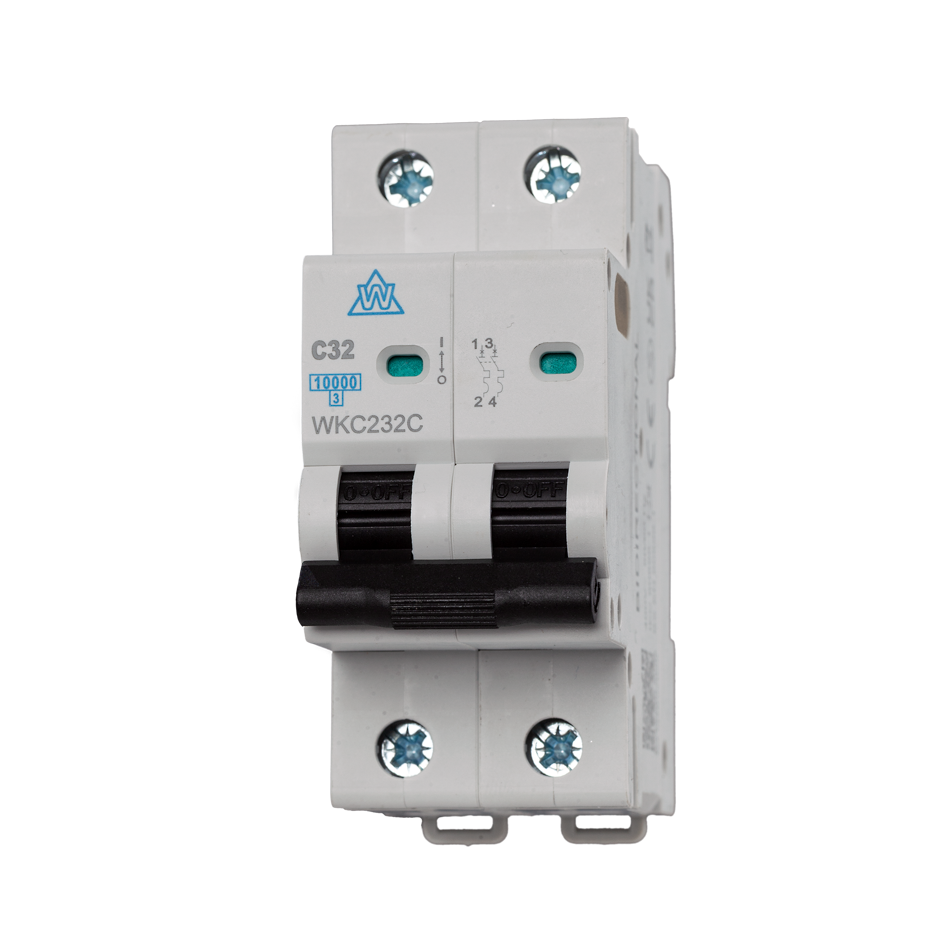

- 32A 2-Pole 10kA MCB – C Curve
- 40A 2-Pole 10kA MCB – B Curve
- 40A 2-Pole 10kA MCB – C Curve
- 50A 2-Pole 10kA MCB – C Curve
I have removed the broken 10A 2-Pole 10kA C-Curve MCB link rather than replacing it with another unverified product URL.
2-Pole MCB FAQs
What is a 2-pole MCB?
A 2-pole MCB is a miniature circuit breaker with two mechanically linked switching poles. On a typical single-phase circuit, the two poles can be used to switch line and neutral together.
What is a double-pole MCB?
A double-pole MCB is another name commonly used for a 2-pole MCB. It has two linked switching poles rather than the single switched pole found on a standard single-pole MCB.
Can you use a 2-pole MCB on single-phase?
Yes. Single-phase line and neutral circuits are a common application for 2-pole MCBs where simultaneous disconnection of both conductors is required.
Does a 2-pole MCB switch the neutral?
On a typical single-phase line-and-neutral arrangement, one pole can switch the line and the other the neutral. Always confirm the device wiring and manufacturer instructions.
What is the difference between single-pole and double-pole MCBs?
A single-pole MCB switches one conductor, normally line. A double-pole MCB has two linked poles and can switch line and neutral together on a single-phase circuit.
Does a double-pole MCB provide RCD protection?
No. An MCB provides overcurrent and short-circuit protection. If residual-current protection is required, that must be provided by a suitable RCD or RCBO arrangement.
Is a 2-pole MCB the same as an isolator?
No. A 2-pole MCB is primarily an overcurrent protective device. A switch-disconnector or isolator is designed specifically for switching and isolation. Some breakers may also be suitable for isolation, but this must be confirmed from the device specification.
Do TT systems need double-pole isolation?
The neutral needs to be accounted for when providing isolation on a TT installation. A double-pole device can form part of that arrangement where suitable, but this does not mean every individual circuit automatically requires a 2-pole MCB.
What amp 2-pole MCB do I need?
The current rating is selected from the circuit design, cable capacity, load and required protective characteristics. The fact that a breaker is 2-pole does not determine whether it should be 16A, 20A, 32A, 40A or another rating.
What is the difference between B-curve and C-curve 2-pole MCBs?
The curve relates to the magnetic operating characteristic of the breaker. B-curve devices suit circuits with lower inrush current, while C-curve devices tolerate higher starting currents. The correct curve must still satisfy the circuit's fault and disconnection requirements.
Final Word
A 2-pole MCB is simply an MCB with two mechanically linked poles. On a typical single-phase circuit, that allows line and neutral to be switched together.
The important distinction is that pole count describes the switching arrangement. It does not by itself tell you whether the device provides RCD protection, whether it is the correct means of isolation, or whether it suits a particular load.
- Single-pole MCB: normally switches line only.
- 2-pole MCB: can switch line and neutral together.
- RCBO: adds residual-current protection.
- Isolator: is specifically selected for isolation and switching duties.
