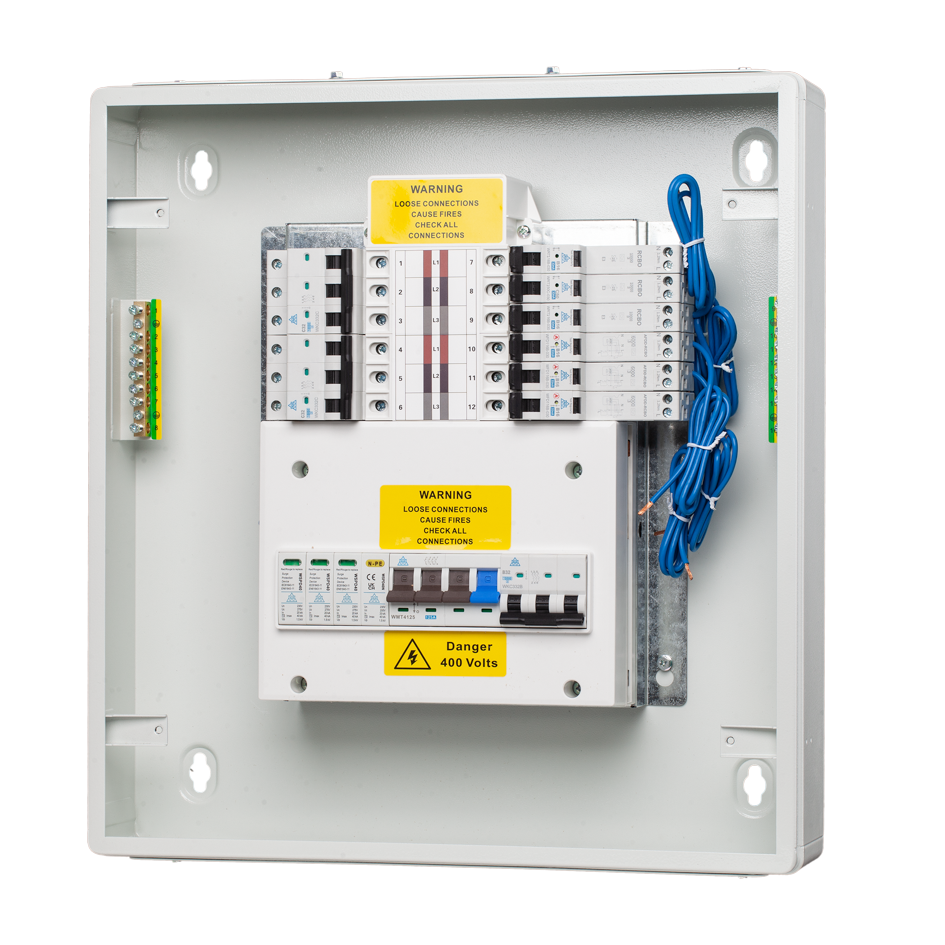

What Size Three-Phase Distribution Board Do You Need?
Choosing the right three-phase distribution board size is not simply a case of counting how many circuits need to be connected. The board needs enough usable ways for the outgoing circuits, space for the required protective devices and sensible capacity for future expansion.
A small commercial installation may only require a compact 4-way or 6-way TPN board, while a larger workshop, industrial unit or multi-circuit installation may need 8, 12, 16, 24 ways or more.
👉 Browse three-phase TPN distribution boards
Jump To:
What Does the Number of Ways Mean on a Three-Phase Distribution Board?
The number of ways describes the outgoing circuit positions available within the distribution board. On a TPN (three-phase and neutral) board, each way provides positions across the three phases.
This is different from the way count on a typical single-phase consumer unit, so it is important not to compare the two directly.
A three-phase circuit normally requires a multi-pole protective device spanning the relevant phases, while single-phase circuits can be distributed across L1, L2 and L3 as appropriate to the installation design.
What Size Three-Phase Distribution Boards Are Available?
Three-phase distribution boards are available in different sizes to suit anything from relatively small commercial installations to larger multi-circuit systems.
Common TPN board sizes include:
| Board Size | Typical Application | Selection Consideration |
|---|---|---|
| 4 way | Small three-phase installations | Compact, but limited expansion capacity |
| 6 way | Small commercial units and workshops | More flexibility for mixed circuits |
| 8 way | Commercial and light-industrial installations | Useful where additional circuits are expected |
| 12 way | Larger commercial and industrial distribution | Provides substantial capacity for mixed loads |
| 16–24 way | Larger multi-circuit installations | Useful where expansion and circuit separation are priorities |
These are general examples rather than fixed rules. Two installations with the same number of outgoing circuits can require different board sizes depending on the mix of protective devices and how the circuits are distributed across the phases.
Start by Counting the Circuits You Actually Need
Before choosing a board, list every circuit the installation needs and identify whether each is single-phase or three-phase.
Depending on the premises, outgoing circuits could include:
- Single-phase lighting circuits
- Single-phase socket circuits
- Three-phase machinery
- Motors and pumps
- Heating and HVAC equipment
- Commercial kitchen equipment
- EV charging equipment
- Solar PV or other renewable equipment
- Sub-main supplies to downstream distribution boards
This circuit schedule gives you the starting point for determining the board capacity and protective devices required.
Don't Forget Phase Balancing
Where a three-phase board supplies multiple single-phase circuits, those loads should be distributed appropriately across the phases.
For example, placing the majority of the substantial single-phase loads on one phase while leaving the other phases comparatively lightly loaded would create an unnecessarily unbalanced arrangement.
Board selection should therefore consider not only how many circuits fit, but how those circuits will be arranged across L1, L2 and L3.
This becomes particularly important in commercial and industrial installations containing a mixture of single-phase and three-phase loads.
Does the Amp Rating Determine the Size of the Distribution Board?
No. The current rating and number of ways are separate specifications.
A board's way count describes its outgoing circuit capacity, while its current rating relates to the electrical capacity of the assembly under the manufacturer's specified conditions.
Power & Data UK supplies 125A TPN distribution boards across multiple way counts, allowing installers to choose the physical circuit capacity independently from the board's headline current rating.
The correct rating needs to be assessed against the design of the complete installation, including the supply, maximum demand, protective devices and manufacturer's specifications.
What Protective Devices Go in a Three-Phase Distribution Board?
The outgoing protective devices depend on the circuits being supplied.
A three-phase board can potentially incorporate devices including:
- Single-pole MCBs for suitable single-phase circuits
- Multi-pole MCBs for suitable three-phase circuits
- RCBOs where combined overcurrent and residual-current protection is required
- RCD protection where appropriate to the installation design
- Surge protection devices
The number and physical arrangement of these devices should be considered when selecting the board rather than assuming every outgoing circuit occupies the same amount of space.
If residual-current protection is required for a three-phase circuit, our guide to three-phase RCDs and 4-pole leakage protection explains the basic selection principles.
Does a Three-Phase Distribution Board Need Surge Protection?
Surge protection requirements should be assessed as part of the complete installation and against the current requirements of BS 7671.
Where an SPD is required at a three-phase board, the protective arrangement needs to suit the supply configuration and installation.
Power & Data UK supplies TPN distribution boards with surge protection options, alongside standalone three-phase surge protection devices and pre-configured units.
We've covered this in more detail in our guides to when a three-phase SPD is required and where surge protection should be installed on a three-phase system.
How Many Spare Ways Should You Leave?
Installing a distribution board that is completely full from day one can make later alterations unnecessarily difficult.
Commercial and industrial installations often evolve. Additional machinery, EV chargers, air conditioning, heating equipment or downstream circuits may be added after the original installation.
Where future expansion is reasonably foreseeable, moving up to the next suitable board size can provide valuable flexibility.
Compare 125A TPN distribution boards
4-Way vs 8-Way vs 12-Way Three-Phase Boards
The practical difference between board sizes is primarily the amount of outgoing circuit capacity and expansion space they provide.
A 4-way TPN board can suit a relatively compact installation with a small number of known circuits. An 8-way board provides greater flexibility for installations with a broader mixture of loads, while a 12-way or larger board becomes more useful where substantial circuit capacity or future expansion is required.
Power & Data UK's three-phase range includes different board sizes, allowing the enclosure to be matched more closely to the installation rather than oversizing or restricting the board unnecessarily.
Three-Phase Distribution Board Selection Checklist
Before specifying a board, check:
- Number of outgoing circuits
- Single-phase vs three-phase circuits
- Distribution of loads across L1, L2 and L3
- Protective-device requirements
- Board current rating
- Surge protection requirements
- Available usable ways
- Expected future circuits
- Installation environment and enclosure requirements
- Manufacturer compatibility of the devices being installed
The aim is not simply to buy the biggest board available. It is to choose a board that accommodates the designed installation cleanly while leaving an appropriate amount of room for foreseeable changes.
Three-Phase Distribution Board FAQs
What size three-phase distribution board do I need?
It depends on the number and type of outgoing circuits, the protective devices required and the amount of spare capacity you want to retain. Create the circuit schedule first rather than selecting the board from its physical size alone.
What does an 8-way TPN distribution board mean?
An 8-way TPN board provides eight outgoing way positions across the three-phase busbar arrangement. The actual number and type of circuits it can accommodate depends on whether the outgoing circuits are single-phase or three-phase and which protective devices are required.
Is a 4-way three-phase board enough?
It can be for a small installation with relatively few outgoing circuits. If the board would be close to full immediately, however, selecting a larger board may provide more practical expansion capacity.
Should I choose an 8-way or 12-way TPN board?
Choose based on the circuit schedule, the mix of single-phase and three-phase loads, the protective devices required and the likelihood of future expansion. If an 8-way board would leave little or no spare capacity, a 12-way board may be the more practical choice.
How many circuits can an 8-way three-phase distribution board have?
There is no single circuit count that applies to every 8-way TPN board installation. The usable capacity depends on the combination of single-phase and three-phase circuits and the protective devices being fitted. A three-phase circuit typically uses positions across all three phases, whereas individual single-phase circuits can be distributed across L1, L2 and L3.
What does TPN mean on a distribution board?
TPN stands for three-phase and neutral. A TPN distribution board is designed to distribute a three-phase supply, including a neutral conductor where required, to suitable outgoing circuits.
Can you run single-phase circuits from a three-phase distribution board?
Yes. Suitable single-phase circuits can be supplied from a three-phase distribution board. Where multiple single-phase loads are present, they should be distributed appropriately across the available phases as part of the installation design.
What is the difference between a TPN board and a single-phase consumer unit?
A single-phase consumer unit distributes a single-phase supply, whereas a TPN distribution board provides distribution across three phases and neutral. TPN boards are commonly used in commercial, industrial and larger installations where three-phase supplies or a mixture of three-phase and single-phase loads are present.
Do I need a 125A three-phase distribution board?
The required board rating depends on the electrical design of the installation. A 125A-rated board provides a stated assembly rating, but this should not be confused with the number of outgoing ways or treated as confirmation that the installation itself will draw 125A. Maximum demand, upstream protection, supply capacity and manufacturer specifications all need to be considered.
Does a TPN distribution board need an SPD?
Surge protection requirements should be assessed against the complete installation and the current requirements of BS 7671. Where surge protection is required, the SPD arrangement must be suitable for the three-phase supply configuration and its position within the installation.
Should I leave spare ways in a three-phase distribution board?
Where future additions are reasonably foreseeable, leaving spare capacity can make later expansion considerably easier. Commercial and industrial installations frequently gain additional machinery, HVAC equipment, EV charging, renewable systems or downstream circuits over time.
Power & Data UK supplies 125A TPN distribution boards for commercial, industrial and three-phase installations, with multiple way counts and surge-protected options available. Choose the board around your circuit schedule, protective-device requirements and expected expansion capacity.
👉 Browse 125A TPN distribution boards with SPD options
Electrical distribution equipment should be specified and installed by a suitably qualified person in accordance with the current edition of BS 7671, the installation design and the equipment manufacturer's instructions.
