What Consumer Unit Do I Need for a Garage or Outbuilding?
Choosing a consumer unit for a garage or outbuilding depends on more than simply counting the circuits you need today. The board also needs to suit the supply arrangement, protective devices, installation environment and any future loads you expect to add.

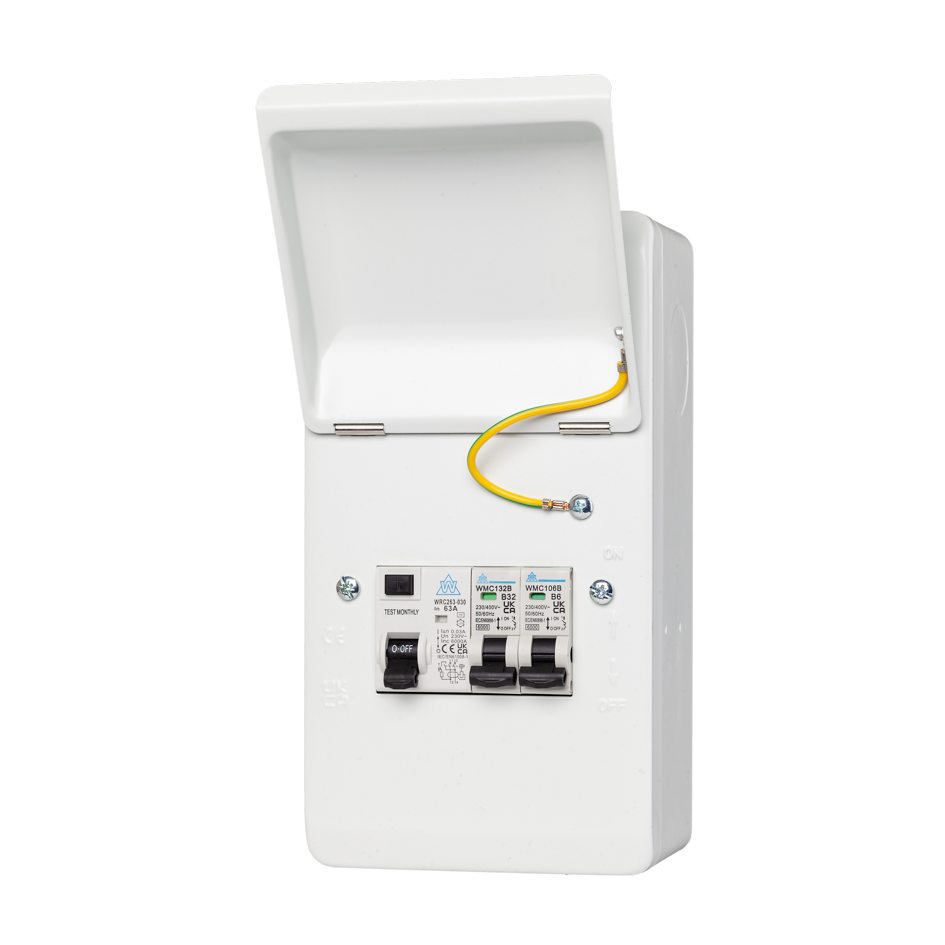

A small garage supplying lighting and a few sockets may only need a compact garage consumer unit. A workshop, detached building or outbuilding with heavier equipment, heating or an EV charger may need a larger board with additional ways and a different protection arrangement.
š Browse garage consumer units
Jump To:
What Size Consumer Unit Do You Need for a Garage?
The right size is determined primarily by the number of circuits and protective devices the board needs to accommodate. A basic garage may have only lighting and socket circuits, whereas a workshop could have several final circuits serving machinery, heating, outdoor equipment or other dedicated loads.
It is also worth allowing some spare capacity. Specifying a board that is completely full from day one can make later additions unnecessarily restrictive.
| Board Size | Typical Application | Things to Consider |
|---|---|---|
| 2ā4 way | Very small garage or simple auxiliary supply | Limited expansion capacity |
| 6 way | Garage or small workshop with several circuits | Useful balance between compact size and spare ways |
| 8 way+ | Larger workshop, multi-use outbuilding or expanding installation | More room for dedicated circuits and future additions |
The number printed in a product name also needs to be checked against its actual usable ways and module capacity. Devices such as main switches, RCDs and SPDs occupy enclosure space, so enclosure size and usable outgoing ways are not always the same thing.
Start With the Circuits the Outbuilding Needs
Before choosing the board, establish what the outbuilding will actually supply. This is more useful than selecting a consumer unit purely by physical size.
Typical garage and outbuilding loads can include:
- Lighting
- General socket outlets
- Outdoor lighting or external equipment
- Electric heating
- Workshop machinery
- Pumps or motor-driven equipment
- EV charging equipment
- Other dedicated higher-load circuits
A simple two-circuit garage and a working commercial-style workshop therefore have very different board requirements, even if both are described as an āoutbuildingā.
The characteristics of those loads also affect the protective devices selected. Motor-driven equipment, for example, can have different starting characteristics from ordinary resistive loads.
Should a Garage Consumer Unit Use an RCD or RCBOs?
Garage consumer units are available in several configurations, including boards using an RCD with individual MCBs and arrangements where circuits receive individual RCBO protection.
An MCB provides overcurrent protection, while an RCBO combines overcurrent and residual-current protection for an individual circuit.
| Arrangement | How It Works | Practical Consideration |
|---|---|---|
| RCD + MCBs | One RCD can provide residual-current protection to multiple outgoing circuits | An RCD trip can affect more than one circuit |
| Individual RCBOs | Each circuit has combined overcurrent and residual-current protection | Provides greater separation between outgoing circuits |
The correct arrangement depends on the circuit design and installation requirements rather than the building simply being a garage.
Does a Garage or Outbuilding Consumer Unit Need Surge Protection?
Surge protection should be considered as part of the complete installation, rather than assuming every detached board automatically requires its own SPD or that protection at the main board automatically covers every situation.
Factors such as the existing installation, supply arrangement, cable route, distance between boards and equipment being protected can all influence the final design.
We've covered this subject separately in our guide to surge protection for outbuildings and detached garages.
You can also compare surge protection devices and pre-configured SPD units if the installation requires additional protection.
Do You Need an IP-Rated Consumer Unit in a Garage?
Where the board is installed matters. A consumer unit mounted in a dry internal position has different environmental requirements from equipment exposed to moisture, dust or weather.
For relatively clean, dry indoor environments, an indoor-rated enclosure may be suitable where the installation conditions allow. More exposed locations may call for an enclosure with a higher IP rating.
IP65 enclosures, for example, provide a substantially higher level of protection against dust and water ingress than a standard indoor enclosure and can be useful for harsher garage, workshop and outdoor environments.
Don't select IP rating purely from the word āgarageā. Consider the actual mounting position and expected exposure.
Allow Spare Ways for Future Garage Loads
One of the easiest mistakes when specifying a garage board is choosing exactly enough capacity for the circuits being fitted today.
Outbuildings frequently change use. A garage that initially has one lighting circuit and one socket circuit may later gain heating, workshop equipment, outdoor supplies or EV charging.
Moving from a very small board to a 6-way or 8-way unit can therefore make sense where future expansion is realistic, provided the wider electrical installation is suitable for those additional loads.
Compare garage consumer units and configurations
Garage Consumer Unit Selection Checklist
When comparing boards, check:
- Number of outgoing circuits required now
- Spare ways required for likely future additions
- RCD, RCBO or MCB arrangement required by the circuit design
- Main switch arrangement and board configuration
- SPD requirements for the complete installation
- IP rating appropriate to the mounting environment
- Load characteristics of machinery, heating or other equipment
- Available module space, not simply the advertised enclosure size
For most jobs, the best garage consumer unit is therefore the smallest board that comfortably accommodates the required protection without leaving the installation unnecessarily restrictive.
Garage & Outbuilding Consumer Unit FAQs
Is a 4-way consumer unit enough for a garage?
It can be for a small installation, but check usable module capacity as well as the number of outgoing circuits. If expansion is likely, a larger board may be more practical.
Is a 6-way consumer unit suitable for a garage?
Six-way boards can suit garages and small workshops requiring several circuits while leaving some room for additional protection or future expansion. The final size still depends on the actual circuit arrangement.
Does a garage consumer unit need an RCD?
Residual-current protection requirements depend on the circuits and installation design. Garage boards may use an RCD with MCBs or individual RCBOs where appropriate.
Should I use RCBOs in a garage consumer unit?
RCBOs provide individual overcurrent and residual-current protection and can reduce the number of circuits affected by a single protective-device operation. Whether they are appropriate depends on the installation design.
Does a detached garage need its own SPD?
Not automatically. Surge protection should be assessed across the complete installation, including the existing SPD arrangement, cable route, distance between boards and equipment being protected.
Do I need an IP65 consumer unit for a garage?
Not simply because the building is a garage. The enclosure rating should suit its actual environment. IP65 equipment becomes more relevant where dust, moisture or weather exposure is expected, while a suitable indoor-rated enclosure may be appropriate in a clean, dry internal location.
What size consumer unit should I use for a workshop?
It depends on the number and type of circuits required. A small workshop may be adequately served by a 4-way or 6-way board, while workshops with machinery, heating, multiple socket circuits or other dedicated loads may require 8 ways or more. Allowing spare capacity can also make future additions easier.
Can an EV charger be supplied from a garage consumer unit?
An EV charger may form part of an outbuilding installation where the electrical design, supply capacity and protective arrangements are suitable. EV charging introduces additional considerations including the required RCD or RCBO type, overcurrent protection, PEN fault protection where applicable and surge protection.
Can I use a main switch consumer unit in a garage?
A main switch board can be suitable where the required residual-current and overcurrent protection is provided by the appropriate outgoing devices or elsewhere within the installation. The complete protective arrangement should be considered rather than choosing the board from its main switch alone.
Should I leave spare ways in a garage consumer unit?
Where practical, yes. Garages and outbuildings are commonly upgraded with additional sockets, lighting, heating, machinery, outdoor supplies or EV charging equipment. Spare module capacity can make future alterations easier than installing a board that is already full.
Choosing the Right Consumer Unit for a Garage or Outbuilding
There isn't one standard garage consumer unit specification that suits every installation. A simple detached garage may only require a compact board for lighting and sockets, while a workshop or larger outbuilding may need substantially more circuit capacity and a more comprehensive protection arrangement.
The main points to establish before selecting the board are:
- How many circuits the garage or outbuilding needs
- Whether additional circuits are likely to be added later
- Which MCB, RCD or RCBO arrangement is required
- Whether surge protection needs to be incorporated
- Whether the enclosure needs additional protection against dust or moisture
- How much usable module space remains once all protective devices are fitted
For professional installers, the aim should be to specify a board that provides the required protection and enough usable capacity for the installation without unnecessarily oversizing it.
Power & Data UK supplies compact garage and outbuilding consumer units for professional electrical installations, including RCD, MCB and main switch configurations for different circuit requirements.
š Browse Garage Consumer Units
Always design, install, inspect and test electrical installations in accordance with the current edition of BS 7671, applicable manufacturer instructions and the specific requirements of the installation.
