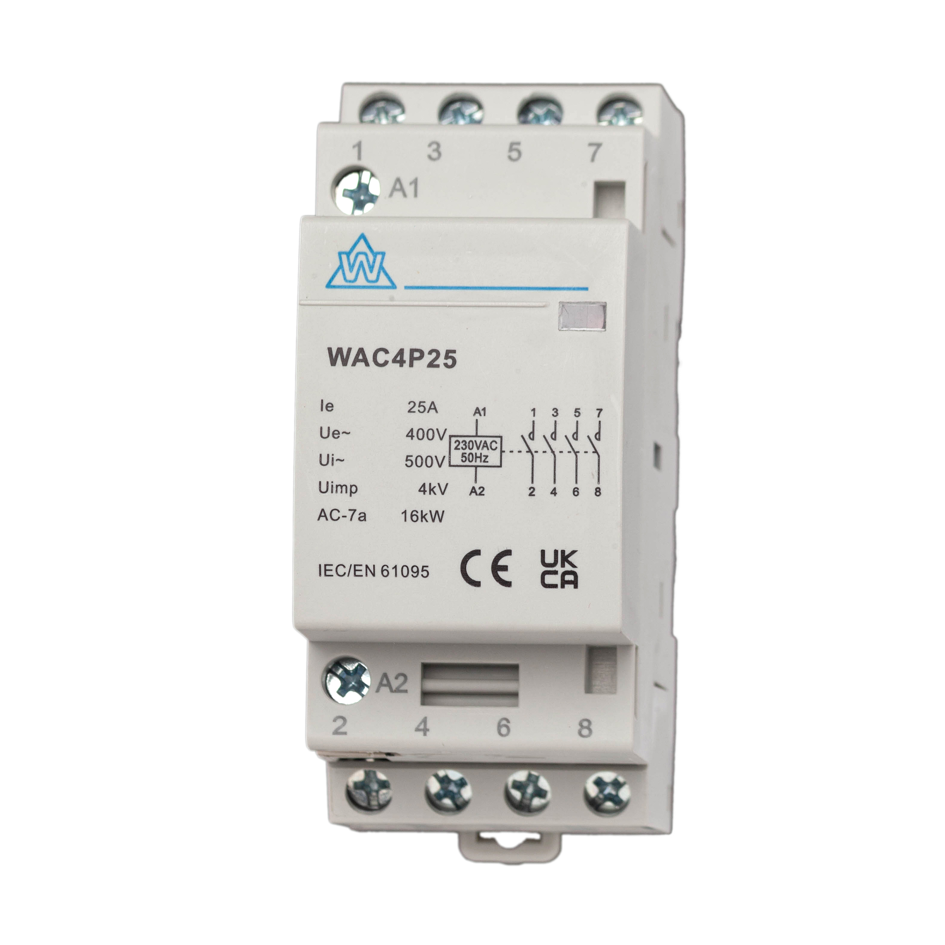

What Is a Modular Contactor - And When Would You Use One?
A modular contactor is an electrically controlled switching device designed to switch electrical loads on and off from a separate control signal. Unlike a standard manual switch, a contactor can be operated automatically by equipment such as a timer, thermostat, relay, energy-management system or other control device.
Modular contactors are designed for DIN rail installation, making them particularly useful inside consumer units, distribution boards and control enclosures where automatic switching of higher-current loads is required.
👉 Browse modular contactors
What Is a Modular Contactor?
A modular contactor is essentially a heavy-duty electrically operated switch. Instead of someone physically operating the switch, the contactor opens or closes its main contacts when its control coil is energised or de-energised.
The word “modular” refers to its DIN rail format. This allows the contactor to be installed alongside other modular electrical equipment within a suitable consumer unit, distribution board or enclosure.
This makes modular contactors particularly useful where a circuit needs to be controlled automatically but the load is too substantial to be switched directly by the timer, thermostat or control equipment itself.
How Does a Modular Contactor Work?
A contactor has two sides to consider: the control circuit and the load circuit.
The control circuit energises a coil inside the contactor. This creates a magnetic field that operates the main contacts, allowing the larger electrical load to be switched.
In simple terms:
- A timer, thermostat, relay or other controller sends a signal to the contactor coil.
- The coil becomes energised.
- The contactor's main contacts change state.
- The connected load is switched on or off.
- When the control signal changes, the contactor returns to its required state.
When Would You Use a Modular Contactor?
Contactors become useful when a circuit needs to be switched automatically, remotely or through another control device.
Common applications can include:
- Electric heating systems
- Water heaters and immersion heaters
- Lighting circuits
- Pumps
- Ventilation equipment
- Motor-driven equipment
- EV charging and load-management arrangements
- Timed electrical loads
- Building-management and energy-control systems
For example, a contactor could allow a bank of lighting to operate from a timer, or allow heating equipment to be controlled from a thermostat without the thermostat itself carrying the full load current.
The important distinction is that the control device tells the contactor when to operate, while the contactor handles the switching of the main circuit.
Modular Contactor vs Normal Switch: What's the Difference?
A normal isolator or main switch is generally intended to be operated manually. A contactor is designed to be operated electrically by a control signal.
| Device | Operation | Typical Purpose |
|---|---|---|
| Modular contactor | Electrically controlled | Automatic or remote switching of loads |
| Main switch / isolator | Normally manually operated | Switching or isolation of an installation or circuit |
| Timer / thermostat / controller | Responds to time, temperature or another input | Provides the control signal |
A contactor should therefore not automatically be treated as a substitute for whatever isolation or circuit protection the installation requires.
What's the Difference Between a Contactor and a Relay?
Contactors and relays work on a similar basic principle: a control signal causes electrical contacts to change state.
The practical difference is usually the application. Contactors are designed for switching power circuits and larger loads, whereas relays are commonly associated with lower-current control and signalling duties.
The terms can overlap depending on the device and application, so selection should always be based on the manufacturer's electrical ratings and intended use rather than the name alone.
2-Pole vs 4-Pole Modular Contactors
One of the first specifications to check is the number of poles the contactor switches.
A 2-pole modular contactor provides two switched poles and can be used in suitable single-phase applications where two conductors need to be switched.
A 4-pole modular contactor provides four switched poles, making it suitable for applications where additional conductors need to be controlled simultaneously, including appropriate three-phase and three-phase-plus-neutral arrangements.
| Contactor | Switched Poles | Typical Application |
|---|---|---|
| 2-pole | 2 | Suitable single-phase switching arrangements |
| 4-pole | 4 | Suitable multi-pole and three-phase switching arrangements |
The correct pole configuration depends on the circuit and which conductors are required to be switched.
What Amp Rating Modular Contactor Do You Need?
Power & Data UK supplies modular contactors across a range of current ratings, including products at 20A, 25A, 32A, 40A, 63A, 100A and 125A.
However, selecting a contactor is not simply a case of matching its headline amp rating to the protective device.
The installer should consider:
- Load current
- Type of load being switched
- Single-phase or three-phase arrangement
- Number of poles required
- Coil/control voltage
- Switching frequency
- Manufacturer utilisation ratings for the intended load
This last point matters because a contactor switching a resistive heating load is not necessarily operating under the same conditions as one repeatedly switching a motor or another inductive load.
Compare 2-pole and 4-pole modular contactors
Why Does the Contactor Coil Voltage Matter?
The coil is the part of the contactor operated by the control circuit, so its rated voltage needs to match the control arrangement being used.
This specification is separate from the current capacity of the main contacts. In other words, the voltage used to control the contactor and the electrical load being switched by the contactor are two different considerations.
Always check the manufacturer's specification before connecting a contactor to a timer, relay, thermostat or other controller.
Does a Contactor Replace an MCB, RCBO or RCD?
No. A contactor is primarily a switching device. It should not be confused with the protective devices used to provide overcurrent or residual-current protection.
An MCB provides overcurrent protection. An RCD provides residual-current protection, while an RCBO combines residual-current and overcurrent protection for a circuit.
A contactor may form part of the same installation, but its role is different: it allows the load to be switched in response to a control signal.
Modular Contactor Selection Checklist
Before specifying a contactor, establish:
- What load needs to be switched?
- What is the load current?
- Is the load resistive, inductive or another type?
- How many poles need to be switched?
- What is the supply arrangement?
- What control device will operate the contactor?
- What coil voltage does that control arrangement require?
- How frequently will the load be switched?
- What utilisation rating does the manufacturer specify for the application?
Answering these questions gives a much better basis for selection than simply choosing the nearest current rating.
Power & Data UK's modular contactor range includes 2-pole and 4-pole options across multiple current ratings for domestic, commercial and three-phase control applications.
Modular Contactor FAQs
What does a modular contactor do?
A modular contactor electrically switches a load in response to a separate control signal. This allows equipment to be controlled automatically by devices such as timers, thermostats and relays.
Why use a contactor instead of a switch?
A contactor allows electrical switching to be automated or remotely controlled. A standard manual switch normally requires someone to physically operate it.
What is a DIN rail contactor?
A DIN rail contactor is a contactor designed to mount onto DIN rail inside a suitable consumer unit, distribution board or electrical enclosure. Modular contactors are commonly supplied in this format because it keeps the switching equipment compact and compatible with standard modular enclosures.
What is the difference between a modular contactor and a relay?
Both use a control signal to operate electrical contacts, but contactors are generally designed for switching higher-current power circuits, while relays are more commonly used for lower-current control and signalling duties. Always check the manufacturer's ratings for the intended application.
What is the difference between a contactor and an isolator?
A contactor is designed for electrically controlled switching, while an isolator is primarily used to provide a means of isolation. A contactor should not automatically be treated as a replacement for a suitable isolating device where isolation is required.
What is a 2-pole contactor used for?
A 2-pole contactor can be used in suitable single-phase applications where two conductors need to be switched simultaneously. The exact arrangement depends on the circuit design and equipment being controlled.
What is a 4-pole contactor used for?
A 4-pole contactor provides four switched poles and can be used for suitable three-phase, three-phase-plus-neutral and other multi-pole switching applications. The required pole arrangement should be determined from the circuit being controlled.
Can a contactor be used with a timer?
Yes. This is a common use for contactors. A suitable timer can operate the contactor coil, allowing the contactor to switch a load that should not be connected directly through the timer's own switching contacts. Both devices must be correctly specified for the control arrangement.
Can a thermostat control a contactor?
Yes, where the thermostat and contactor are suitable for the control arrangement. This can allow a thermostat to control a larger heating load indirectly, with the contactor handling the main switched current.
Does a contactor provide overload protection?
Not by itself. A standard modular contactor is a switching device rather than an MCB, RCD or RCBO. The circuit still requires the appropriate protective devices for the installation.
Can you use a modular contactor for an EV charger?
A suitably specified contactor can form part of an EV charging control or load-management arrangement. However, it does not replace the circuit protection, residual-current protection, PEN fault protection or other measures required for the particular EV installation.
How do I choose the right modular contactor?
Check the load being switched, current requirement, number of poles, coil voltage, supply arrangement, switching frequency and the manufacturer's utilisation ratings. For motors and other inductive loads in particular, do not select a contactor from its headline amp rating alone.
Choosing the Right Modular Contactor
A modular contactor provides a practical way to automatically or remotely switch an electrical load from a separate control circuit while keeping the switching device neatly installed on DIN rail.
The key is to specify it around the actual application. A 32A contactor is not automatically suitable simply because the connected circuit has a 32A protective device. The load type, utilisation rating, pole configuration, coil voltage and switching duty all need to be considered.
For single-phase applications, a 2-pole contactor may provide the required switching arrangement. Larger multi-pole and three-phase applications may require a 4-pole contactor, with current ratings selected to suit the connected load and manufacturer's specifications.
