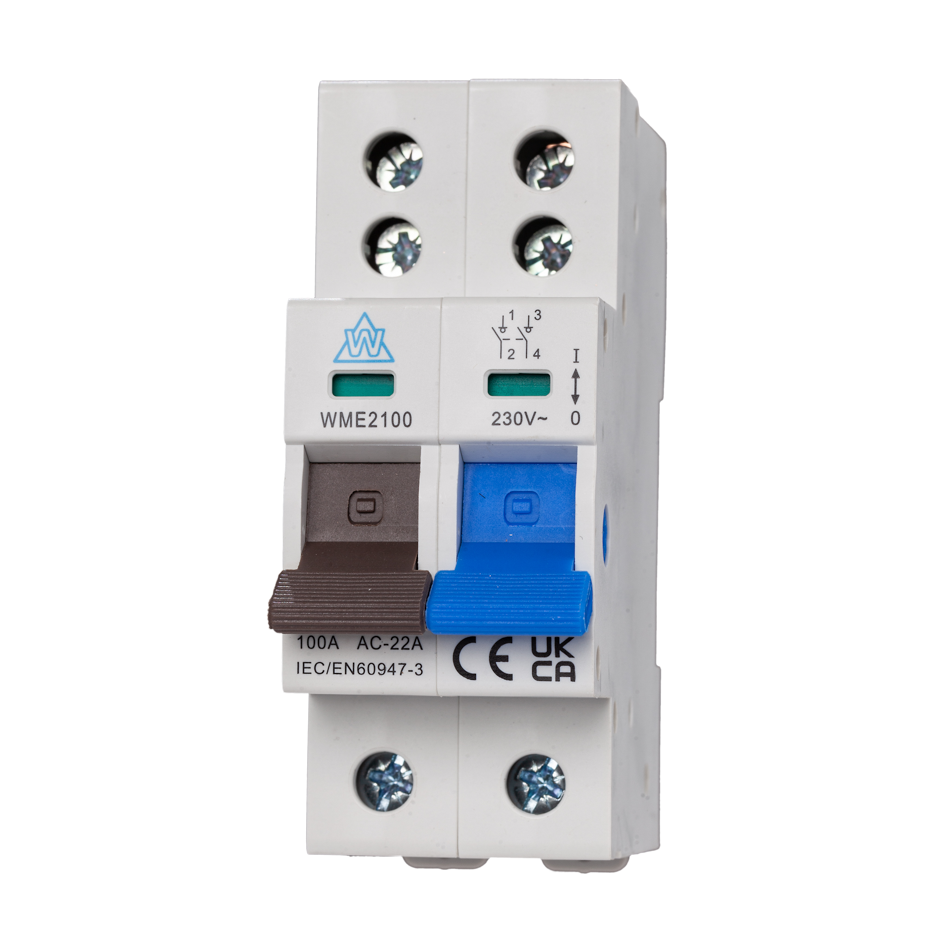

Twin Screw Main Switch for Consumer Units - 2 Pole 100A Double Terminal WME2100

The WME2100 is a 2 Pole 100A main switch designed for use in metal or plastic consumer units. Featuring twin screw terminals for a solid mechanical connection, it ensures safe and reliable isolation of incoming mains supply.

Compact and easy to fit, it’s ideal for domestic consumer boards or small commercial panels where fast fit-out and compliance are essential. Dual top terminals give extra wiring flexibility, especially when installing tails or linking accessories.

• 100A rated main isolator – suitable for most domestic mains supplies
• 2 Pole (230V) or use across 400V where required
• Twin screw terminals for secure clamping and better conductivity
• Colour-coded handle for easy ON/OFF status visibility
• Compact footprint: 35mm (W) x 92mm (H) x 65mm (D)

• SKU: WME2100
• Poles: 2 Pole
• Rated Current: 100A
• Voltage: 230V (2P) / 400V (4P use cases)
• Terminals: Twin screw (top entry)
• Handle: Colour coded for clear isolation status
• Mounting: DIN rail compatible
• Enclosure Compatibility: Fits standard consumer unit busbars
• Dimensions (W x H x D): 35 x 92 x 65mm
• Standards: Conforms to IEC 60947-3

This 100A 2 pole isolator is DIN-mountable and suitable for direct installation into consumer units. Terminal tightening must be completed using calibrated torque tools per standard installation guidelines.

• Ensure power is isolated before installation
• Secure onto DIN rail – top-mounted twin screw terminals allow flexible cable entry
• Match terminal size to incoming tail gauge
• Confirm main switch position and ON/OFF direction before powering up

What is this main switch used for?

It’s used as the main isolator in a domestic or light commercial consumer unit, typically switching the entire board on or off safely.

Are the terminals top or bottom entry?

This unit uses twin screw terminals on the top side, offering strong clamping and flexibility for incoming tails or internal wiring.

Can I use this in a 3-phase board?

Not directly - this is a 2-pole switch. For 3-phase isolation, use a 4-pole variant.

Is it compliant with UK wiring regulations?

Yes - it conforms to IEC 60947-3 and is suitable for 18th Edition compliant installs.

Does it include a neutral switch?

No - this unit switches live conductors only. For double pole disconnection including neutral, see 4-pole main switches or RCBO options.
