125A 3 Phase Distribution Board – 8 Way (WTPN08-125SP)
18th Ed. Compliant
2-Year Warranty
UK Stock
Free Delivery £80+
Secure Payments With

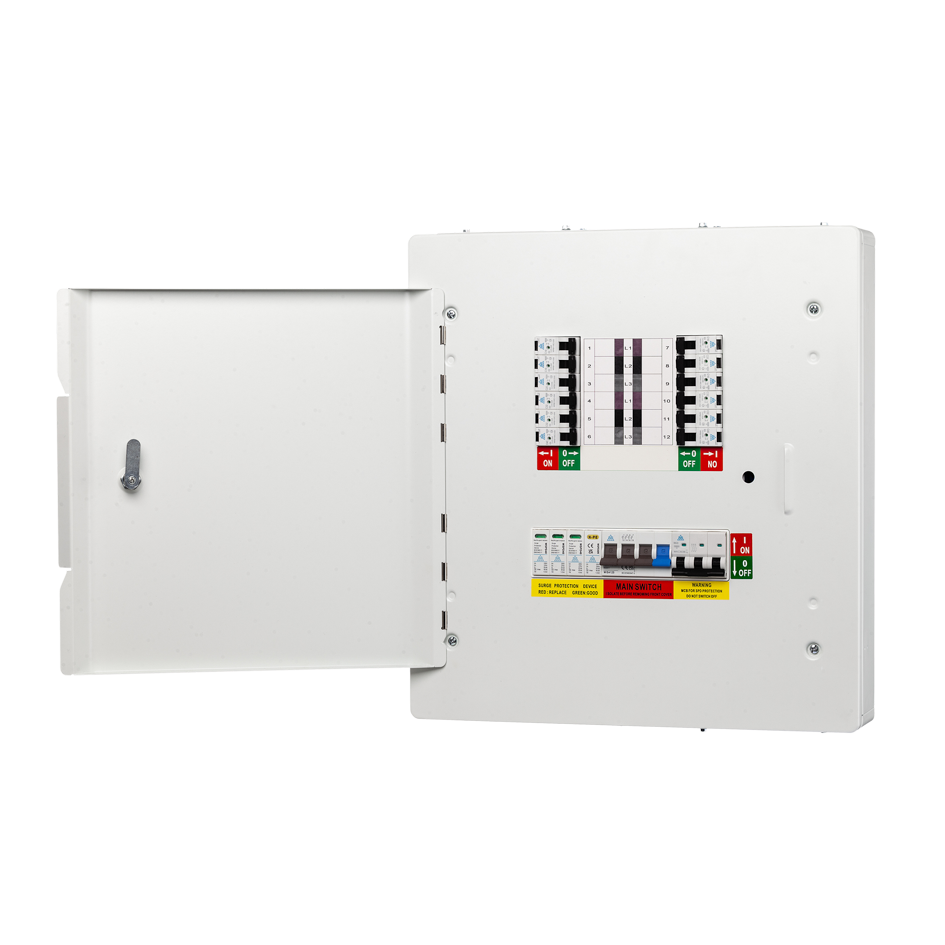

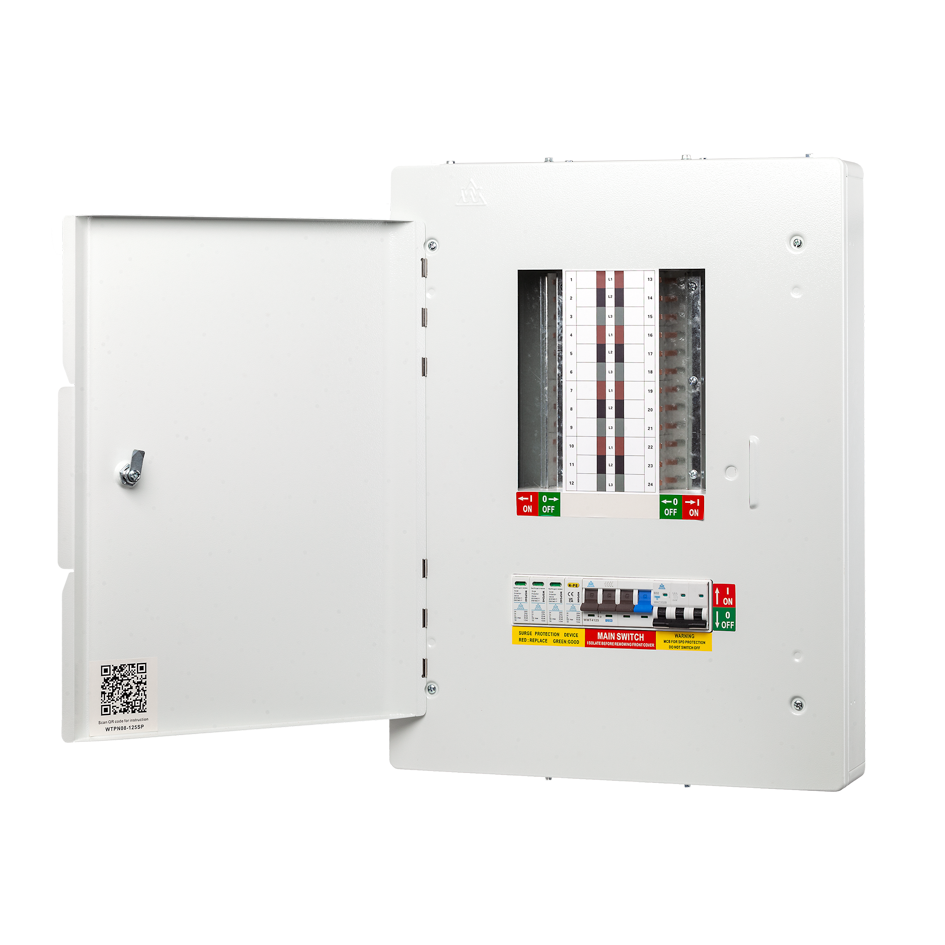

The WTPN08-125SP is an 8-way 125A three-phase distribution board designed for commercial and industrial installations that require a higher number of outgoing circuits without moving to a full-size panel. It is supplied as standard with a 125A 4-pole main switch, an integrated Type 2 Surge Protection Device (SPD), and a...

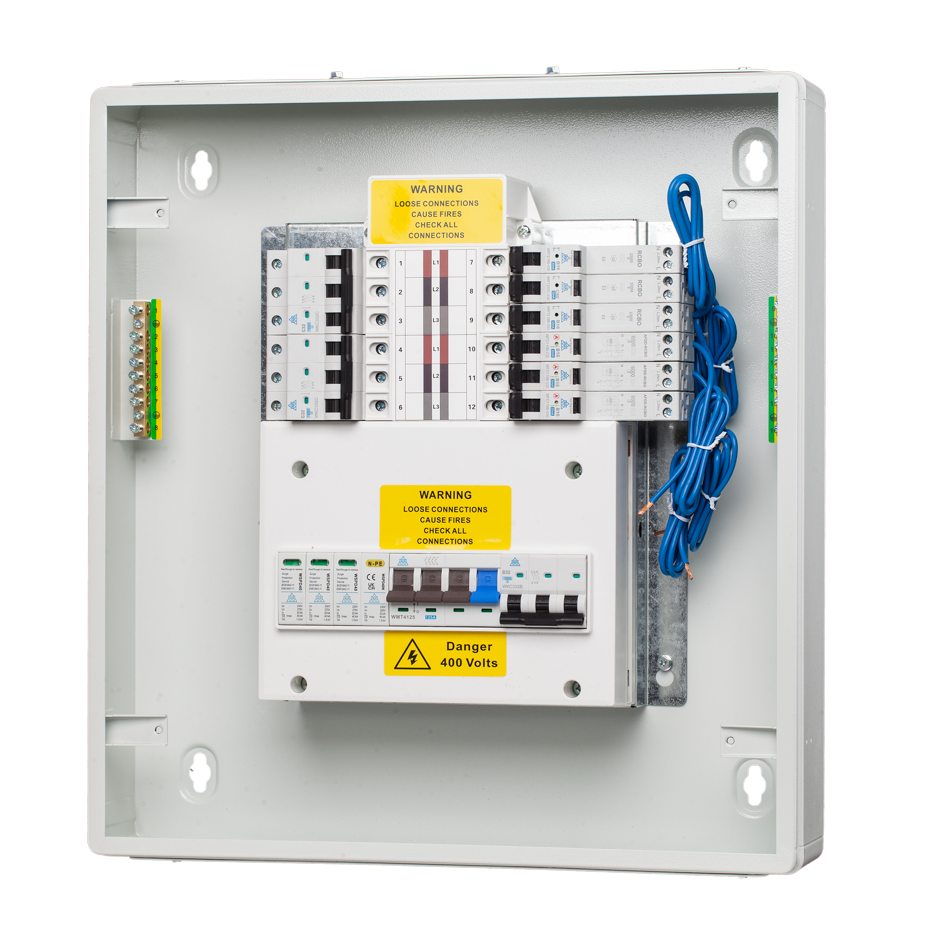

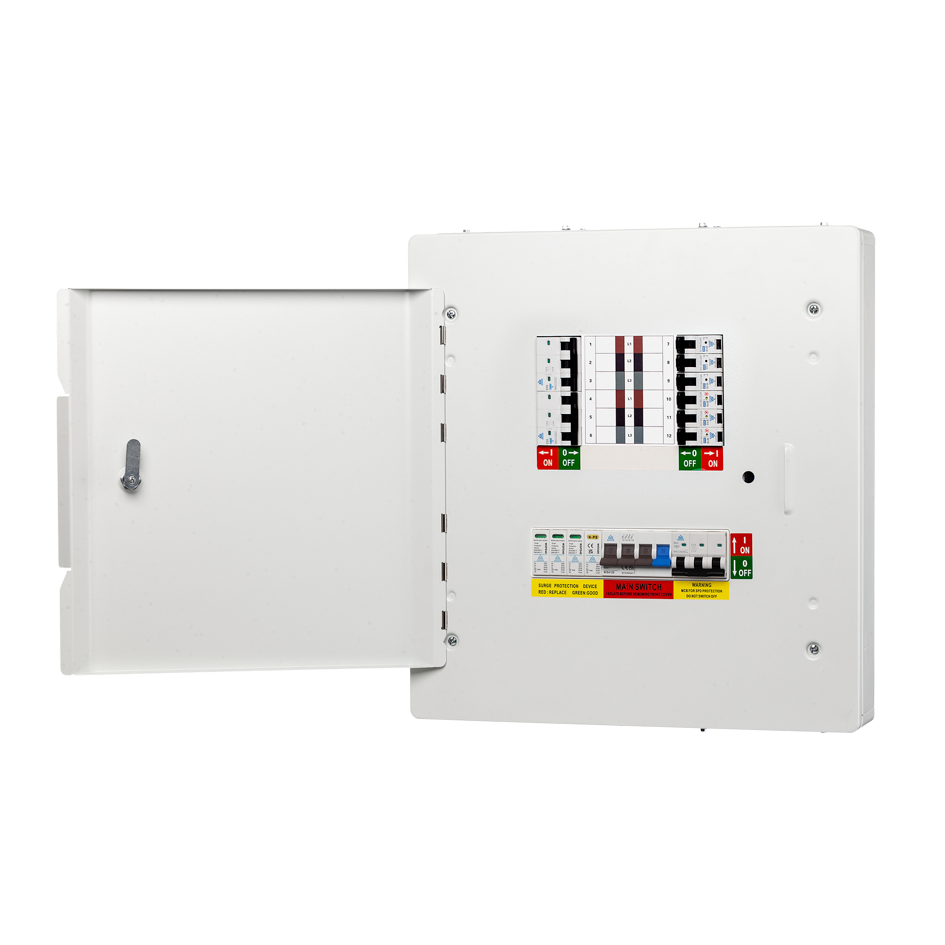

The WTPN08-125SP is an 8-way 125A three-phase distribution board designed for commercial and industrial installations that require a higher number of outgoing circuits without moving to a full-size panel. It is supplied as standard with a 125A 4-pole main switch, an integrated Type 2 Surge Protection Device (SPD), and a 3-pole 32A MCB, ensuring safe and compliant distribution from the outset.
With 8 outgoing ways, this model suits workshops, retail spaces, plant rooms, and small industrial units running multiple three-phase loads. The robust IP40 steel enclosure provides long-term durability, while compatibility with our MCBs and RCBOs allows straightforward circuit configuration and future adjustments.
Installer Tip: A popular choice for medium commercial sites where lighting, power, and specialist circuits such as HVAC or machinery each require their own protected outgoing way.
Key Features
- 125A 4-pole main switch – secure three-phase isolation and circuit control
- Type 2 SPD pre-installed – protects connected circuits from transient overvoltage events
- 3-pole 32A MCB included as standard – dedicated outgoing protection aligned with 125A TPN specification
- 8 outgoing ways – flexible capacity for medium-sized commercial and industrial installs
- IP40 steel enclosure – 1.2mm heavy-duty construction for long service life
- Neutral and earth terminals fitted both sides, fully shrouded for safety
- Accepts 6kA MCBs and RCBOs without modification

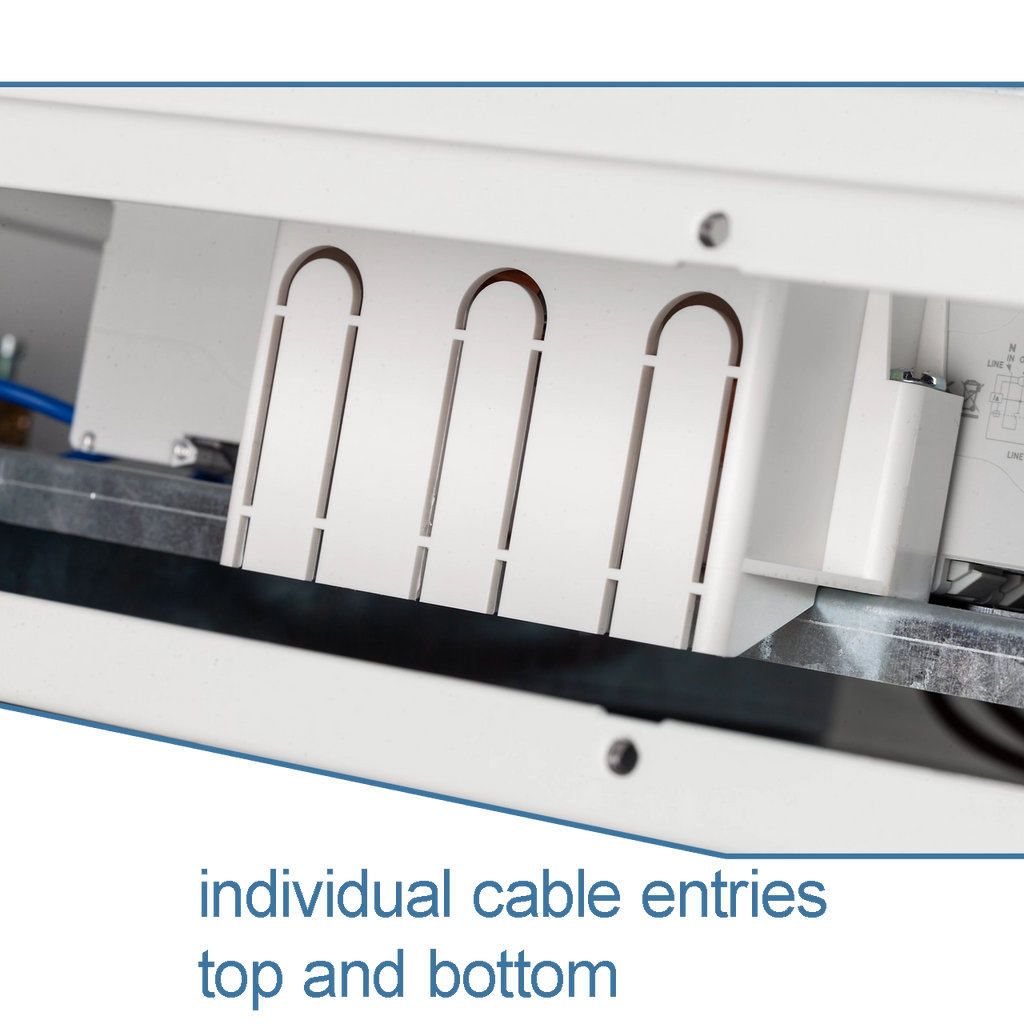

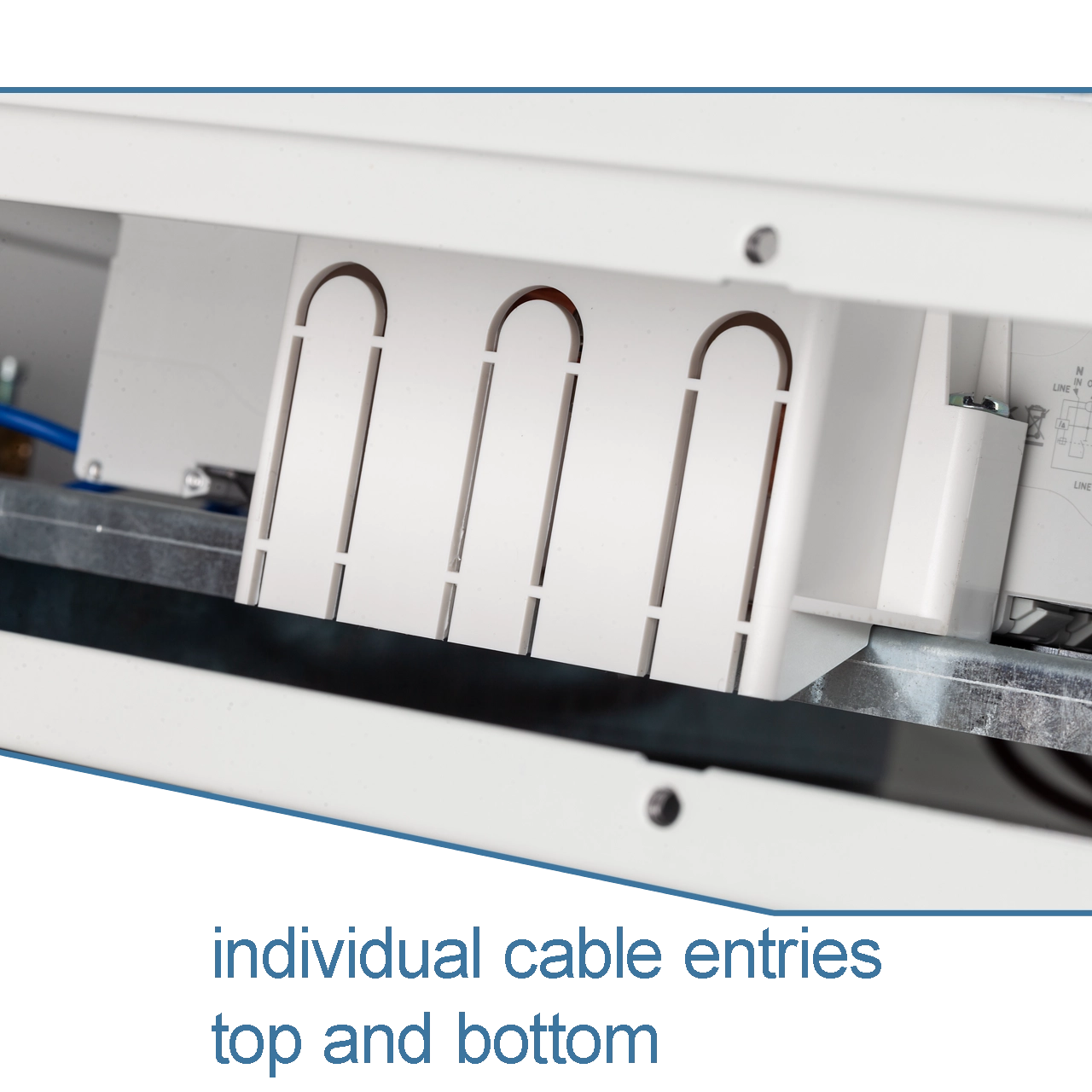

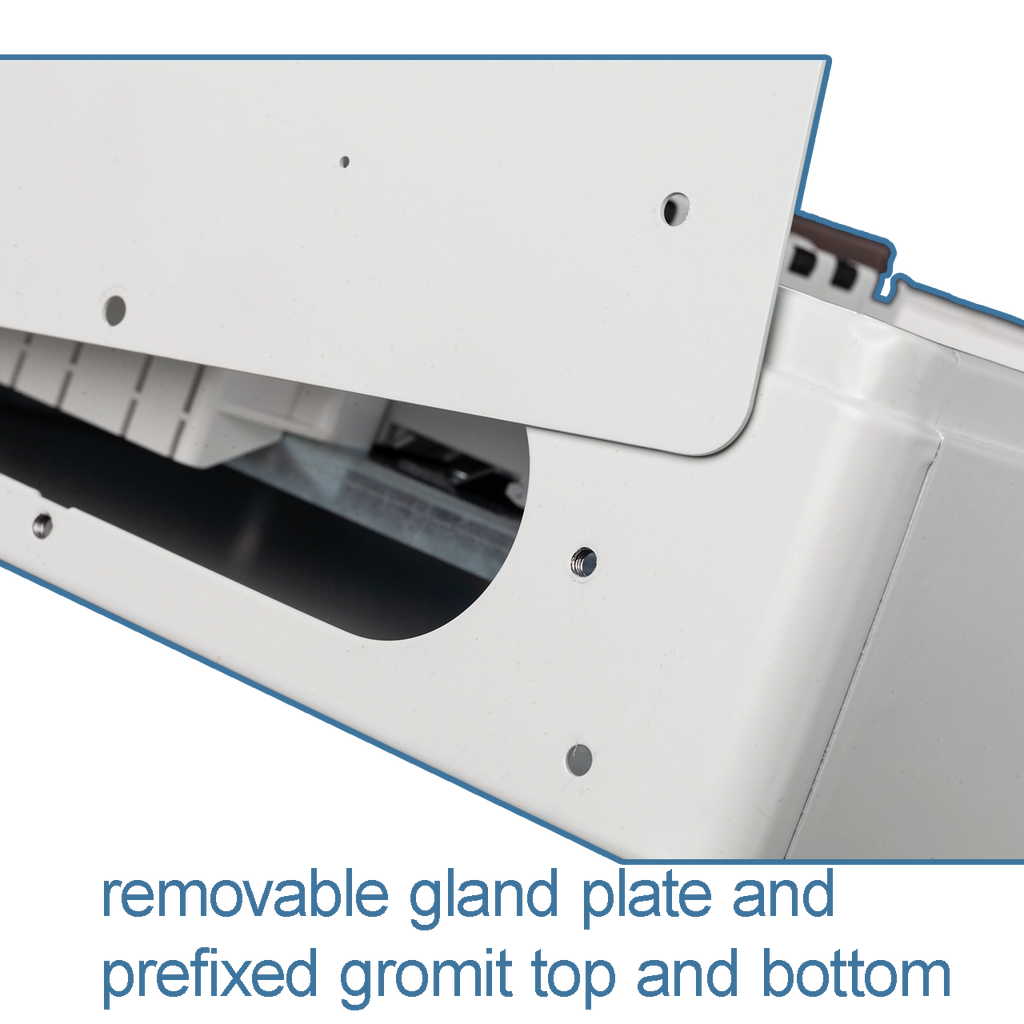

- Removable gland plate for clean and adaptable cable entry
- Manufactured in compliance with BS EN 61439-3
Compare 125A 3 Phase Distribution Board Variants
| Model | Ways | Main Device | SPD |
|---|---|---|---|
| WTPN04-125SP | 4 | 125A 4-pole Main Switch | Type 2 SPD |
| WTPN06-125SP | 6 | 125A 4-pole Main Switch | Type 2 SPD |
| WTPN08-125SP (This Product) | 8 | 125A 4-pole Main Switch | Type 2 SPD |
| WTPN12-125SP | 12 | 125A 4-pole Main Switch | Type 2 SPD |
| WTPN16-125SP | 16 | 125A 4-pole Main Switch | Type 2 SPD |
| WTPN24-125SP | 24 | 125A 4-pole Main Switch | Type 2 SPD |
What type of installs suit an 8-way three-phase board?
The 8-way model is well suited to medium-sized commercial units, retail spaces, workshops, and light industrial sites with multiple three-phase circuits.
Does this board include surge protection?
Yes. All WTPN boards are supplied with an integrated Type 2 SPD as standard.
Is a 3-pole MCB included with this board?
Yes. The WTPN08-125SP includes a 3-pole 32A MCB as part of the standard configuration.
Can this replace a 4 or 6-way board?
Yes. If future expansion is expected, the 8-way board provides additional capacity without moving up to the larger 12 or 16-way enclosures.
Which breakers are compatible with this board?
This board accepts our full range of 6kA MCBs and RCBOs without modification.
- Model: WTPN08-125SP
- Rated Current: 125A
- Ways: 8
- Main Switch: 125A 4-pole isolator
- Outgoing Protection: 3-pole 32A MCB (included)
- Surge Protection: Type 2 SPD (integrated)
- Device Compatibility: Accepts up to 6kA MCBs and RCBOs
- Construction: 1.2mm steel enclosure, IP40
- Compliance: BS EN 61439-3

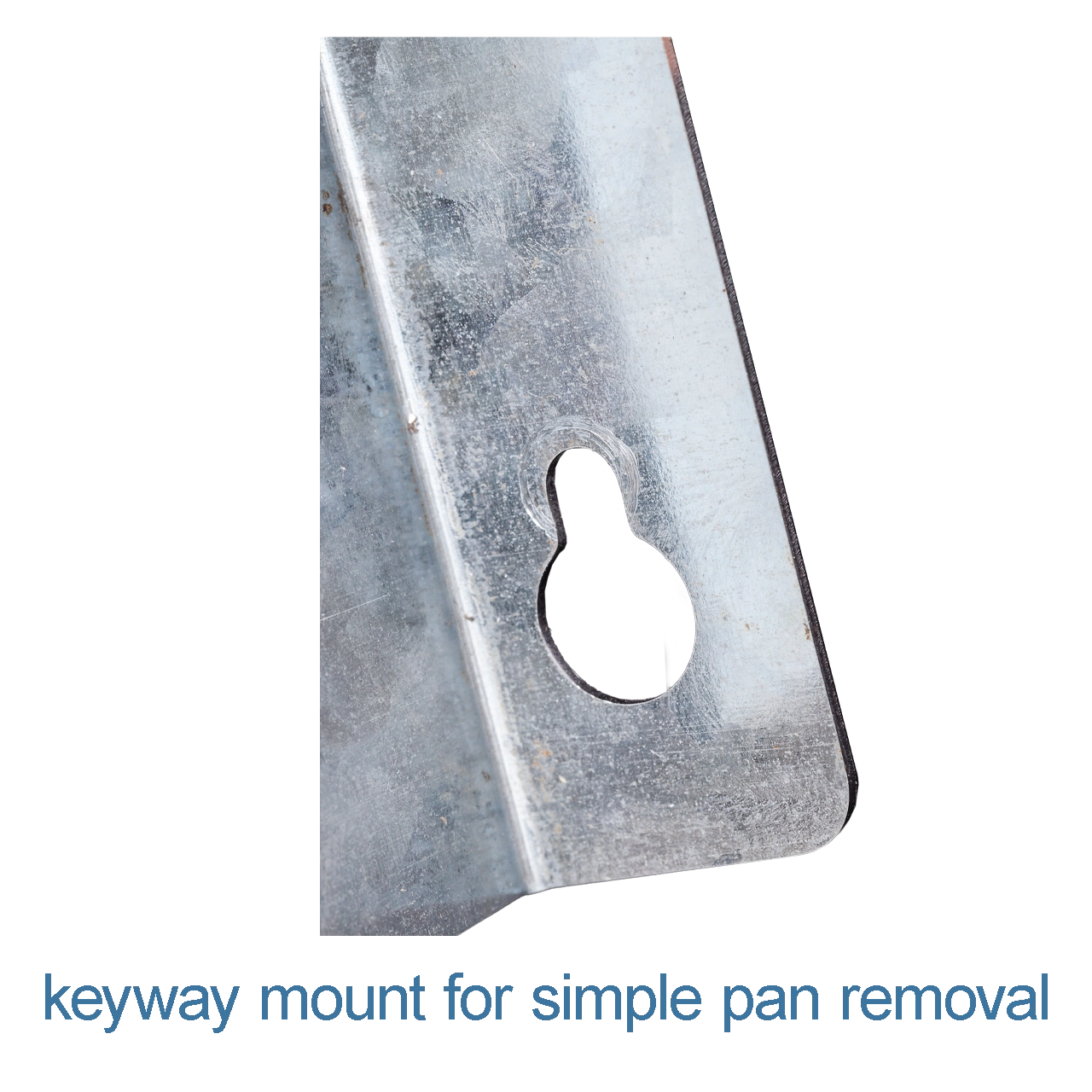

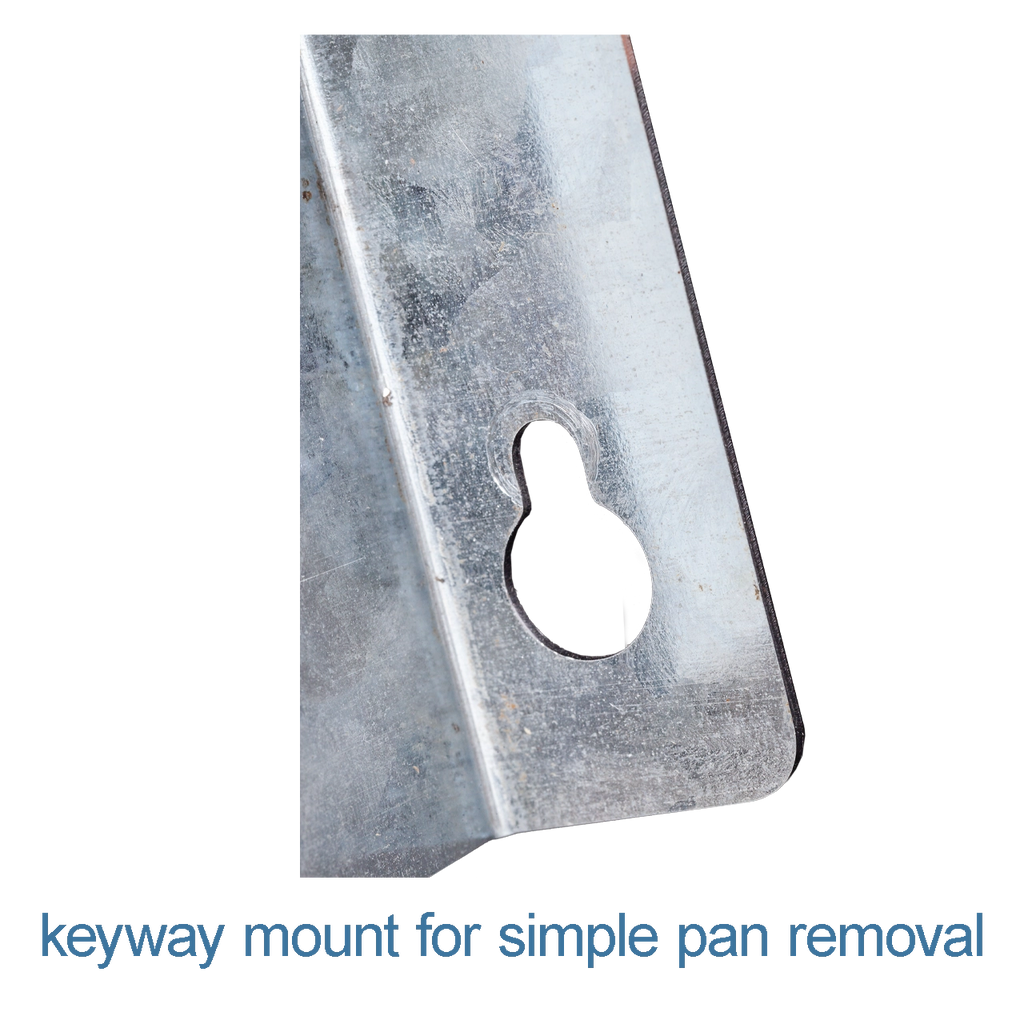

- Mounting: Keyhole wall mount
This board is supplied pre-configured and ready for installation by a qualified electrician.
- Keep SPD earth connections as short as possible for effective surge protection
- Allow adequate space for the 8-way enclosure footprint
- Use suitable glands with the removable gland plate for tidy cable entry
- Verify main switch operation and carry out full testing prior to handover
