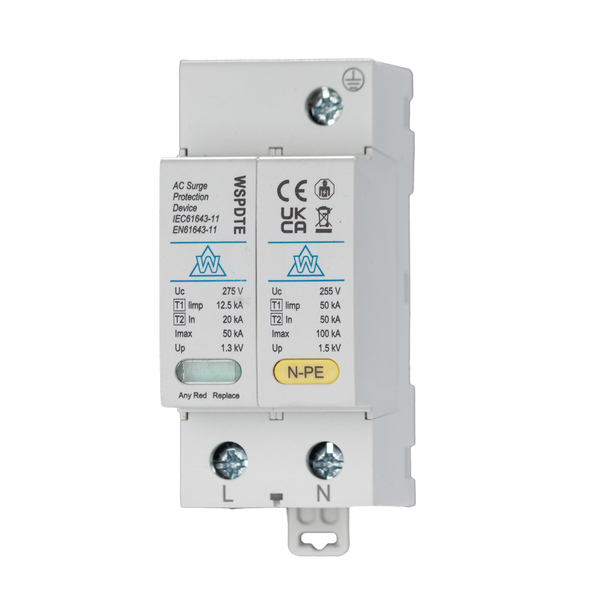

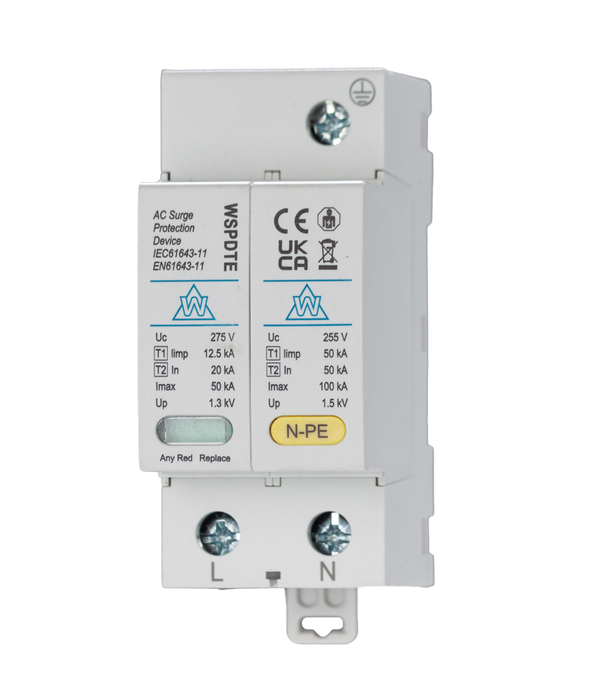

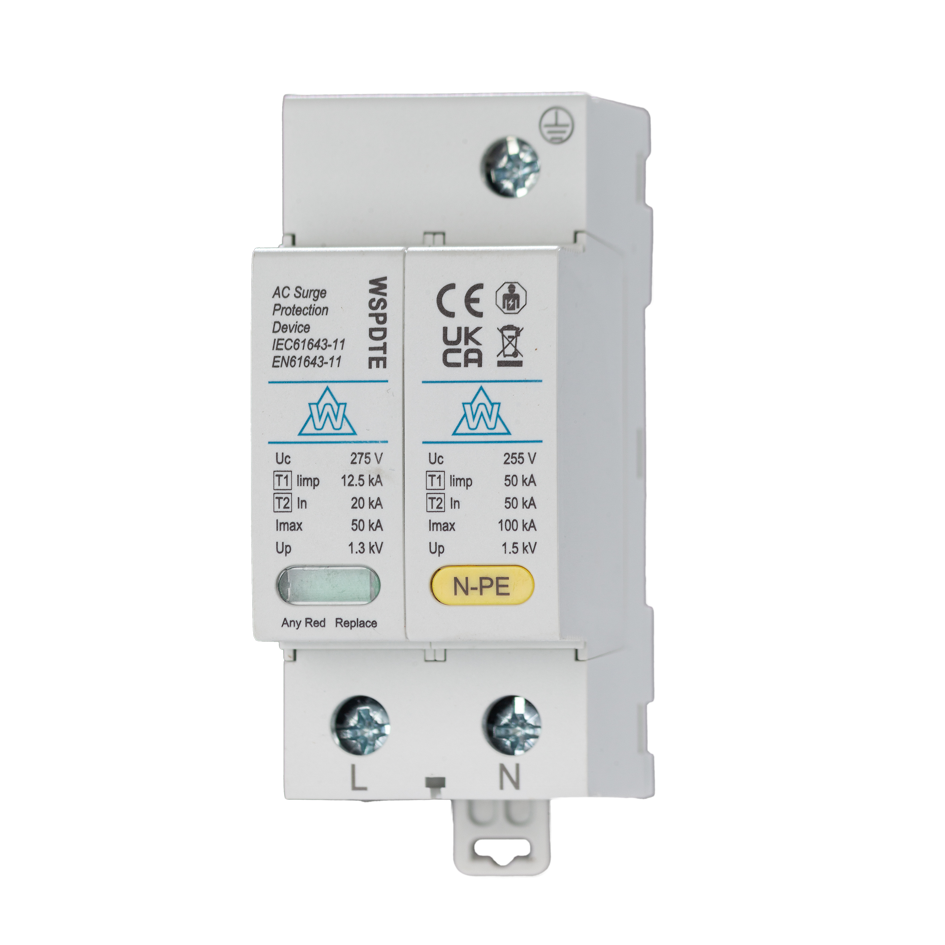

WSPDTE-2 Surge Protection Device (1P+N, Type 1+2)
18th Ed. Compliant
2-Year Warranty
UK Stock
Free Delivery £80+
Secure Payments With
The WSPDTE-2 is a 1P+N Type 1+2 AC surge protection device designed for single-phase incoming supplies where both lightning current discharge and transient overvoltage protection are required. It is typically specified on installations with external lightning risk, overhead supplies, or exposed locations. By combining Type 1 lightning protection with Type...
The WSPDTE-2 is a 1P+N Type 1+2 AC surge protection device designed for single-phase incoming supplies where both lightning current discharge and transient overvoltage protection are required. It is typically specified on installations with external lightning risk, overhead supplies, or exposed locations.
By combining Type 1 lightning protection with Type 2 surge suppression, the WSPDTE-2 provides coordinated protection at the origin of the installation, helping prevent high-energy surge events from reaching downstream circuits and sensitive equipment. Its compact 36mm DIN rail footprint allows clean integration into single-phase consumer units and distribution boards.
Installer Tip: Ideal where a single-phase intake requires both lightning protection and downstream surge suppression in one device.
Key Features
- Type 1+2 AC SPD – combined lightning current discharge and surge protection
- 1P+N configuration – suitable for single-phase installations
- 40kA discharge capacity – handles high-energy surge events
- Compact 36mm width – 2-module DIN rail format
- Designed for installation at the origin of the installation
- Suitable for domestic, commercial, and light industrial use where specified
- Compatible with TT and TN earthing systems
- Manufactured in accordance with IEC / EN 61643-11
Compare WSPDTE Surge Protection Devices
| Model | Configuration | SPD Type | Typical Use |
|---|---|---|---|
| WSPDTE-2 (This Product) | 1P+N | Type 1+2 | Single-phase incoming supply with lightning risk |
| WSPDTE-4 | 3P+N | Type 1+2 | Three-phase incoming supply with combined lightning and surge protection |
What is a Type 1+2 surge protection device used for?
Type 1+2 SPDs provide combined lightning current discharge and transient overvoltage protection, allowing them to be installed at the origin of the installation without requiring separate devices.
Is the WSPDTE-2 suitable for domestic installations?
Yes, where a lightning risk assessment specifies the need for combined Type 1 and Type 2 protection on a single-phase supply.
Where should this SPD be installed?
It should be installed as close as possible to the incoming supply terminals to minimise conductor length.
Which earthing systems are supported?
The WSPDTE-2 supports TT and TN earthing systems when installed correctly.
How much DIN rail space does it require?
The device occupies 36mm of DIN rail space, equivalent to two standard modules.
- Model: WSPDTE-2
- SPD Type: Type 1+2 AC
- Poles: 1P+N
- Discharge Capacity: 40kA
- Voltage: 230V AC
- Earthing Systems: TT, TN
- Mounting: DIN rail
- Module Width: 36mm
- Dimensions (WxHxD): 36 × 90 × 65mm
- Compliance: IEC / EN 61643-11
This device must be installed by a qualified electrician and coordinated correctly with the installation’s protective devices.
- Install as close as possible to the incoming supply terminals
- Keep earth conductors short to maintain effective discharge paths
- Confirm suitability based on lightning risk assessment
- Test and verify installation prior to energising
