Linian SuperClip Black 12–14mm / 15–18mm – Fire-Rated Cable Fixing Clip (Pack of 25)

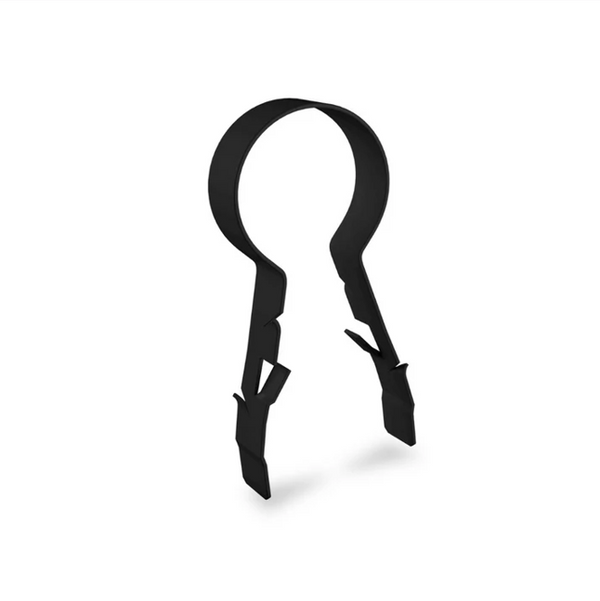

The LINIAN SuperClip™ Black is a premium fire-rated cable fixing clip, engineered for fast, safe, and compliant installation of SWA, twin & earth, FP, NYY-J, conduit, and bunched cables. Its single-component design means no plugs, screws, washers, or cleats - simply drill, slide over the cable, and push into place....
The LINIAN SuperClip™ Black is a premium fire-rated cable fixing clip, engineered for fast, safe, and compliant installation of SWA, twin & earth, FP, NYY-J, conduit, and bunched cables. Its single-component design means no plugs, screws, washers, or cleats - simply drill, slide over the cable, and push into place. Perfect for electricians who need a secure, 18th Edition-compliant fixing that saves time on site.
- Fire-rated to >1200°C with BS EN 50200 (120 min) and DIN 4102-12 (90 min) compliance
- Corrosion-resistant & UV stable - suitable for indoor and outdoor use
- Single-point fixing - no additional components required
- Supports up to 44kg tensile load
- Available in 12–14mm (CC6) or 15–18mm (CC7) cable sizes

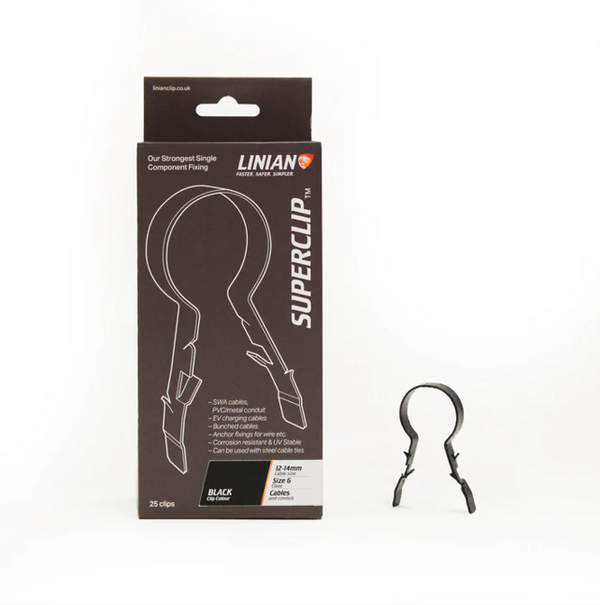

- Sold in packs of 25 - black finish for neat, visible runs
What cables can this clip hold?
It’s suitable for SWA, PVC/metal conduit, FP, NYY-J, bunched cables, and outdoor trunking.
Can it be used outdoors?
Yes - the clip is UV stable and corrosion resistant for internal or external use.
Is it 18th Edition compliant?
Yes - the LINIAN SuperClip™ meets the fire-resistant cable support requirements of BS 7671:2018 (Amendment 2).
- Colour: Black
- Size Range: 12–14mm (CC6) or 15–18mm (CC7) overall cable diameter
- Recommended Spacing: 300mm
- Hole Diameter: 10mm (±0.5mm)
- Hole Depth: 40mm
- Max Tensile Load: 44kg
- Material: Corrosion-resistant, UV-stable steel
- Fire Rating: BS EN 50200 (120 minutes), DIN 4102-12 (90 minutes)
- Certifications: CE & CA Certified
- Made in: Britain

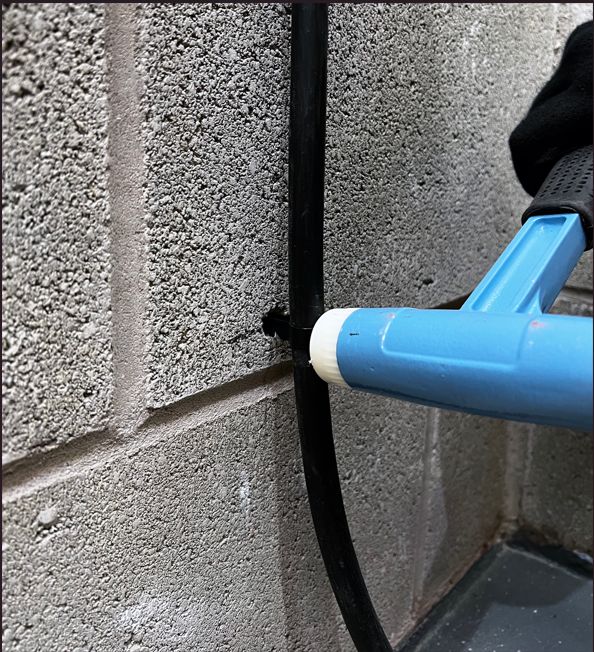

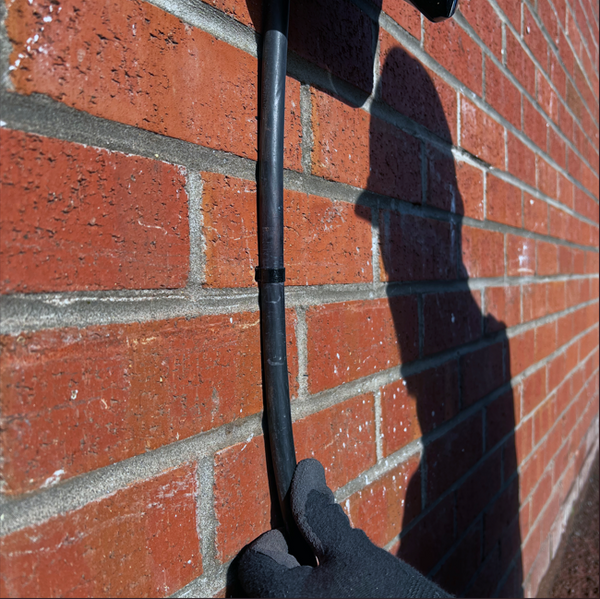

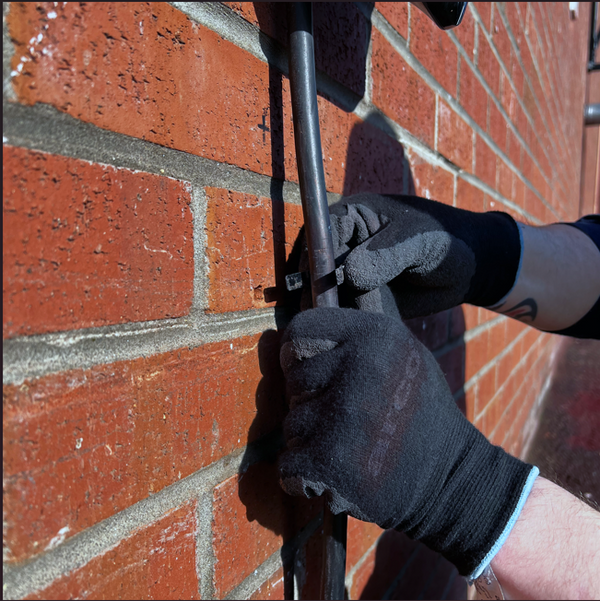

Final installation must be carried out by a qualified electrician. The LINIAN SuperClip™ is designed for single-hole fixing directly into suitable substrates, removing the need for plugs or screws.
- Drill a 10mm hole to 40mm depth
- Slide clip over the cable or conduit
- Push clip directly into the drilled hole until secure
- For best results, follow manufacturer spacing recommendations
