Meeting Manufacturer Requirements for Vaillant Heat Pumps

Posted by: Michael Hickey - 15/09/2025

Vaillant heat pumps are one of the most common renewable systems fitted across the UK. But like all inverter-driven units, they come with strict electrical requirements that installers must meet to avoid nuisance tripping, warranty issues, and failed inspections. This guide explains the key manufacturer expectations and how to meet them with compliant consumer units, RCDs, and surge protection devices.

Why Manufacturer Requirements Matter

Manufacturer requirements aren’t just paperwork - they decide whether your install passes inspection and keeps its warranty intact.

Warranty cover: Vaillant require installs to match their manual specs. Wrong RCDs or missing SPDs can void protection.
Inspection checks: Commissioning engineers will confirm breaker, RCD, and surge protection compliance.
Reduced callbacks: Following the spec avoids nuisance trips and failed tests.

RCD & Breaker Requirements

Vaillant heat pumps use inverter-driven compressors, which means the wrong RCD type can cause repeated nuisance trips. Always confirm:

Dedicated circuit: The heat pump must be on its own breaker - no shared loads.

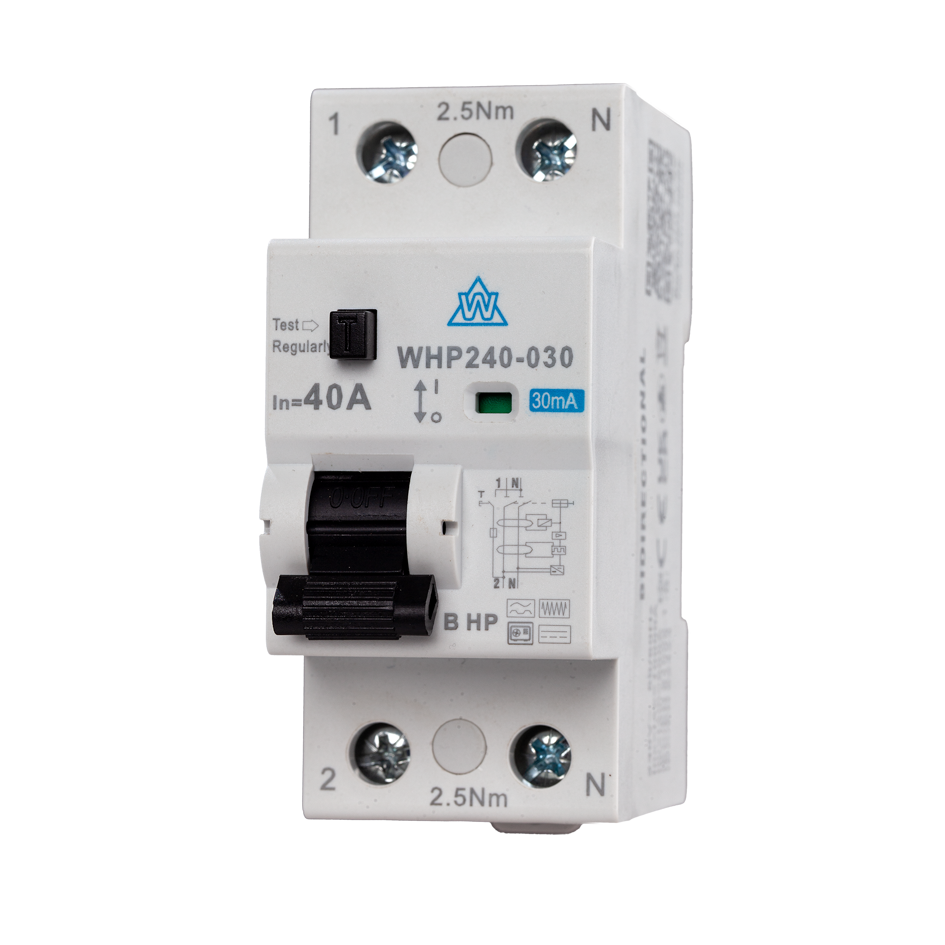

Correct RCD type: Most Vaillant models require a Type B RCD to detect smooth DC leakage.
Breaker allocation: Use a correctly rated MCB or RCBO sized to the unit’s demand.

Surge Protection for Vaillant Heat Pumps

Vaillant’s control electronics are sensitive to voltage spikes. The 18th Edition requires SPDs on most new circuits, and Vaillant commissioning checks look for surge protection in place.

We recommend fitting a Type 2 Surge Protection Device either in the main board or in a dedicated heat pump unit.

Consumer Unit Considerations

A dedicated board is often the cleanest way to meet Vaillant’s requirements:

Use Heat Pump Consumer Units pre-configured with surge and RCD protection.
If installing outdoors, choose an IP65-rated enclosure to protect against damp and dust.
Check space for RCBOs or hybrid add-ons like PV and battery storage.

PME & Earthing Checks

Vaillant manuals flag correct earthing arrangements. On a PME (TN-C-S) supply, confirm bonding and consider PME fault protection if the system integrates with EV chargers or solar.

Explore PME Fault Detection Units for hybrid installs needing full compliance.

Post-Install & Commissioning

Before handing over, make sure you’ve ticked off the essentials:

Test RCD trip times with the heat pump connected.
Confirm SPD earth connection is short and secure.
Record disconnection times and breaker details in the EIC.
Cross-check your log against Vaillant’s commissioning sheet.

FAQs

Installers often ask the same questions when fitting Vaillant heat pumps. Here are the most common queries answered clearly and to the point.

Do Vaillant heat pumps require Type B RCDs?

Yes. Inverter-driven models typically require Type B RCDs for smooth DC fault detection.

Is surge protection mandatory for Vaillant installs?

Yes in most cases. The 18th Edition requires it, and Vaillant manuals recommend it to protect control boards.

Can I connect a Vaillant heat pump to an existing consumer unit?

Only if it has spare capacity, correct RCD type, and surge protection. Otherwise, a dedicated Heat Pump Consumer Unit is usually the best option.

What happens if the wrong RCD is fitted?

Using the wrong type (e.g. Type AC or standard A) may cause nuisance tripping or leave DC faults undetected, risking inverter damage.

Conclusion

Meeting Vaillant’s manufacturer requirements isn’t just box-ticking - it protects the system, ensures warranty cover, and avoids costly call-backs. By using the right RCDs, SPDs, and compliant consumer units, you can deliver installs that pass inspection first time.
