EV Connection Unit with 100A Main Switch/32B MCB/Surge Protection/Kwh Meter
18th Ed. Compliant
2-Year Warranty
UK Stock
Free Delivery £30+
Secure Payments With
This 5-module EV and Solar Distribution Board includes a 100A main switch, 32A B Curve MCB, Type 2 surge protection device (SPD), and a built-in kWh meter board – offering full protection, isolation, and energy monitoring in a single, compact unit. Ideal for electric vehicle charger installs and small solar...

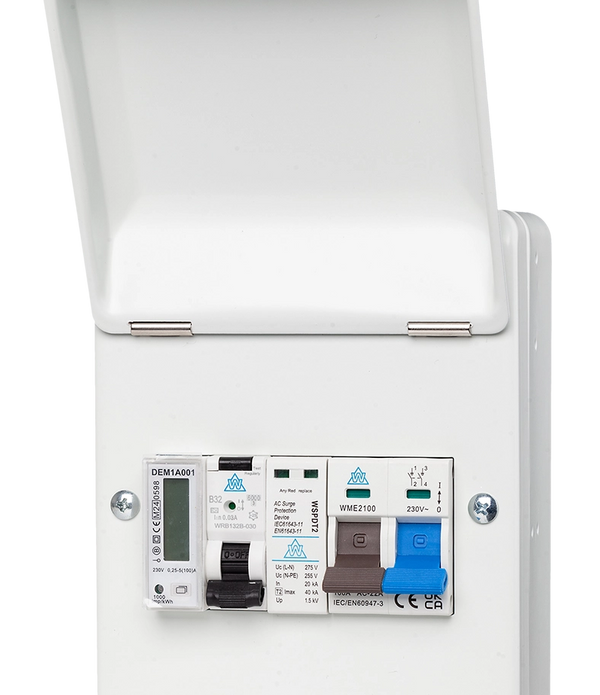

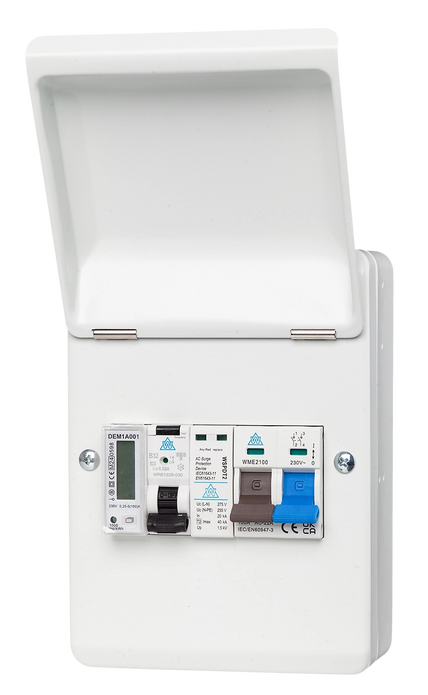

This 5-module EV and Solar Distribution Board includes a 100A main switch, 32A B Curve MCB, Type 2 surge protection device (SPD), and a built-in kWh meter board – offering full protection, isolation, and energy monitoring in a single, compact unit.
Ideal for electric vehicle charger installs and small solar PV systems, this board is supplied pre-wired and built to order, making it a fast, regulation-ready solution for installers working under 18th Edition requirements.
- 100A Double Pole Main Switch – full isolation of incoming supply
- 32A B Curve MCB – overload and short-circuit protection
- Type 2 SPD – protects circuits from surges and transients

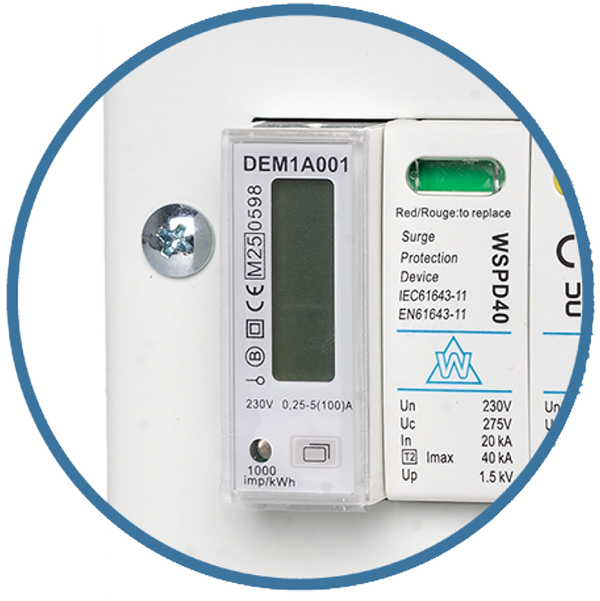

- Built-in kWh Meter – live energy monitoring for EV or PV
- Compact 5-module board: 110mm (W) x 175mm (H) x 91mm (D)
Commonly used as an EV charger incomer unit or a solar PV supply board with surge protection. Suitable for domestic garages, outdoor walls (with IP-rated housing), or internal plant rooms.
This unit is built to order – please allow 2–3 working days from order date.
Is this suitable for EV charger installations?
Yes – it's designed as an incomer unit for EV setups and includes all required protective devices including surge protection and kWh metering. For alternative EV boards, see our 4-Way RCBO EV Protection Unit.
Can this also be used for solar PV?
Absolutely. This unit can isolate and protect PV systems and is especially useful where a meter and SPD are also required. For larger solar applications, consider the 3 Phase Surge Protection Enclosure.
Can I change the MCB size?
Yes – other MCB options are available. If you require a different amperage than 32A, check our 4 Pole 10kA MCB range or contact us for custom builds.
- Board Type: EV/Solar Consumer Unit
- Modules: 5
- Main Switch: 100A Double Pole
- MCB: 32A B Curve (replaceable if required)
- SPD: Type 2 Surge Protection Device
- Meter: kWh energy monitoring included
- Dimensions: 110mm (W) x 175mm (H) x 91mm (D)
- Compliance: BS EN 61439-3 / BS 7671 Amendment 2
This board should be installed upstream of your EV charger or solar inverter. The included SPD helps protect sensitive electronics from grid and environmental surges. Meter is pre-wired and provides accurate usage tracking for DNO or billing purposes.
- Mount securely to DIN rail within enclosure or backplate
- Use gland entry seals if installed outdoors
- Allow for ventilation space where possible
- Only to be installed by a qualified electrician
