3 Pole 100A Auto Resetting MCBs WARD3100C
The WCED WARD3100C is a 3 Pole 100A Auto Resetting MCB designed to provide overload, short-circuit, and supply voltage monitoring protection. Unlike a standard breaker, this device automatically resets after safe conditions are restored, reducing downtime and the need for manual intervention on site. Built for EV charging, solar, and...
The WCED WARD3100C is a 3 Pole 100A Auto Resetting MCB designed to provide overload, short-circuit, and supply voltage monitoring protection. Unlike a standard breaker, this device automatically resets after safe conditions are restored, reducing downtime and the need for manual intervention on site.
Built for EV charging, solar, and PME installs, it helps protect against under-voltage and over-voltage events while ensuring compliance with BS 7671 (18th Edition). Compact and durable, it’s suited to domestic, commercial, and light industrial distribution systems.
- 3 Pole, 100A rated
- Auto reset after under-voltage events
- Manual reset required after over-voltage events for added safety
- Provides PME fault protection – no earth rod required
- Protects against overload and short circuit faults
- Complies with BS EN 60898-1, BS EN 60947, and BS EN 50557
- Compact dimensions: 71.2mm (W) x 82.4mm (H) x 78.5mm (D)

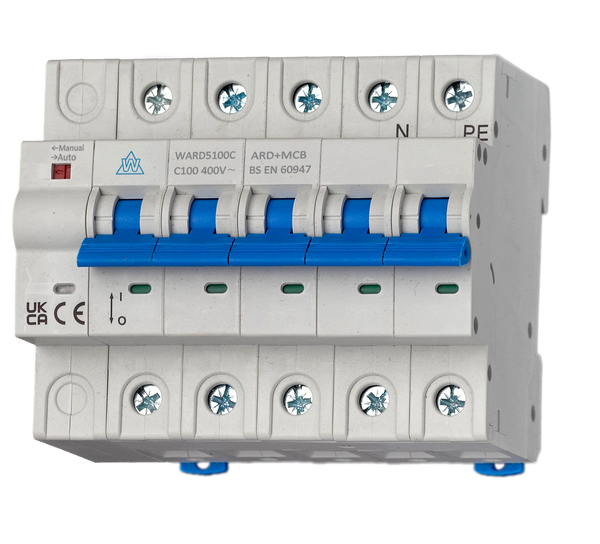

Note: Image shown is representative (5 pole version). Actual supplied product is 3 pole 100A.
What makes an auto-reset MCB different from a standard MCB?
A standard MCB requires manual resetting after a fault. An auto-reset MCB like the WARD3100C will automatically restore supply after under-voltage conditions are resolved, saving time and reducing site visits.
Does this device include PME protection?
Yes. It provides PME fault protection, meaning no earth rod is required for most EV charger installs.
When does the unit require manual reset?
After over-voltage trips, the device must be reset manually to ensure safety and compliance with wiring regulations.
Is this product suitable for EV and solar applications?
Yes. The WARD3100C is specifically suited to EV charging and solar installs where voltage monitoring, automatic reset, and PME fault protection are critical.
- Type: Automatic Resetting MCB
- Poles: 3 Pole
- Rated Current: 100A
- Voltage Monitoring: Disconnects at <207V or >253V
- Reset: Automatic after under-voltage, manual after over-voltage
- Protection: Overload and short circuit
- Standards: BS EN 60898-1, BS EN 60947, BS EN 50557
- Dimensions (WxHxD): 71.2 x 82.4 x 78.5mm
This auto-reset MCB must be installed by a qualified electrician in accordance with BS 7671. It is particularly suited to EV, solar, and PME applications where continuous protection and reduced downtime are critical.
- Mount on standard 35mm DIN rail
- Ensure correct polarity and secure terminations
- Confirm system voltage and earthing arrangement before energising
- Manual reset is required after over-voltage trips for safety compliance
