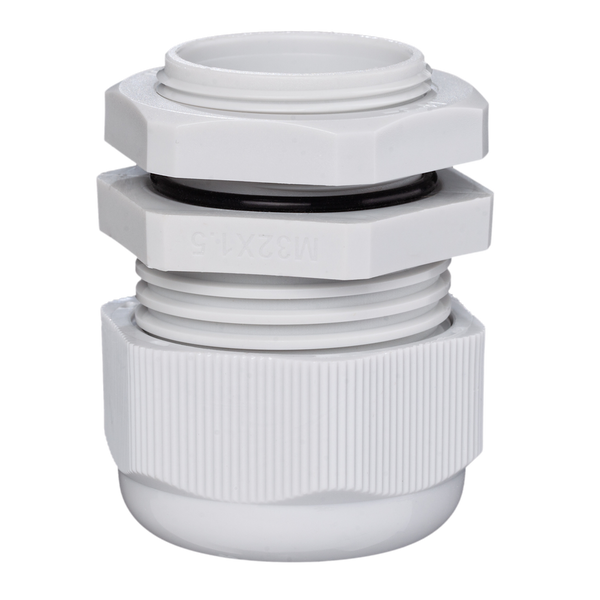

The GTG3225 is a 32mm grey meter tails gland designed for larger installations requiring two 25mm 6181Y meter tails and one 16mm 6491X green/yellow earth conductor. It provides a secure, tidy, and compliant entry point into consumer units, isolator boxes, and meter cabinets. Using a dedicated tails gland reduces the...
The GTG3225 is a 32mm grey meter tails gland designed for larger installations requiring two 25mm 6181Y meter tails and one 16mm 6491X green/yellow earth conductor. It provides a secure, tidy, and compliant entry point into consumer units, isolator boxes, and meter cabinets.
Using a dedicated tails gland reduces the risk of cable insulation damage, maintains the enclosure’s IP integrity, and ensures a professional finish. The GTG3225 is particularly suited to high-demand domestic installs and small commercial jobs where 25mm tails are specified by the DNO or required due to load demand. For smaller installs, see our GTG3216 Tails Gland.
Key features:

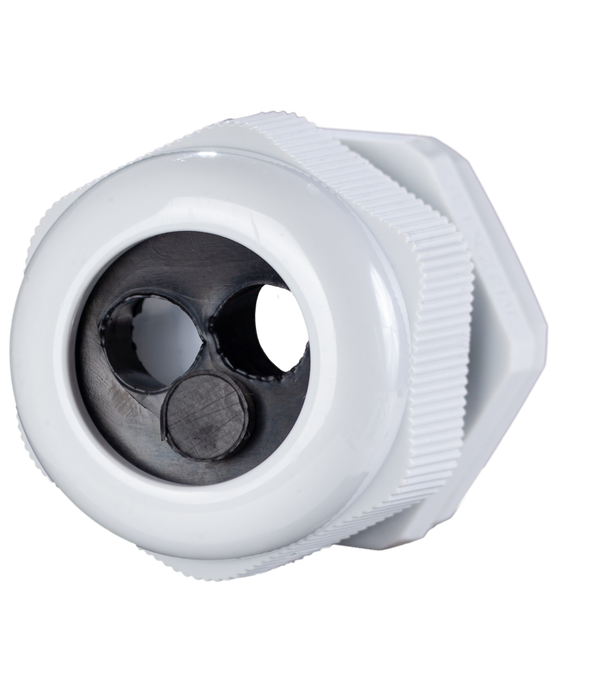

- Pre-drilled entry points for 2 × 25mm meter tails (6181Y) + 1 × 16mm earth (6491X)
- 32mm gland body – fits standard consumer unit/meter box knockouts
- Manufactured from UL-approved PA66 nylon, halogen-free
- Rated to IP68 for dust and water protection
- Provides mechanical strain relief and neat cable management
- Flame-retardant (UL94V-2) for added safety
For electricians working to the 18th Edition, this gland is a reliable and compliant way to terminate and protect 25mm meter tails during new installs or board upgrades. Pair with a 100A Meter Isolator and 100A Terminal Block for a complete meter connection setup.
What cables does this gland take?
It is pre-configured for 2 × 25mm meter tails (6181Y) and 1 × 16mm earth (6491X). For smaller tails, see our GTG3216 gland.
Is this gland waterproof?
Yes – the GTG3225 is IP68 rated, making it resistant to dust and water ingress when correctly installed. It’s especially useful alongside outdoor-ready boards such as the 8 Way IP65 EV Connection Unit.
Where is it typically used?
On consumer units, isolator boxes, and meter enclosures where 25mm tails are specified. Often combined with a meter isolator for safe supply isolation.
Why not just drill a hole?
A proper tails gland maintains the enclosure’s IP rating, protects insulation from sharp edges, and provides a professional finish. It also allows strain relief, especially important on high-capacity installs. For three-phase jobs, consider upgrading to a 125A 3 Phase Distribution Board.
- SKU: GTG3225
- Gland Size: 32mm
- Entries: 2 × 25mm (6181Y tails), 1 × 16mm (6491X earth)
- Material: UL-approved PA66 nylon
- Colour: Grey
- IP Rating: IP68
- Halogen Free: Yes
- Flame Retardancy: UL94V-2
- Confirm the knockout hole is sized correctly for a 32mm gland.
- Insert the GTG3225 gland and secure with the locknut to maintain IP rating.
- Feed the two 25mm meter tails and 16mm earth conductor through their respective entry points.
- Check for strain-free positioning and intact insulation before making terminations.
- Complete wiring in line with BS 7671 requirements.
