A high immunity RCBO is designed for circuits where a standard RCBO may be more likely to trip unnecessarily. That usually means circuits with more electrical noise, more switching activity, higher inrush currents, or connected equipment that creates a less “clean” electrical environment.
In practice, that is why high immunity RCBOs show up so often on EV charger installs, heat pumps, solar and inverter-fed circuits, motors and other demanding applications. They are not there to replace the need for correct circuit design. They are there to make the protection more stable where nuisance tripping is more likely to become a problem.
For related products and protection options, browse our High Immunity RCBOs, EV-Ready Consumer Units, Heat Pump Boards and Type A RCBOs ranges.
Quick Answer: A high immunity RCBO is an RCBO designed to be more resistant to unwanted tripping on circuits with electrical noise, transient leakage, switching effects or inrush-heavy equipment. You typically use one where a standard RCBO may be more likely to nuisance trip - especially on EV chargers, heat pumps, motors, pumps and inverter-fed circuits.
| RCBO Type | Best For | Typical Use Case |
|---|---|---|
| Standard RCBO | Simpler, cleaner circuits | Typical domestic outgoing ways with straightforward load behaviour |
| High Immunity RCBO | Circuits more prone to nuisance tripping | EV chargers, heat pumps, pumps, motors, solar and inverter-fed loads |
🧭 Jump to:
The Quick Answer
- High immunity RCBOs are designed to reduce the risk of unwanted tripping on more demanding circuits.
- They are especially useful on circuits with electrical noise, transient leakage, switching effects or higher inrush loads.
- That is why they are commonly used for EV chargers, heat pumps, motors, pumps and inverter-fed systems.
- They do not replace correct circuit design, but they can make the protection setup much more stable where nuisance tripping is otherwise likely.
Related reads: When Should You Choose a C Curve RCBO Instead of a B Curve? · What Type of RCBO Do You Need for an EV Charger Circuit? · What Circuits Need a 32A RCBO?
What a High Immunity RCBO Actually Is
A high immunity RCBO is still an RCBO. It still combines overcurrent protection with residual current protection. The difference is that it is designed to be less prone to nuisance tripping on circuits where the electrical conditions are less straightforward.
That matters because not every circuit behaves like a simple socket or lighting load. Once you get into EV chargers, inverter-fed equipment, motors, pumps and similar systems, the protection device has to cope with a much noisier electrical environment.
So when you choose a high immunity RCBO, you are not buying a “stronger” RCBO in a vague sense. You are buying one that is better suited to circuits where unwanted trips are more likely to become a problem.
Why High Immunity Matters on Modern Circuits
Modern installs are full of equipment that can make RCBO selection more important than it used to be. EV chargers, heat pumps, solar systems, pumps, motors and other electronically controlled loads can all create conditions that make a basic protection setup more likely to trip unnecessarily.
That can happen because of:
- Electrical noise
- Transient leakage
- Switching effects
- Inrush-heavy connected equipment
- Inverter-driven operation
This is exactly where high immunity devices earn their place. They help reduce the kind of callbacks and headaches that come from a circuit tripping when there is no real fault condition that should be knocking the whole thing out.
When Do You Need a High Immunity RCBO?
You should usually be looking at a high immunity RCBO when the circuit is more likely to suffer from nuisance tripping because of the kind of load connected to it.
- EV charger circuits
- Heat pump circuits
- Solar and inverter-fed installations
- Pumps and motors
- Commercial or plant circuits with messier electrical behaviour
This does not mean every single circuit on a board needs high immunity protection. But where the load profile points in that direction, it is usually the smarter choice.
Installer’s Pick: For common high-immunity RCBO demand, the WER32C-030, WER40C-030 and WRB140C-030 are strong options for EV, heat pump and inrush-heavy circuits.
Why EV Chargers, Heat Pumps and Motors Often Need High Immunity RCBOs
These are some of the clearest use cases because they combine exactly the kind of electrical behaviour that can make nuisance tripping more likely.
- EV chargers can introduce charger electronics, leakage behaviour and switching characteristics that make a cleaner protection choice worthwhile.
- Heat pumps often involve inverter-driven operation and compressor-related behaviour that can push you toward a more stable RCBO setup.
- Motors and pumps can bring in start-up current and switching characteristics that do not suit every standard device equally well.
That is why so many of your EV kits and dedicated protection units already use high immunity Type A RCBOs as part of the overall board setup.
B Curve vs C Curve on High Immunity RCBOs
High immunity and curve type are not the same thing. You still need to choose the right B Curve or C Curve device based on the circuit and connected equipment.
- B Curve is often used where the circuit is less inrush-heavy
- C Curve is often a better fit where start-up current or inrush characteristics are more demanding
That means a circuit can need a high immunity B Curve RCBO or a high immunity C Curve RCBO depending on the application. The “high immunity” part helps with nuisance tripping resistance. The curve choice still depends on the load.
Related read: When Should You Choose a C Curve RCBO Instead of a B Curve?

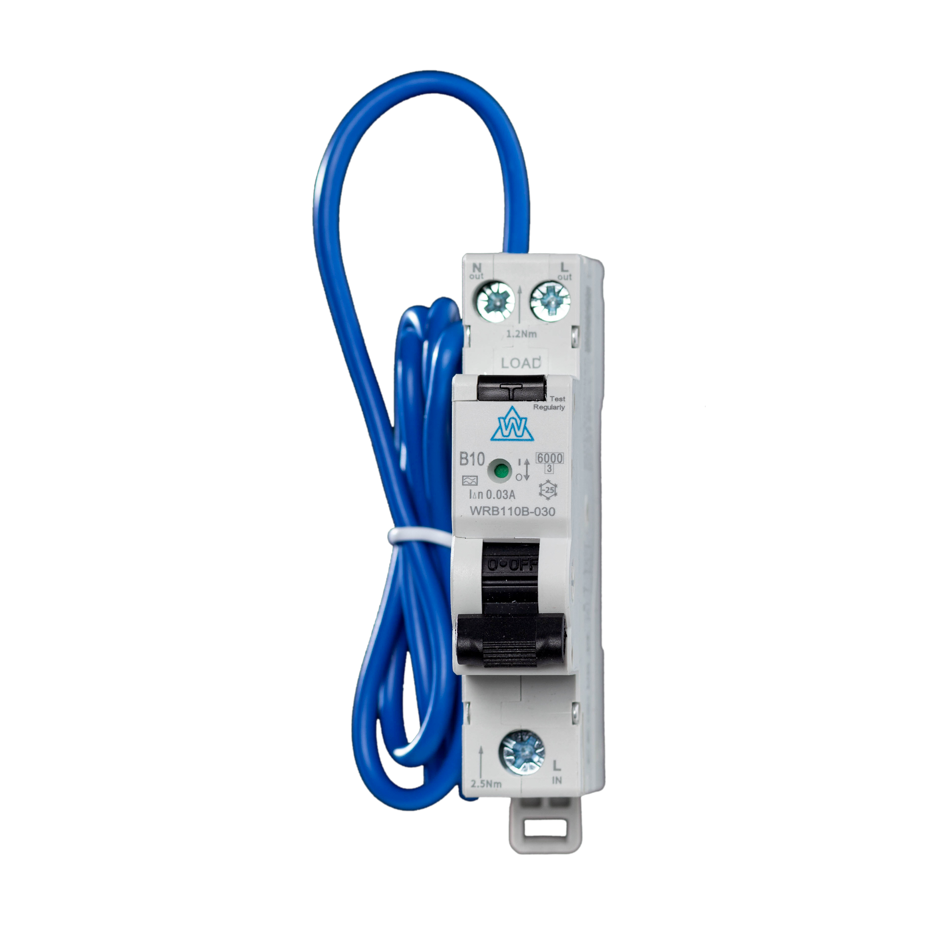

Mini vs Standard High Immunity RCBOs
Power & Data UK stocks both mini high immunity RCBOs and fuller RCBO-based enclosures or kits, so the format choice matters too.
| Format | Best For | Example |
|---|---|---|
| Mini High Immunity RCBO | Tight board space, compact installs, single module preference | WRB132C-030 |
| Standard / Kit-Based High Immunity Setup | Dedicated EV, outdoor or integrated protection setups | WMIP40CSP |
So the decision is not just whether you need high immunity. It is also whether you need a compact RCBO for an existing board, or a more complete enclosure or EV kit with that RCBO already built in.
Common Mistakes to Avoid
- Assuming high immunity means a different RCD type – it is about nuisance-tripping resistance, not replacing Type A vs Type B thinking.
- Using a standard RCBO on a circuit that clearly has more difficult load behaviour – that can create avoidable callbacks.
- Ignoring curve type – high immunity does not remove the need to choose between B and C curve properly.
- Thinking every circuit needs high immunity – many standard circuits do not.
- Only looking at current rating – the connected load and circuit behaviour matter just as much.
Regulation Reminder: A high immunity RCBO does not replace the need for correct circuit design and correct device selection. It is there to improve stability on circuits where the electrical behaviour is more likely to cause unwanted tripping.
Products & Categories That Fit the Job
- Mini High Immunity RCBOs: WRB132C-030 · WRB140C-030 · WRB132B-030
- Standard High Immunity RCBOs: WER32C-030 · WER40C-030 · WER40B-030
- EV / Outdoor High Immunity Units: WMIP32CSP · WMEV332C · WPRC32CSP
- Category Hubs: High Immunity RCBOs · Type A RCBOs · EV-Ready Consumer Units
FAQs
What does a high immunity RCBO actually do?
It helps reduce the risk of unwanted tripping on circuits with noisier electrical behaviour, transient leakage, switching effects or inrush-heavy equipment.
Are high immunity RCBOs good for EV chargers?
Yes, they are commonly used on EV charger circuits because those installs can be more prone to nuisance tripping than simpler domestic loads.
Do heat pumps need high immunity RCBOs?
Often they are a very sensible choice, especially where inverter-driven operation or more difficult load behaviour makes a standard device less stable.
What is the difference between a high immunity RCBO and a Type A or Type B device?
High immunity describes how resistant the device is to unwanted tripping. Type A or Type B describes the type of residual current the protection is designed to detect.
Should I choose B Curve or C Curve on a high immunity RCBO?
That still depends on the load and circuit characteristics. High immunity does not replace the need to choose the right curve for the application.
Final Word
A high immunity RCBO is the right choice when the circuit is more likely to suffer from nuisance tripping because of the kind of equipment connected to it. That is why they are so common on EV chargers, heat pumps, motors, pumps and inverter-fed systems.
The goal is not to over-spec every circuit for the sake of it. It is to choose the protection that best matches the real electrical behaviour of the load. On the right circuit, a high immunity RCBO can save a lot of avoidable headaches later.
