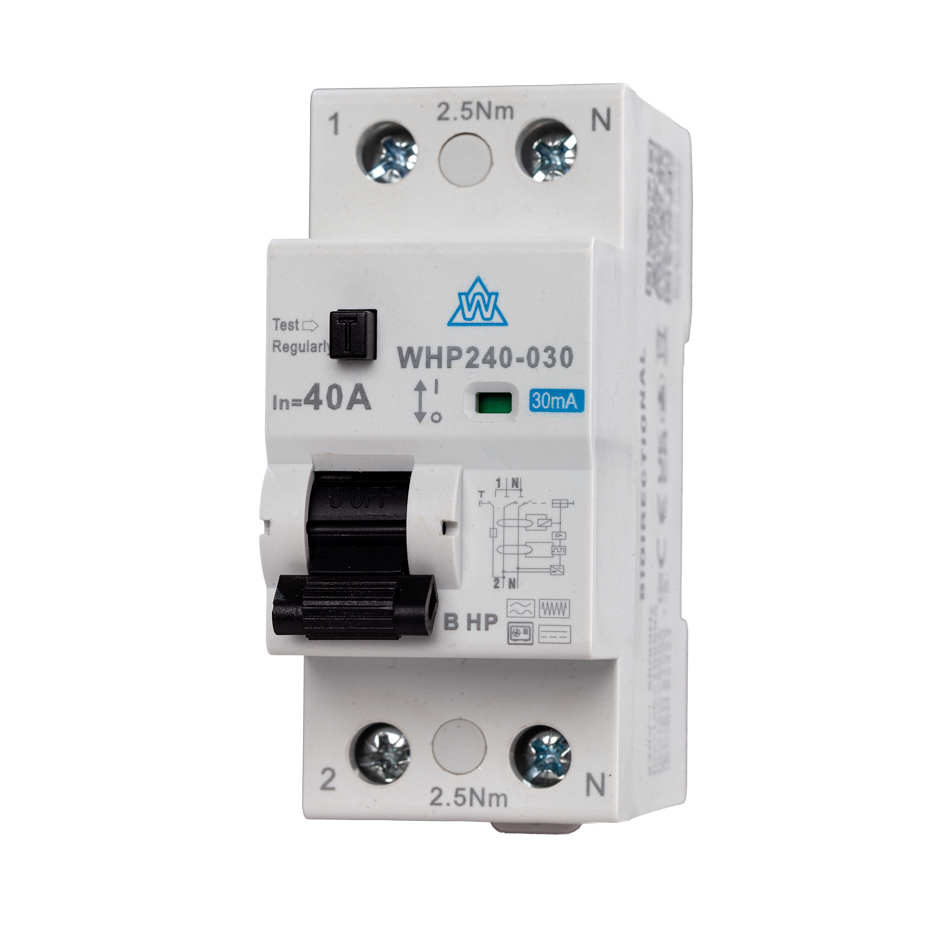

Variable speed drives change the protection conversation completely. Once you are dealing with a drive, frequency converter or inverter-led motor control setup, the usual “standard RCD will do” assumption can become a problem very quickly.
That is why Type B RCDs are so often mentioned around VFDs, drives and other power-conversion equipment. These systems can create fault-current conditions that a standard Type A or Type AC device may not be suitable for, especially on three-phase applications.
For related products and protection options, browse our Type B RCDs, Three Phase, 3-Phase RCDs and Surge Protection ranges.
Quick Answer: Type B RCDs are often the right choice for VFDs, drives and other frequency-converter loads because these systems can create smooth DC residual current and other fault-current characteristics that standard RCD types may not handle reliably. Always check the drive manufacturer’s instructions, but on many three-phase converter-based applications, Type B is the correct protection route.
| Drive Application | Likely RCD Direction | Why |
|---|---|---|
| Three-phase VFD / inverter drive | Type B often required | Power conversion can introduce DC-offset fault-current behaviour |
| Manufacturer specifically calls for Type B | Use Type B | The drive design determines the correct protective arrangement |
| Smaller / simpler frequency-controlled equipment | Depends on equipment design | Not every variable-speed application is identical |
🧭 Jump to:
The Quick Answer
- VFDs and drives often point toward Type B RCD protection, especially on three-phase converter-based applications.
- The reason is not just “because it is a motor”. It is because the drive contains power electronics that can create DC-sensitive fault-current conditions.
- In many cases, that makes Type B the right protection route.
- The first check is always the manufacturer’s instructions.
Related reads: What Is a Type B RCD? · Can a Type B RCD Nuisance Trip? · When Do You Need a 4-Pole Type B RCD?
Why VFDs and Drives Change RCD Selection
A variable speed drive is not a simple load. It is a power-conversion device. That means it can affect the shape and behaviour of fault currents in ways that standard AC-only thinking does not cover properly.
This is the core reason Type B RCDs show up around drives. The drive contains a converter stage, and converter stages can create smooth DC residual current or DC-offset behaviour that may interfere with the correct operation of unsuitable RCD types.
So the question is not just “is there an RCD on the circuit?” It is: is the RCD actually suitable for a drive-fed circuit?
When a Type B RCD Is the Right Choice for a Drive
You are usually looking at Type B when the drive manufacturer requires it, or where the converter design means DC-sensitive protection is needed on the AC side of the installation.
- Three-phase drives are one of the clearest Type B use cases
- Frequency converters can create DC-offset / smooth DC fault-current behaviour
- Industrial motor control often needs more specialist RCD thinking than a standard outgoing circuit
- Inverter-led equipment is exactly where Type B becomes commercially and technically relevant
This is why Type B is so often described as the safer route where power-conversion equipment is involved. It removes the guesswork where DC-sensitive behaviour may be present.
Installer’s Pick: For converter-driven circuits that need standalone Type B protection, our WEV463B-030 4 Pole Type B RCD is a strong fit for many three-phase applications, while the WEV240B-030 2 Pole Type B RCD covers suitable single-phase setups.
Why Three-Phase Drive Setups Push You Toward Type B
Three-phase VFDs are one of the strongest examples of why Type B exists in the first place. Three-phase converters can create the kind of fault-current behaviour that standard RCD types are not designed to deal with reliably.
That is why many guidance sources and manufacturers point specifically to Type B on three-phase power converters. On these installs, it is often less about preference and more about suitability.
Once you are also dealing with three-phase + neutral distribution, the pole configuration matters too. If Type B is required on that kind of circuit, you are usually looking at a 4-pole device rather than a 2-pole one.
Single-Phase vs Three-Phase Drive Protection
Not every variable-speed application is identical. Some smaller or simpler frequency-controlled equipment may not point to the same protection route as a larger three-phase industrial drive.
| Drive Setup | Likely RCD Direction | Example Product |
|---|---|---|
| Single-phase converter-based circuit | Depends on equipment design / may point to 2-pole Type B | WEV240B-030 / WEV263B-030 |
| Three-phase VFD / inverter drive | Type B often required / 4-pole format common | WEV463B-030 / WEV4100B-030 |
The important thing is not to flatten all “drive” installs into one category. The exact RCD choice still depends on the converter design, phase arrangement and manufacturer instructions.
Why Drives Can Cause Tripping Problems on the Wrong RCD
Drives are also a classic source of nuisance tripping issues when the wider protection design is poor. That can come from:
- EMC / RFI filter leakage
- Inrush or start-up behaviour
- Capacitive effects in the cable and load side
- The wrong upstream or downstream device arrangement
That is why some installers only realise a standard RCD was the wrong choice when the drive is already live and the circuit starts behaving unpredictably.
Regulation Reminder: On drive-fed and converter-based circuits, the correct RCD choice is driven by the expected fault-current characteristics and the manufacturer’s instructions. Type B is commonly the correct route where smooth DC residual current may be present.
What to Check Before Choosing the RCD
Before specifying any RCD on a VFD or drive circuit, work through these checks first:
- Read the drive manufacturer’s instructions
- Confirm whether Type B is required
- Check whether the drive is single-phase or three-phase
- Review the upstream and downstream protection layout
- Check for wider issues like filter leakage, start-up behaviour and selectivity
That matters because drive circuits are exactly where a poor protection design can create repeat callbacks, unexplained trips and awkward fault-finding.
Products & Related Ranges
- 2-Pole Type B RCDs: WEV240B-030 40A 30mA · WEV263B-030 63A 30mA
- 4-Pole Type B RCDs: WEV463B-030 63A 30mA · WEV4100B-030 100A 30mA
- Browse collections: Type B RCDs · Three Phase · 3-Phase RCDs · Surge Protection
FAQs
Do VFDs always need a Type B RCD?
Not every single variable-speed application is identical, but many three-phase VFD and converter-based circuits do point toward Type B. The manufacturer’s instructions should always be checked first.
Why are Type B RCDs used with drives?
Because drives and frequency converters can create DC-sensitive fault-current conditions that unsuitable RCD types may not handle correctly.
Can I use a Type A RCD on a VFD circuit?
Only where the equipment design and manufacturer guidance allow it. On many drive-fed applications, especially three-phase, Type B is the safer and more appropriate route.
Do three-phase drives usually need a 4-pole Type B RCD?
If Type B is required on a three-phase + neutral circuit, then a 4-pole Type B RCD is usually the correct format.
Why do drives cause nuisance tripping?
Drives can introduce filter leakage, switching transients, start-up effects and coordination problems that make poorly chosen or poorly arranged RCD setups unstable.
Final Word
VFDs and drives are one of the clearest real-world cases for Type B RCD protection. Once power conversion enters the picture, the RCD choice has to match the actual fault-current behaviour of the equipment, not just the nameplate current or the fact it is “only a motor”.
If the drive instructions point to Type B, or the converter design introduces DC-sensitive conditions, that is usually the right route. The key is to spec the RCD around the real behaviour of the circuit, not generic board habits.
