Type B RCDs are often chosen precisely because they are better suited to inverter-driven circuits than standard devices. But that does not mean they can never trip unexpectedly.
If a Type B RCD keeps tripping, the cause is usually not “Type B is wrong”. More often, it points to something else in the setup - background leakage, switching transients, filter leakage, a poor discrimination setup, or a genuine earth fault that the circuit is now actually detecting properly.
For wider spec options, browse our Type B RCDs, Three Phase, Heat Pump Boards and Surge Protection ranges.
Quick Answer: Yes, a Type B RCD can nuisance trip, but when it does, the issue is often the wider circuit rather than the fact that it is a Type B. Common causes include normal leakage building too high, inverter start-up / shut-down transients, RFI filter leakage, upstream device conflicts, or a real insulation / earth fault. The answer is usually to review the whole protection setup, not just swap the RCD blindly.
| Common Cause | What It Looks Like | Typical Fix Direction |
|---|---|---|
| Background leakage too high | Trips with no obvious single fault | Review total leakage and circuit grouping |
| Inverter switching transients | Trips on start-up or shut-down | Check manufacturer guidance and overall protection layout |
| Upstream / downstream conflict | Wrong device trips first or system trips unpredictably | Review selectivity and device types in series |
| Real earth fault | Consistent tripping under the same load conditions | Test and fault-find the circuit properly |
🧭 Jump to:
The Quick Answer
- Yes, a Type B RCD can nuisance trip.
- But if it does, that does not automatically mean the device is wrong or faulty.
- On EV, solar, battery storage, heat pump and drive-based circuits, the real issue is often leakage build-up, switching behaviour or poor coordination elsewhere in the system.
- The fix is usually to review the whole protection arrangement, not just replace the RCD and hope for the best.
Related reads: What Is a Type B RCD? · Type A vs Type B RCD · Do Heat Pumps Need Type B RCD Protection?

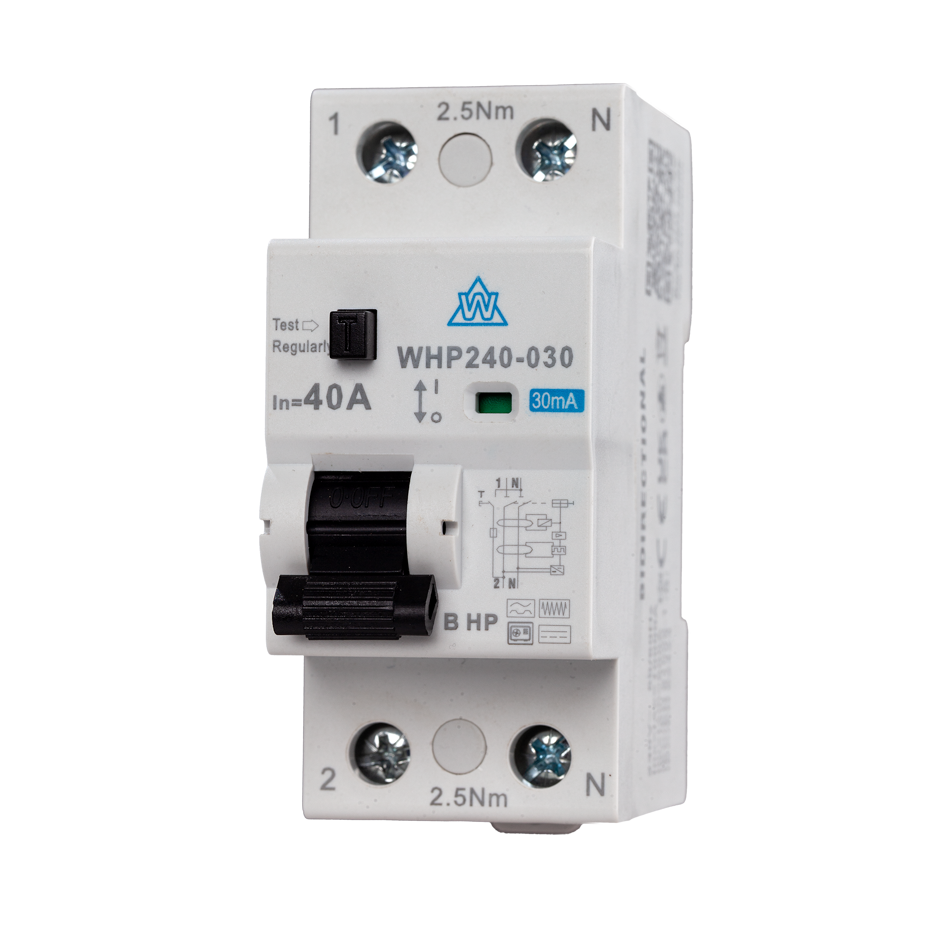

Can a Type B RCD Actually Nuisance Trip?
Yes - it absolutely can. No RCD is magic, and Type B devices are no exception. They are better suited to DC-sensitive and inverter-driven circuits than Type A or Type AC, but they can still trip where the installation conditions push leakage or transients into the wrong place.
That matters because a lot of people make the wrong assumption here. They think “Type B is tripping, so I must have picked the wrong RCD.” In reality, the Type B may be the only reason the circuit is being read correctly in the first place.
So the real question is not whether nuisance tripping can happen. It is why it is happening on this specific install.
Common Causes of Type B RCD Nuisance Tripping
The most common causes are usually one of these:
- Background leakage has built too high across the circuit or grouped loads
- Inverter start-up or shut-down transients are pushing the protection too hard
- RFI / EMC filter leakage is adding leakage current even without a hard fault
- Upstream and downstream devices are fighting each other due to poor selectivity
- A real earth fault exists and the RCD is simply doing its job
This is why nuisance tripping is not always a “nuisance” in the lazy sense. Sometimes it is a symptom of a genuine design or fault issue that has finally become visible.
Why Inverter-Driven Circuits Cause More Trouble
Type B RCDs show up most often on circuits involving EV chargers, solar PV, battery storage, heat pumps and variable speed drives. Those are exactly the kinds of circuits that also produce more complex leakage and switching behaviour.
That is why installs with power electronics can be more sensitive to nuisance tripping problems. The RCD is not just dealing with a nice clean AC load. It is dealing with electronics, filters, switching frequencies and DC-sensitive behaviour that can change how the whole circuit behaves.
Installer’s Pick: If you need DC-sensitive protection on an inverter-led circuit, our WEV240B-030 2 Pole Type B RCD and WEV463B-030 4 Pole Type B RCD are built for exactly these kinds of applications.
Upstream Device Problems That Get Overlooked
One of the biggest causes of strange tripping behaviour is not the Type B itself. It is what sits upstream of it.
- An unsuitable upstream RCD may not coordinate properly
- The wrong device in series may trip first
- Poor discrimination can make fault-finding messy
- Leakage current that does not trip the downstream Type B may still upset other devices elsewhere in the chain
This is why you should never look at a tripping Type B in isolation. Always zoom out and review the full protective path.
Regulation Reminder: On inverter-driven circuits, picking the correct RCD type is only part of the job. You also need the right overall arrangement so the protective devices work together properly rather than creating avoidable tripping issues.
What to Check First If a Type B RCD Keeps Tripping
If a Type B RCD is tripping repeatedly, the sensible first checks are usually:
- Check the manufacturer’s instructions for the connected equipment
- Review total background leakage on the circuit
- Look at start-up and shut-down behaviour on the inverter-led load
- Check upstream / downstream coordination
- Test for a real insulation or earth fault rather than assuming it is just nuisance tripping
That process matters because the wrong fix is easy: swap the RCD, mask the symptom, and leave the real problem sitting in the circuit.
Mistakes to Avoid
- Blaming the Type B immediately – the wider circuit is often the real problem.
- Replacing the RCD before checking the load – especially on inverter-driven systems.
- Ignoring leakage build-up across grouped circuits or filters.
- Forgetting upstream coordination – poor selectivity causes endless confusion.
- Treating every trip as nuisance – sometimes the device is catching a genuine fault.
Products & Related Ranges
- 2-Pole Type B RCDs: WEV240B-030 40A 30mA · WEV263B-030 63A 30mA
- 4-Pole Type B RCDs: WEV463B-030 63A 30mA · WEV4100B-030 100A 30mA
- Related ranges: Type B RCDs · Three Phase · Heat Pump Boards · Surge Protection
FAQs
Can a Type B RCD nuisance trip?
Yes. It can happen, especially on inverter-driven circuits, but the cause is often the wider installation rather than the fact that the device is Type B.
Does nuisance tripping mean the Type B RCD is faulty?
No. It might be faulty, but more often the issue is leakage build-up, switching behaviour, poor coordination or a real circuit fault.
Why do inverter circuits trip RCDs more often?
Because they involve power electronics, filters and switching behaviour that can create more complex leakage and transients than a basic AC-only load.
Can an upstream device cause a Type B RCD problem?
Yes. Poor selectivity or the wrong upstream RCD can create messy tripping behaviour and make the fault harder to interpret.
Should I just replace the Type B RCD if it trips?
Not before checking the load, leakage, coordination and fault condition properly. Swapping the device first is often the wrong move.
Final Word
Yes, a Type B RCD can nuisance trip, but on most problem installs the real issue is the circuit design, the inverter behaviour, the leakage profile or the wider protection arrangement.
If a Type B keeps tripping, do not jump straight to “wrong RCD”. Step back, check the whole setup, and make sure the circuit is actually designed to let the device do its job properly.
