A meter isolator switch gives installers and network-approved personnel a way to safely isolate the supply between the electricity meter and the consumer unit. In practical terms, it makes maintenance, board changes, testing and upgrade work far more straightforward because the downstream installation can be disconnected without disturbing the meter itself.
On many jobs, the question is less about what a meter isolator is and more about when one should be used, whether a 100A unit is the right choice, and what enclosure format makes sense. That is where spec mistakes tend to happen.
Meter isolation products sit alongside our wider range of Meter Isolation & Changeover Switches and related Main Switches & Rotary Isolators, including 100A isolators, plastic enclosure options and 4-pole main switch assemblies.
Quick Answer: A meter isolator switch is fitted between the electricity meter and the consumer unit so the downstream installation can be safely isolated for maintenance, replacement or upgrade work. In most domestic and light commercial single-phase setups, a 100A meter isolator is the normal choice. Where housing or additional switching is needed, an enclosed version such as a 2-way plastic meter isolator enclosure or metal meter isolation unit may be the better fit.
| Product Type | Best Used When | Typical Use Case |
|---|---|---|
| 100A Meter Isolator | You need straightforward downstream isolation between the meter and board | Domestic board changes, upgrades and maintenance access |
| Meter Isolator in Enclosure | You need a neater housed solution with dedicated mounting space | Surface-mounted installs, organised meter cupboard layouts |
| 4-Pole Main Switch Assembly | You are dealing with three-phase switching and full pole isolation | Commercial boards, plant, three-phase distribution setups |
🧭 Jump to:
The Quick Answer
- A meter isolator switch sits between the meter and the consumer unit so the downstream installation can be safely isolated.
- A 100A isolator is the usual choice for most domestic single-phase installations.
- Enclosed versions are useful where you want a tidy housed solution or dedicated mounting arrangement.
- For three-phase setups, you may need a 4-pole main switch or a complete assembly rather than a standard single-phase meter isolator.
Related reads: Rotary Isolator vs Main Switch – What’s the Actual Difference?
What Is a Meter Isolator Switch?
A meter isolator switch is a switching device fitted on the outgoing side of the electricity meter. Its job is simple: it allows the supply feeding the consumer unit or downstream board to be disconnected safely.
That matters whenever work needs carrying out on the installation. Board changes, tails replacement, testing, additions and upgrade work all become much more manageable when there is a dedicated means of isolation between the meter and the installation.
On many jobs, a product such as the 100A Meter Isolator covers exactly that need without overcomplicating the setup.
Installer’s Pick: The 100A Meter Isolator is the straightforward go-to for standard single-phase isolation duties between meter and consumer unit.
Where Does a Meter Isolator Go?
In a typical setup, the meter isolator is installed after the electricity meter and before the consumer unit. That puts it in exactly the right place to disconnect the installation side while leaving the meter arrangement itself alone.
This position makes it especially useful in meter cupboards, service intake areas and board replacement jobs where safe access to the downstream side is needed.
- Incoming supply feeds the meter.
- The meter feeds the isolator.
- The isolator feeds the consumer unit or switchgear.
Where a more housed arrangement is preferred, a product such as the 2-Way Plastic Meter Isolator Enclosure can help keep the layout cleaner and easier to work on.
When Do You Need a Meter Isolator?
A meter isolator is commonly used whenever the downstream installation needs its own practical point of isolation. That includes both planned work and future-proofing.
- Consumer unit replacements where controlled downstream isolation is needed.
- Maintenance and testing on the installation side.
- Upgrades and additions where tails, boards or protective devices are being changed.
- Meter cupboard tidy-ups where a neater switching arrangement helps access and safety.
- Installations expected to be worked on again later, where giving the next electrician a proper means of isolation makes sense.
In short, it is one of those components that often saves hassle later. It is a simple product, but on the right job it can make the difference between a tidy, serviceable setup and an awkward one.
Why Is 100A the Usual Choice?
For most domestic and light commercial single-phase applications, 100A is the standard rating people look for. That is why 100A meter isolators and 100A main switches are so common across intake positions and consumer unit equipment.
The rating needs to match the application and the wider installation design, but as a general buying pattern, 100A is the normal point of reference because it suits the kind of supplies and incomers seen on everyday jobs.
- Standard domestic supplies often point buyers towards 100A devices.
- Board upgrades frequently involve 100A incomer-style switching.
- Meter isolation products are usually searched for with 100A included in the term.

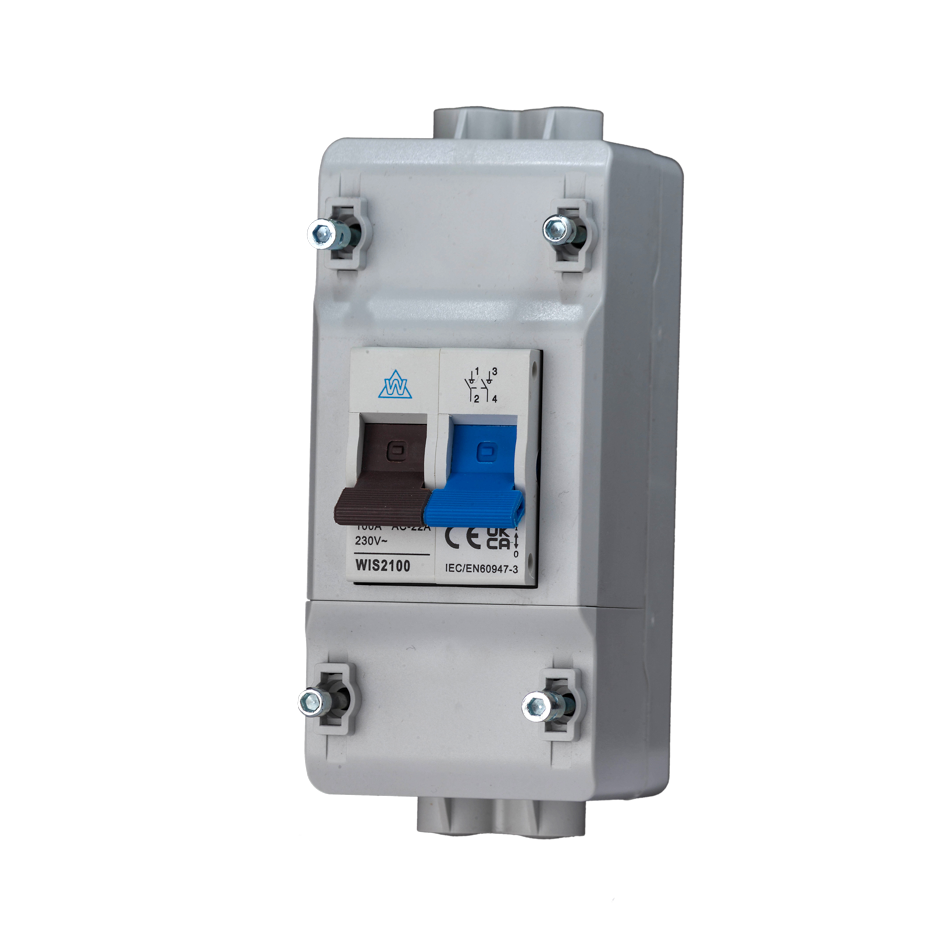

If you need a housed option rather than a loose device, the Metal Meter Isolation unit and the 100A Meter Isolator WEC2100 style product are both worth considering depending on the layout you are building.
Specification Reminder: A 100A rating is common, but final device selection should always follow the actual installation design, supply arrangement, enclosure format and intended use. Rating alone does not tell the full story.
Plastic vs Metal Meter Isolator Enclosures
Once the basic switching requirement is clear, the next question is usually enclosure format. On some jobs, a simple isolator device is enough. On others, a housed solution makes far more sense.
Plastic enclosure options are useful where a lightweight, tidy, straightforward housing is needed. They are commonly chosen for compact surface-mounted arrangements and organised meter cupboard setups.
Metal options can be the better fit where a more robust housed assembly is preferred or where the rest of the switchgear arrangement is already built around metal equipment.
- Choose a 2-way enclosure where the layout requirement is compact and simple.
- Choose a 4-way enclosure where extra space or switching arrangement is needed.
- Choose metal where a stronger, more board-style assembly is the better practical fit.
Useful examples in this range include:
Meter Isolator vs Main Switch – What’s the Difference?
These terms get mixed up a lot, but they are not always describing the same job.
A meter isolator is typically used at the intake side between the meter and the consumer unit so the downstream installation can be disconnected. A main switch is usually part of the consumer unit or switchgear itself and acts as the main means of switching for that board.
So while both devices isolate, the key difference is usually where they sit in the system and what part of the installation they control.
- Meter isolator: intake-side downstream isolation between meter and board.
- Main switch: switching control within the consumer unit or switchgear assembly.
- 4-pole main switch: commonly used on three-phase applications where all relevant conductors need isolating.
For related products, browse the Main Switches & Rotary Isolators range, including the Main Switch, 2-Pole 100A Double Terminal Main Switch and 4-Pole Main Switch.
Need a three-phase option? The 4-Way Metal Enclosure with 4-Pole Main Switch is built for applications where a standard single-phase meter isolator will not cover the switching requirement.
Common Mistakes to Avoid
- Assuming every isolation product is the same. Meter isolators, main switches, fuse switches and rotary isolators all have different roles.
- Choosing on rating alone. A 100A label helps narrow the field, but enclosure type, pole configuration and application still matter.
- Buying a loose switch when an enclosure would make more sense. Some installs are cleaner and easier to maintain with a housed solution.
- Using a single-phase style product on a job that really needs 4-pole switching. Three-phase work often calls for a different approach.
- Forgetting future maintenance. A small bit of planning at the intake position can save a lot of hassle later.
Products That Fit This Job
- Standard meter isolation: 100A Meter Isolator · 100A Meter Isolator WEC2100
- Enclosed plastic options: 2-Way Plastic Meter Isolator Enclosure · 4-Way Plastic Meter Isolator Enclosure
- Metal housed option: Metal Meter Isolation
- Three-phase / main switch options: 4-Pole Main Switch · 4-Way Metal Enclosure with 4-Pole Main Switch
- Related switching range: Main Switch · Dual Main Switch
Browse collections: Meter Isolation & Changeover Switches · Main Switches & Rotary Isolators
FAQs
What does a meter isolator switch do?
A meter isolator switch disconnects the supply feeding the consumer unit or downstream installation. It is normally installed between the electricity meter and the board so maintenance or upgrade work can be carried out more safely.
Do I need a meter isolator for a consumer unit change?
It is commonly used for that purpose because it provides a practical means of isolating the downstream installation. On board replacement and upgrade work, it can make the job much more straightforward.
Why are most meter isolators 100A?
Because 100A is the most common rating used for domestic and light commercial intake-side switching applications. Final selection should still match the installation requirements rather than following the rating alone.
What is the difference between a meter isolator and a main switch?
A meter isolator usually sits between the meter and the consumer unit. A main switch is usually part of the board or switchgear assembly itself. Both isolate, but they control different points in the installation.
Should I choose a plastic or metal meter isolator enclosure?
That depends on the install layout, the type of housing you want and the wider switchgear arrangement. Plastic can be ideal for compact neat mounting, while metal may suit more robust or board-style setups.
When would I need a 4-pole switch instead?
Where the application is three-phase, or where full pole isolation is required, a 4-pole main switch or complete assembly may be the correct choice rather than a standard single-phase meter isolator.
Final Word
A meter isolator switch is one of those simple products that solves a very practical problem. It gives the installation its own clear point of isolation after the meter, which makes maintenance, testing and board work far easier to manage.
For most standard single-phase applications, a 100A meter isolator is the obvious place to start. From there, the real decision is whether you need a loose device, a housed enclosure, or a more substantial main switch assembly for the type of system you are working on.
