Modern EV installs aren’t just about adding a charger to a wall. In 2026, many sites require load balancing, current monitoring, or multi-charger management.
So where does PEN fault protection sit in that setup?
This guide explains how PEN/PME detection devices integrate with load balancing systems, how they’re wired in real-world installs, and how to keep the protection layer compliant while managing supply capacity.
Quick Answer: PEN detection devices sit upstream of the EV charger and load management system. If an open PEN condition is detected, the device isolates the entire protected circuit - including any load balancing relay or charge management system. Load balancing does not replace PEN protection; it operates alongside it.
👉 View PME Fault Detection Units with Load Balancing Options
🧭 Jump to:
Where PEN Protection Sits in the Circuit
PEN detection devices are installed upstream of the EV charger.
In a typical PME EV install:
- Supply intake →
- PEN / PME detection device →
- Load balancing relay (if used) →
- EV charger
If an unsafe open PEN condition is detected, the detection unit isolates the circuit. That means the charger and any load balancing components lose supply immediately.
How Load Balancing Works
Load balancing systems monitor total site demand and adjust EV charging current accordingly.
They typically:
- Measure incoming supply current.
- Reduce EV charging current when site demand increases.
- Prevent overloading of the main supply.
What they do not do is monitor supply-side PEN integrity.
How PEN Detection and Load Balancing Work Together
Think of them as solving different problems:
| Function | PEN Detection | Load Balancing |
|---|---|---|
| Purpose | Shock protection (open PEN risk) | Prevent supply overload |
| Triggered By | Supply reference instability | High current demand |
| Action Taken | Disconnect circuit | Throttle charger output |
They operate independently but sit in the same installation.
Key point: Load balancing does not remove the requirement for PEN protection where it is mandatory.
Multi-Charger & Commercial Installations
On commercial sites with multiple EV points:
- Three-phase supply is common.
- Load balancing is often essential.
- PEN detection is still required on PME where risk exists.
In these installs, a dedicated 3-phase PME fault detection unit with load monitoring relay keeps the protection and control layers integrated but clearly defined.
Installer Shortcut: Using a PME detection unit that includes load balancing relay and metering simplifies wiring and reduces enclosure clutter.
Choosing the Right Setup in 2026
Ask these questions:
- Is the supply PME (TN-C-S)?
- Is PEN protection required for this install?
- Is load balancing required due to supply limits?
- Single-phase or three-phase?
Where both protection and load control are needed, choose a unit designed to integrate both - rather than mixing incompatible components.
FAQs
Quick clarifications for combined installs.
Does load balancing replace PEN protection?
No. Load balancing controls current demand. It does not monitor supply-side earth/neutral integrity.
Can I add load balancing after installing a PEN device?
Yes, provided the system is correctly integrated and does not bypass the protection device.
Do commercial installs always require 3-phase PEN protection?
If installed on a 3-phase PME supply where open PEN risk exists, yes — protection must match the supply configuration.
PME Detection Units with Integrated Load Balancing (2026)
If your install requires both PEN protection and load control, choose a unit designed to handle both functions cleanly:
Single-Phase with Load Balancing & kWh Meter:

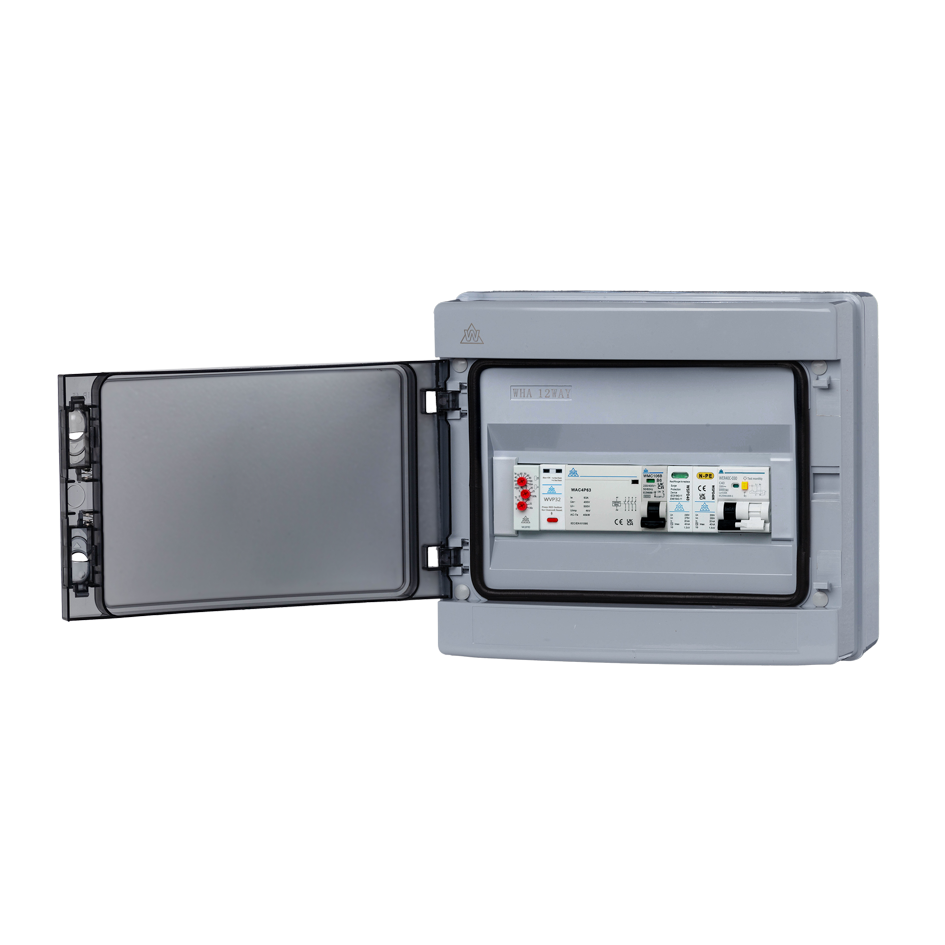

👉 IP65 PME Unit with Load Balancing Relay + kWh Meter
Three-Phase with RCBO, SPD & Load Monitoring:
👉 4P 63A PME Consumer Unit – RCBO + SPD + Load Balance + kWh
Standard PME Detection (No Load Management):
👉 IP65 PME Consumer Unit – 40A Type A RCBO + SPD
All units provide monitored disconnection in the event of supply PEN failure on TN-C-S (PME) systems and are suitable for 2026-compliant EV installations.
Final Word
PEN detection protects people. Load balancing protects supply capacity.
They solve different problems - and in many 2026 EV installs, you’ll need both.
- Match protection to the supply.
- Integrate load control correctly.
- Keep the compliance layer clear and inspection-ready.
👉 Compare PME detection units with and without load balancing here: Browse PME Fault Detection Range.
