Do You Need PEN Fault Protection in 2026? (18th Edition Guide for EV & PME Installs)
Quick answer: An EV charging point connected to a PME (TN-C-S) earthing terminal must have a compliant method of protection against the consequences of an open PEN conductor. That protection may be built into the charger, provided by a separate PEN fault detection device, or achieved through another method permitted by BS 7671.
A separate PEN protection unit is therefore not mandatory on every installation. It is required where the charger does not provide suitable protection internally and no other compliant method has been designed.
PEN fault protection is a key consideration when installing EV charging equipment on a PME supply. A broken or open PEN conductor on the distribution network can raise exposed conductive parts connected to the PME earthing terminal to a dangerous voltage.
Because somebody using an EV charger may be touching the vehicle while standing on the ground outside the building’s equipotential zone, Section 722 of BS 7671 includes specific requirements for controlling this risk.
This guide explains when PEN protection is needed, when the charger’s built-in protection may be sufficient and what installers should check when selecting a separate single-phase or three-phase protection unit.
Jump To:
What Is PEN Fault Protection?
PEN fault protection is a method of reducing the electric-shock risk created by an open-circuit protective earth and neutral conductor on a PME supply.
PEN stands for protective earth and neutral. On the distribution network, the PEN conductor performs both the neutral and protective functions before these are separated at the installation.
If that conductor becomes damaged or disconnected, the PME earthing terminal and conductive parts connected to it can rise above true earth potential. A suitable protection system detects or otherwise controls this condition and disconnects the EV charging point where required.
The terms PEN fault detection device, open PEN device, PME fault detection unit and PEN protection unit are frequently used for equipment intended to provide this protection.
Why Is PEN Protection Important for EV Chargers?
Within a correctly bonded building, accessible conductive parts are normally held at a similar potential. An EV charging point creates a different scenario because the user may be outside and in contact with both the vehicle and the general mass of earth.
During an open PEN fault:
- The PME earthing terminal may rise above true earth potential.
- The vehicle body may become connected to that elevated potential through the charging equipment.
- A person touching the vehicle while standing on the ground may bridge the difference in potential.
- A normal circuit RCD may not provide the required protection against this supply-side condition.
This is why BS 7671 places specific conditions on connecting an EV charging point to a PME earthing terminal.
When Is PEN Fault Protection Required for an EV Charger?
Where an EV charging point uses the PME earthing terminal, the installation must comply with one of the protective arrangements permitted by Regulation 722.411.4.1.
For a typical single-phase charger, a compliant open PEN protection method will normally be required where:
- The charging point is connected to a TN-C-S or PME earthing arrangement.
- The user can touch the vehicle while in contact with the ground.
- The charger does not already provide verified open PEN protection.
- No alternative protective arrangement has been designed for the installation.
The requirement is therefore not determined simply by whether the charger is described as “indoors” or “outdoors”. The important issue is the charging point, its earthing arrangement and whether somebody could be exposed to a dangerous touch voltage during a PEN failure.
Regulation reminder: BS 7671 does not state that every EV installation must contain a particular branded PEN device. It requires the charging point to use a permitted protective arrangement where PME is used.
What Are the Compliant Methods of PEN Fault Protection?
BS 7671 provides several possible ways of protecting an EV charging point against the consequences of an open PEN conductor.
| Protection Method | Typical Application |
|---|---|
| Built-in open PEN protection | Functionality incorporated within the EV charger and verified as suitable for the installation. |
| Separate PEN fault detection unit | External device or consumer unit that monitors the supply and disconnects the required conductors during a detected fault condition. |
| Earth-electrode arrangement | An engineered arrangement designed to limit the touch voltage during an open PEN condition. |
| Balanced three-phase installation | A qualifying three-phase system where loading is sufficiently balanced to control the rise in potential. |
| Electrical separation | Protection using a suitable isolating transformer arrangement for the individual charging point. |
| Equivalent protective device | Alternative equipment that provides a degree of safety no lower than the methods defined by BS 7671. |
For many domestic installations, the practical choice is either a charger with suitable integrated protection or a dedicated PEN fault detection consumer unit.
Do EV Chargers Have Built-In PEN Protection?
Some EV chargers include open PEN protection, while others require an external device. The installer should confirm the exact functionality rather than relying on the charger brand or a general product description.
Check:
- The current manufacturer’s datasheet and installation instructions.
- Whether the protection applies to the specific charger model and revision.
- Whether it is suitable for the installation’s single-phase or three-phase arrangement.
- Which conductors are disconnected during a detected fault.
- Whether any measurement earth electrode or additional equipment is required.
- Any restrictions relating to voltage drop, island mode or connected generation.
A charger containing PEN detection may remove the need for a separate external PEN unit, but it does not remove the need to verify the rest of the circuit protection, isolation, RCD and surge-protection requirements.
Installer note: Manufacturer features can change between models and product generations. Check the documentation supplied for the exact unit being installed, including Tesla and other chargers commonly advertised with integrated PEN protection.
Do Three-Phase EV Chargers Need PEN Fault Detection?
A three-phase EV charger connected to a PME supply still requires a compliant method of protection against an open PEN condition. However, the device and detection method must be appropriate for a three-phase installation.
Some voltage-monitoring devices intended for single-phase supplies are not suitable for a single-phase charging point connected within a three-phase installation. A three-phase system may instead use:
- A suitable three-phase PEN fault detection device.
- Protection based on a measurement earth electrode.
- An equivalent verified protective system.
- A sufficiently balanced three-phase arrangement where all relevant conditions are met.
The balanced-load method should not be assumed simply because the installation has a three-phase supply. The designer must establish that the loading remains sufficiently balanced under the relevant operating conditions.
👉 Compare single-phase and three-phase PME fault detection units.
When Is a Separate PEN Detection Device Not Required?
A standalone PEN fault device may not be required where:
- The EV charger provides suitable integrated open PEN protection.
- The charging point is supplied using a correctly designed TT earthing arrangement that is separated from the PME system.
- Another permitted method under Regulation 722.411.4.1 has been used.
- The installation uses electrical separation for the individual charging point.
A TT supply does not require open PEN protection because it does not rely on the distributor’s PEN conductor for the installation earth. However, the charging point must still meet the applicable requirements for automatic disconnection, RCD protection and electrode resistance.
Simply adding an earth rod does not automatically convert a PME-connected charging point into a compliant TT arrangement. Separation from PME-connected conductive parts and other design considerations must be addressed.
How to Choose a PEN Fault Protection Unit
Where a separate unit is needed, it should be matched to the supply, EV charger and circuit design.
- Supply configuration: Single-phase or three-phase
- Current rating: Matched to the charger circuit and protective-device design
- Disconnection: Confirm which live conductors and protective conductor are disconnected
- RCD or RCBO provision: Check the charger’s AC and DC residual-current requirements
- Surge protection: Confirm whether an SPD is included or supplied separately
- Enclosure rating: Select an appropriate IP rating for the installation environment
- Isolation: Check whether suitable switching and isolation are included
- Documentation: Retain the manufacturer’s instructions and Declaration of Conformity where applicable

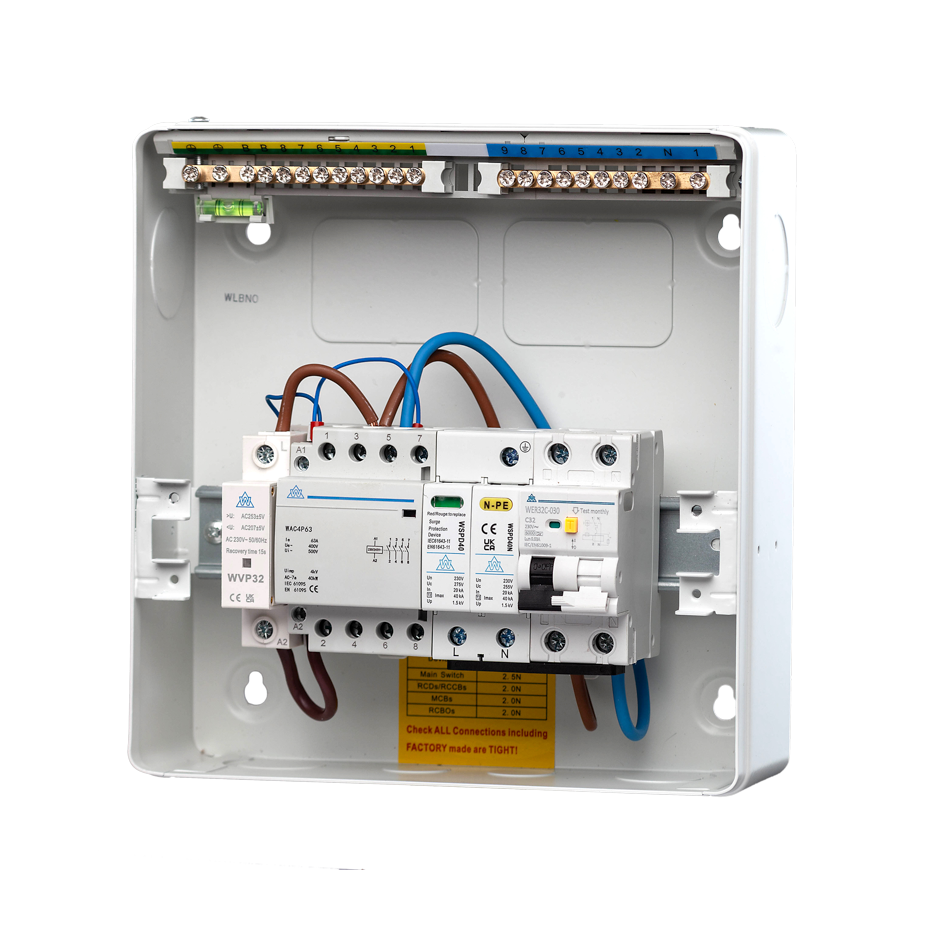

Installer shortcut: A pre-built EV consumer unit can combine PEN fault detection, circuit protection and surge protection in one enclosure, reducing the number of separate components required on site.
PEN Fault Protection FAQs
Is PEN fault protection mandatory for an EV charger?
A compliant open PEN protective arrangement is required where an EV charging point is connected to a PME earthing terminal. This does not always mean installing a separate device because the protection may be incorporated within the charger or provided using another permitted method.
What is a PEN fault detection device?
It is equipment designed to detect conditions associated with an open PEN conductor and disconnect the EV charging point to reduce the risk of a dangerous touch voltage.
What is the difference between PEN protection and PME protection?
In EV charging discussions, the terms are often used for the same protective function. PME describes the earthing arrangement, while PEN refers to the combined protective earth and neutral conductor whose failure creates the risk.
Do all EV chargers have built-in PEN protection?
No. Some chargers include suitable protection and others require an external unit. Check the documentation for the exact model being installed.
Does a Tesla charger have PEN fault protection?
This depends on the exact Tesla charging product, model revision and installation instructions. The current manufacturer documentation should be checked before deciding whether an external PEN protection unit is required.
Can an earth rod replace a PEN fault detection device?
An electrode-based or TT arrangement may be used where it has been correctly designed, but fitting an earth rod alone does not automatically make the installation compliant.
Does a three-phase charger need a three-phase PEN device?
Where a standalone detection unit is used, it must be suitable for the supply and charging arrangement. A single-phase voltage-monitoring device should not automatically be assumed suitable for a charging point supplied from a three-phase installation.
Does PEN protection replace an RCD or RCBO?
No. Open PEN protection addresses a supply-side earthing fault. RCD or RCBO protection addresses different fault conditions and must be selected separately in accordance with the charger and BS 7671 requirements.
Is an O-PEN device the same as a PEN fault device?
O-PEN, open PEN and PEN fault protection are commonly used to describe devices or functionality intended to protect against an open-circuit PEN conductor.
Do You Need a PEN Protection Unit?
Where an EV charging point is connected to a PME supply, the design must include a compliant method of protection against an open PEN conductor.
A separate PEN fault protection unit is normally needed where the charger does not contain verified protection and no other permitted method has been provided. Where suitable protection is built into the charger, adding another standalone PEN device may be unnecessary.
Before specifying the board:
- Confirm the property’s earthing arrangement.
- Check the exact EV charger specification.
- Identify whether open PEN protection is built in.
- Confirm whether the installation is single-phase or three-phase.
- Coordinate PEN, RCD, overcurrent and surge protection.
👉 Ready to spec? Browse PEN fault detection and PME protection units.
