What Does 10kA Mean on an MCB?

The 10kA marking identifies the MCB’s rated short-circuit breaking capacity.

It means the device has been tested to interrupt a short-circuit current of up to 10,000 amps under the conditions of its applicable product standard.

During a short circuit, current can rise far above the normal operating current of the circuit. The protective device must be capable of safely:

• Detecting the fault
• Opening its contacts
• Extinguishing the resulting arc
• Interrupting the fault current
• Containing the thermal and mechanical stresses

If a protective device is exposed to a fault current beyond its proven breaking capacity, it may not interrupt the fault safely.

Is 10kA the Same as 10 Amps?

No. The two figures describe completely different characteristics.

• 10A: Ten amps of rated current during normal service
• 10kA: Ten thousand amps of short-circuit breaking capacity

The letter “k” means one thousand:

• 1kA = 1,000 amps
• 6kA = 6,000 amps
• 10kA = 10,000 amps

A breaker can therefore be rated:

• 6A with 10kA breaking capacity
• 10A with 10kA breaking capacity
• 32A with 10kA breaking capacity
• 63A with 10kA breaking capacity

The current rating is selected according to the circuit load, cable and overload requirements. The kA rating is selected according to the prospective short-circuit current and the protective arrangement.

What Is the Difference Between 6kA and 10kA MCBs?

The main difference is the short-circuit current each device is rated to interrupt under its declared conditions.

A 10kA device is not automatically more suitable for the circuit simply because it has a higher breaking capacity.

The complete specification still needs to match:

• Rated current
• Trip curve
• Number of poles
• Voltage rating
• Short-circuit capacity
• Consumer-unit or distribution-board compatibility
• Required disconnection times

What Is Prospective Fault Current?

Prospective fault current is the current that could flow if a fault occurred at a particular point in the installation.

Depending on the conductors involved, installers may consider:

• Prospective short-circuit current: Fault current between live conductors
• Prospective earth-fault current: Fault current between a live conductor and earth
• Prospective fault current: The higher relevant value used for verification at that point

The available fault current is affected by:

• Supply-transformer impedance
• Distance from the transformer
• Size and length of supply conductors
• Supply-network arrangement
• Parallel supplies or transformers
• Generators and other sources
• Distribution-circuit impedance

Fault current is normally highest close to a low-impedance supply source and falls as conductor impedance is added further downstream.

That is why a main switchboard close to a transformer may require higher breaking capacity than a remote sub-board supplied through a long cable.

However, the final decision must come from measurement, calculation, declared supply information or another permitted method—not the building type alone.

Do Domestic Consumer Units Need 10kA MCBs?

Not automatically.

Many UK domestic consumer units contain 6kA MCBs or RCBOs. This does not necessarily mean the installation can only be used where prospective fault current is below 6kA.

A consumer unit conforming to BS EN 61439-3 may have a declared conditional short-circuit rating, commonly 16kA, when installed with the specified upstream service fuse and approved internal devices.

Under those tested conditions, the upstream fuse limits the energy passed through the assembly during the fault sufficiently for the consumer unit and its lower-rated outgoing devices to withstand and clear the event safely.

This means a 6kA MCB in an appropriately tested domestic consumer-unit assembly may be suitable even where the declared prospective fault current at the origin is above 6kA.

The conditional rating only applies where the tested arrangement and manufacturer’s conditions are met.

It should not be assumed for:

• Mixed-brand devices
• Unapproved replacement breakers
• Modified busbar arrangements
• Assemblies outside the manufacturer’s declared configuration
• Distribution boards that do not fall within the same tested standard and arrangement

What Is a Conditional Short-Circuit Rating?

A conditional short-circuit rating is the fault-current level an assembly or device combination can withstand when protected by a specified upstream short-circuit protective device.

The downstream MCB does not necessarily interrupt the entire prospective fault current by itself.

During a high-level fault:

1. The downstream protective device begins operating.
2. The upstream fuse or circuit breaker also limits the fault energy.
3. The coordinated combination clears the fault.
4. The complete assembly remains within its tested short-circuit performance.

This is sometimes referred to as:

• Back-up protection
• Cascading
• Conditional short-circuit protection
• Energy-limiting coordination

The arrangement must be supported by manufacturer data or the applicable tested assembly standard.

A designer should not create an assumed conditional rating by simply placing a larger fuse upstream of a lower-rated MCB.

When Is a 10kA MCB Required?

A 10kA MCB may be required where:

• The prospective fault current exceeds the direct breaking capacity of a 6kA device.
• No valid conditional rating or upstream back-up arrangement covers the available fault level.
• The distribution-board manufacturer specifies 10kA outgoing devices.
• The project specification requires a 10kA device.
• The device forms part of a commercial or industrial assembly with a declared 10kA rating.
• The installation is close to a low-impedance transformer or major intake.
• Parallel transformers or multiple sources increase the available fault current.
• The circuit is supplied by a generator or alternative source requiring a specific short-circuit assessment.
• The manufacturer’s coordination study identifies 10kA as the required device rating.

The fact that a circuit is three-phase does not automatically mean it needs a 10kA MCB.

Likewise, a single-phase circuit is not automatically suitable for 6kA.

The available fault current and the tested protective arrangement determine the answer.

Where Are 10kA MCBs Commonly Used?

10kA MCBs are frequently specified in installations where higher prospective fault levels are expected or where the distribution-board system has been designed around 10kA devices.

Examples may include:

• Commercial distribution boards
• Industrial control panels
• Plant rooms
• Main and sub-main switchboards
• Boards close to the electrical intake
• Three-phase panelboards
• Machinery supplies
• Large EV charging distribution systems
• Renewable-energy and battery distribution equipment
• Sites with private transformers

These applications do not require 10kA solely because of the equipment they supply.

For example, an EV charger does not need a 10kA MCB because it is an EV charger. It needs a device with sufficient short-circuit capacity for the fault current available at its installation point.

👉 Compare 10kA MCBs for single-phase and three-phase circuit protection.

Is Breaking Capacity the Same as B, C or D Curve?

No. Breaking capacity and trip curve describe different characteristics.

A breaker can therefore be:

• B32 6kA
• B32 10kA
• C32 6kA
• C32 10kA
• D32 10kA

The curve is selected according to load and fault-operation characteristics. The breaking capacity is selected according to available short-circuit current and any valid conditional rating.

Related guide: B Curve vs C Curve RCBOs

What Is the Difference Between 6kA and 10kA RCBOs?

The same breaking-capacity principle applies to RCBOs.

An RCBO combines:

• Overload protection
• Short-circuit protection
• Residual-current protection

A 10kA RCBO has a higher declared short-circuit breaking capacity than an equivalent 6kA RCBO.

Its residual-current characteristics remain separate, including:

• Type AC, A, F or B
• 30 mA, 100 mA or another sensitivity
• General or time-delay operation
• Neutral-switching arrangement

Choosing 10kA does not change the residual-current protection type or make the RCBO suitable for a different load waveform.

👉 Browse 10kA RCBOs.

Are 10kA MCBs Better for Future-Proofing?

A higher breaking capacity provides more short-circuit interruption capability, but it does not future-proof the installation against increased load.

Breaking capacity does not increase:

• The circuit’s normal current capacity
• The cable size
• The board’s current rating
• The supply capacity
• The permitted connected load
• The number of usable circuits

If future changes increase the prospective fault current—such as installing a private transformer, adding another source or altering the supply network—the short-circuit assessment may need to be repeated.

Specifying 10kA may be sensible where the expected fault duty justifies it or where the distribution-board system standardises on 10kA devices.

It should not be used as a substitute for calculating or determining the actual fault level.

How Do You Choose the Correct Breaking Capacity?

1. Identify the installation point. Establish where the MCB or RCBO will be installed.
2. Determine the prospective fault current. Use measurement, calculation, distributor information or another permitted method.
3. Check the device standard. Confirm the declared short-circuit rating and applicable test basis.
4. Check the assembly rating. Review the consumer-unit or distribution-board manufacturer’s declared short-circuit performance.
5. Identify any conditional rating. Confirm the specified upstream fuse or circuit breaker and approved device combination.
6. Confirm board compatibility. Use protective devices declared suitable for the assembly.
7. Select the current rating. Match the load, cable and overload requirements.
8. Select the curve. Choose B, C, D or another characteristic according to the circuit and equipment.
9. Verify fault protection. Confirm maximum Zs and required disconnection time.
10. Document the design basis. Record the fault-current value, assembly information and manufacturer coordination used.

Browse MCBs by Breaking Capacity

• 10kA MCBs
• 6kA MCBs
• 10kA RCBOs
• B Curve MCBs
• C Curve MCBs
• 2-Pole MCBs
• 3-Pole MCBs
• 4-Pole MCBs
• High-Current MCBs
• All MCBs

Check current rating, breaking capacity, curve, pole configuration, product standard and board compatibility before ordering.

10kA MCB FAQs

What does 10kA mean on a breaker?

It means the breaker has a rated short-circuit breaking capacity of 10,000 amps under its specified product-standard test conditions.

How many amps is 10kA?

10kA is 10,000 amps. However, it describes prospective short-circuit current rather than the breaker’s normal load-current rating.

Does 10kA mean a 10A breaker?

No. A 10A breaker carries a rated normal current of 10 amps. A 10kA breaker has a short-circuit breaking capacity of 10,000 amps.

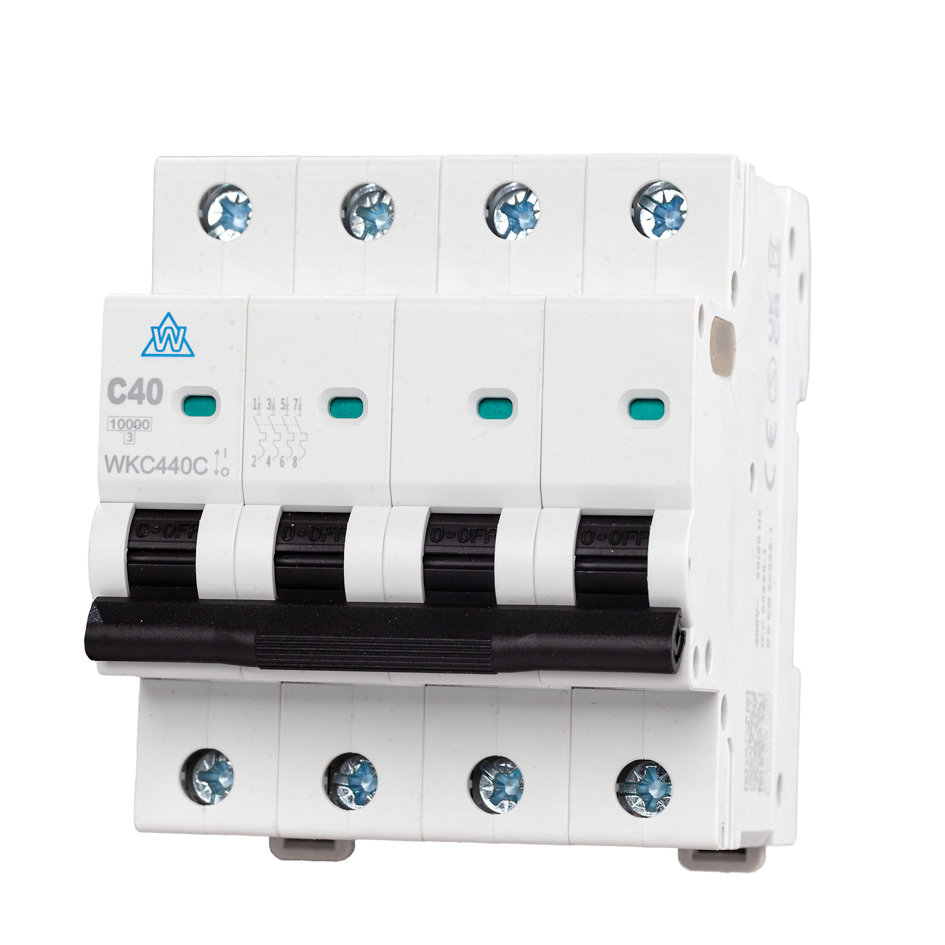

What does 10000A mean on an MCB?

It is another way of expressing a 10kA short-circuit breaking capacity.

What is the difference between 6kA and 10kA?

A 6kA device is rated to interrupt 6,000 amps under its declared conditions, while a 10kA device is rated for 10,000 amps.

How do I know whether I need a 10kA MCB?

Determine the prospective fault current and check the device and assembly manufacturer’s declared short-circuit performance. Use 10kA where 6kA is insufficient and no valid conditional rating covers the fault level.

If the fault current is above 6kA, must I always fit a 10kA MCB?

No. A tested consumer-unit or distribution-board assembly may provide a higher conditional short-circuit rating when coordinated with a specified upstream protective device. The manufacturer’s data must support the arrangement.

Why do domestic consumer units use 6kA breakers if the supply fault current can be higher?

Many domestic consumer units are tested as assemblies with the upstream service fuse to provide a conditional short-circuit rating, commonly 16kA, despite individual outgoing devices carrying a 6kA marking.

Can I fit a 10kA MCB instead of a 6kA MCB?

Potentially, but it must be compatible with the consumer unit or board and match the required current rating, curve, poles and other characteristics. Do not mix devices solely because they fit physically.

Can I use 10kA MCBs everywhere?

A 10kA device may be suitable, but it is not automatically necessary. The device must remain compatible with the assembly and all other circuit requirements.

Are 10kA MCBs only for three-phase systems?

No. They are available for single-phase and three-phase circuits. Selection depends on prospective fault current and the protective arrangement.

Does a three-phase board automatically need 10kA breakers?

No. Three-phase systems may have higher available fault current, but the actual value and assembly rating must be determined.

Is 10kA the same as 10kAIC?

Both relate to short-circuit interruption capability, but terminology and test standards vary between markets. Use the rating and product standard applicable to the UK installation rather than assuming direct equivalence.

Is breaking capacity the same as the B, C or D curve?

No. Breaking capacity is the maximum short-circuit current the breaker can interrupt. B, C and D describe the instantaneous overcurrent operating characteristic.

Does a 10kA breaker carry more normal load?

No. A 32A 6kA breaker and a 32A 10kA breaker are both rated for 32 amps of normal current, subject to the circuit design.

Does 10kA provide better overload protection?

Not by itself. Overload protection is determined by the current rating and time-current characteristic. The 10kA figure relates to short-circuit interruption.

Is a 10kA RCBO different from a 10kA MCB?

Yes. Both can provide 10kA short-circuit capacity, but an RCBO also provides residual-current protection.

What is breaking capacity?

Breaking capacity is the maximum prospective short-circuit current a protective device can interrupt safely under its declared conditions.

What is conditional short-circuit capacity?

It is the fault-current level a device or assembly can withstand when coordinated with a specified upstream short-circuit protective device.

Does a higher kA rating future-proof the circuit?

It provides greater short-circuit interruption capacity but does not increase cable capacity, circuit load, supply capacity or the board’s current rating.

Do You Need a 10kA MCB?

You need a protective arrangement capable of safely interrupting the prospective fault current at the installation point.

That may mean:

• A 6kA MCB where the fault current is within its direct rating.
• A 6kA MCB within a tested assembly that has a suitable conditional short-circuit rating.
• A 10kA MCB where greater direct breaking capacity is required.
• Another coordinated circuit breaker or fuse arrangement for higher fault levels.

Before selecting the device, confirm:

• Prospective fault current
• Device breaking capacity
• Assembly conditional rating
• Upstream protective device
• Manufacturer-approved device combination
• Current rating
• Trip curve
• Pole configuration
• Maximum Zs and disconnection time
