IP40 Metal Garage Units (Main Switch Incomer)
£21.64
£50.96

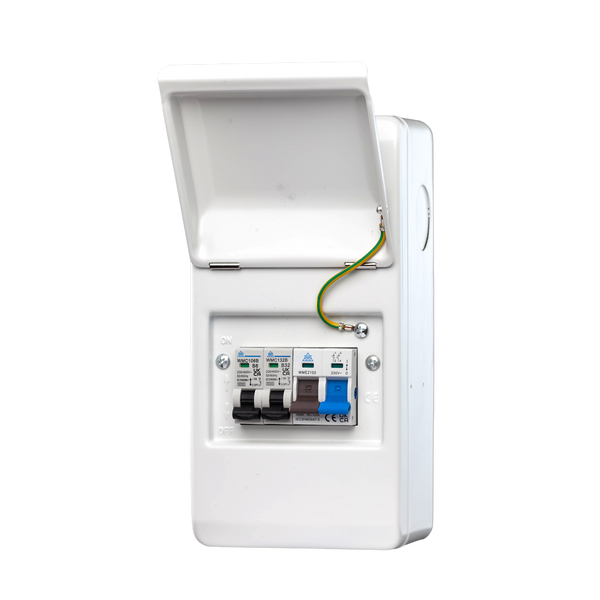

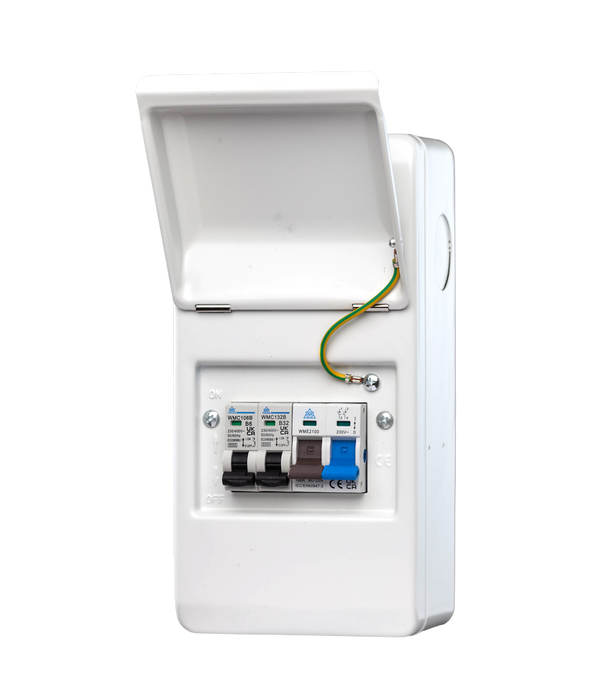

The IP40 Metal Garage Consumer Unit is a compact, all‑metal enclosure for garages, workshops, and outbuildings. Each unit is supplied with a 100A main switch incomer and two pre‑fitted B‑curve MCBs. Fully compliant with the 18th Edition wiring regs, with integrated neutral/earth bars and an earthed drop‑down lid. Available variants...
The IP40 Metal Garage Consumer Unit is a compact, all‑metal enclosure for garages, workshops, and outbuildings. Each unit is supplied with a 100A main switch incomer and two pre‑fitted B‑curve MCBs. Fully compliant with the 18th Edition wiring regs, with integrated neutral/earth bars and an earthed drop‑down lid.
Available variants (built to order):
- WMMS/616 – 6A + 16A MCBs (B curve)
- WMMS/620 – 6A + 20A MCBs (B curve)
- WMMS/632 – 6A + 32A MCBs (B curve)
| Part Code | Incomer | MCB Set | Typical Use |
|---|---|---|---|
| WMMS/616 | 100A Main Switch | 6A + 16A (B) | Lighting + light power/tool circuit |
| WMMS/620 | 100A Main Switch | 6A + 20A (B) | Lighting + heavier sockets/radials |
| WMMS/632 | 100A Main Switch | 6A + 32A (B) | Lighting + high‑load (e.g. compressor, welder) |
Which should I choose? Use the 6A way for lighting. Pick 16A/20A/32A based on the maximum demand of your socket or equipment circuit and the design current. When in doubt, follow your circuit calculations and protective device coordination.
- IP40 steel construction with earthed drop‑down lid

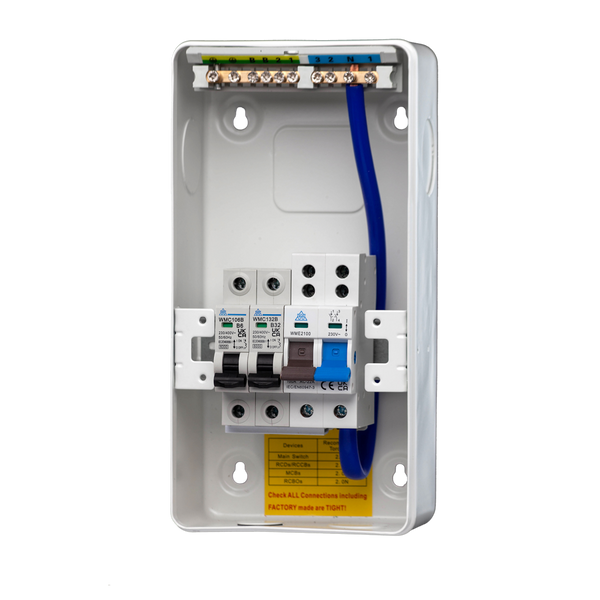

- Integrated neutral and earth bars for quick termination
- Built to order in the UK – dispatch in 3 working days
- Dimensions: 130(W) × 258(H) × 110(D) mm
Note: This is the Main Switch version. If you need RCD protection in the enclosure, see our RCD‑incomer garage units.
What’s the difference between WMMS/616, /620 and /632?
Only the MCB ratings differ: 6A+16A, 6A+20A, or 6A+32A. All variants include a 100A main switch and the same IP40 metal enclosure.
Does this unit include RCD or RCBO protection?
No. This is the Main Switch version. If your design requires RCD/RCBO protection, select an RCD incomer garage unit or fit RCBOs as appropriate elsewhere in the system.
Is this suitable for outdoor use?
No. The enclosure is IP40 and must be installed in a dry indoor environment (e.g. inside a garage).
How quickly can I get it?
Units are built to order and typically dispatched within 3 working days.
- Incomer: 100A Main Switch (non‑RCD)
- Variants: WMMS/616 (6A+16A B); WMMS/620 (6A+20A B); WMMS/632 (6A+32A B)
- MCB Curve: B curve (2 modules total fitted)
- Enclosure: Steel, IP40, earthed drop‑down cover
- Bars: Integrated neutral and earth bars
- Mounting: Surface mount
- Dimensions: 130(W) × 258(H) × 110(D) mm
- Standards: BS EN 61439; installs to BS 7671:2018 (A2)
Supplied pre‑configured with the specified MCB pair for fast fit‑out. Final installation must be completed by a qualified electrician.
- Allow 3 working days for build and dispatch
- Provide a dry, ventilated indoor location (IP40)
- Verify circuit design current and select the appropriate variant
- Use suitable trunking/knockouts and maintain CPC continuity
