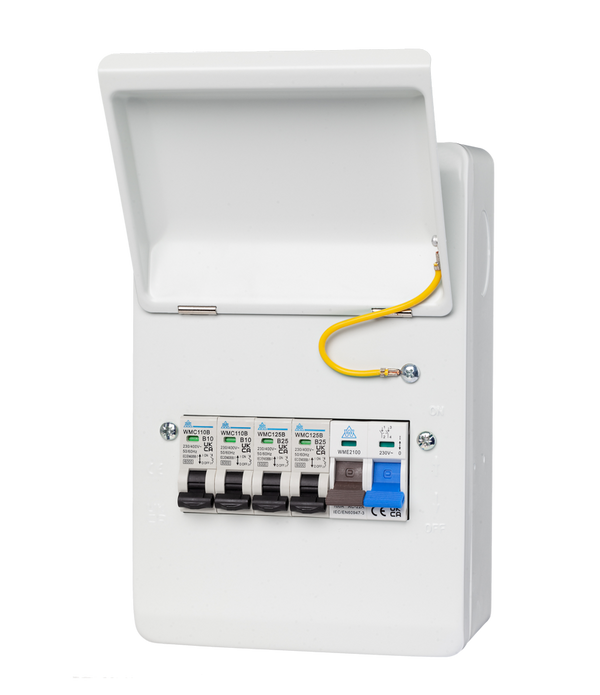

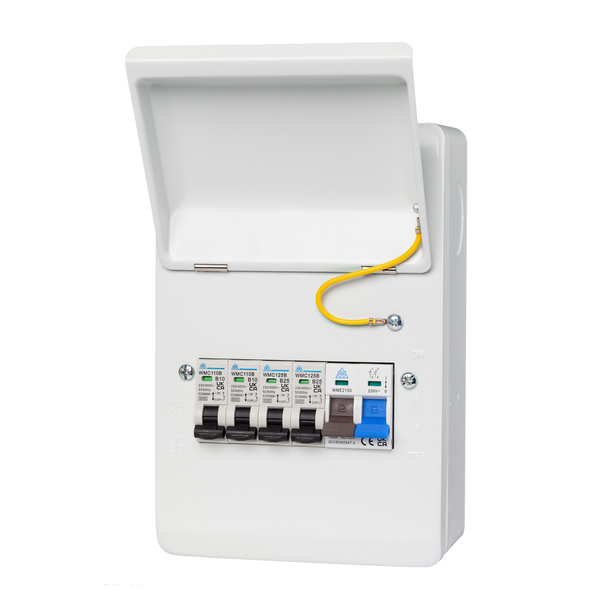

4 Usable Way Consumer Unit
The 4 Usable Way Consumer Unit is a compact steel distribution board designed for small domestic installs, garages, and outbuildings. Built to order and supplied with a main switch incomer plus your choice of 4 MCBs, it provides a compliant and reliable base for new circuits or upgrades. Supplied with...
The 4 Usable Way Consumer Unit is a compact steel distribution board designed for small domestic installs, garages, and outbuildings. Built to order and supplied with a main switch incomer plus your choice of 4 MCBs, it provides a compliant and reliable base for new circuits or upgrades.
- Supplied with main switch incomer + 4 x MCBs of your choice
- Durable steel construction with drop-down metal lid for added safety
- Fully certified to BS EN 61008, BS EN 60898, and BS EN 61439-3
- Compatible with all WCED MCBs and RCBOs
- Built to order – allow 3 working days for delivery
What’s included with this 4 way consumer unit?
The unit comes with a main switch incomer and 4 MCBs of your choice, pre-fitted in a steel enclosure.
Is this suitable for garage installs?
Yes - this 4 way unit is commonly used for garages, small outbuildings, and domestic sub-boards. Ensure your chosen MCB ratings match the load requirements.
Can I use RCBOs instead of MCBs?
Yes, the enclosure is compatible with WCED RCBOs if you prefer combined overload and earth leakage protection.
How long does delivery take?
Units are built to order and dispatched within 3 working days. Next-day delivery applies once dispatched.
- Ways: 4 usable module slots
- Main Switch: Included
- Enclosure: Steel, drop-down lid
- Operating Voltage: 230V / 50Hz
- Protection Degree: IP40
- Certifications: BS EN 61008, BS EN 60898, BS EN 61439-3
- MCBs: 4 pieces, selectable at checkout
This unit is built to order and supplied ready for configuration with your chosen breakers. Installation must be carried out by a qualified electrician.
- Clear internal labelling for quick identification on site
- Knockouts provided for flexible cable entry
- Ensure enclosure is mounted in a dry, ventilated space
- Check that all devices selected match your load requirements
