WME Surge Protected Metal Enclosures
The WME range of Surge Protected Metal Enclosures combines a 100A main switch with a built-in Type 2 Surge Protection Device (SPD) to protect your circuits from damaging voltage spikes. Designed for 18th Edition compliance, these enclosures offer a safe, compact, and installer-friendly solution for residential, commercial, and light industrial...
The WME range of Surge Protected Metal Enclosures combines a 100A main switch with a built-in Type 2 Surge Protection Device (SPD) to protect your circuits from damaging voltage spikes. Designed for 18th Edition compliance, these enclosures offer a safe, compact, and installer-friendly solution for residential, commercial, and light industrial applications.
Available from 6 to 36 modules, each enclosure is manufactured from non-combustible steel and finished in white polyester powder coating. Multiple circular knockouts make cable entry simple, while the raised DIN rail and spacious wiring area ensure quick, neat installs.
- 100A main switch included – full isolation for safe maintenance
- Integrated Type 2 SPD – protects against transient overvoltages
- No separate MCB required for SPD – saves space in the board
- Usable ways vary by model (3–32)
- 1.2mm steel enclosure, powder-coated finish
- Neutral & earth bars fitted both sides, fully shrouded terminals
- Removable gland plate for easy cable entry
- Keyhole wall-mount fixing and captive cover screws
- Complies with BS EN 61439-3 & BS 7671:2018 A2
Available Models

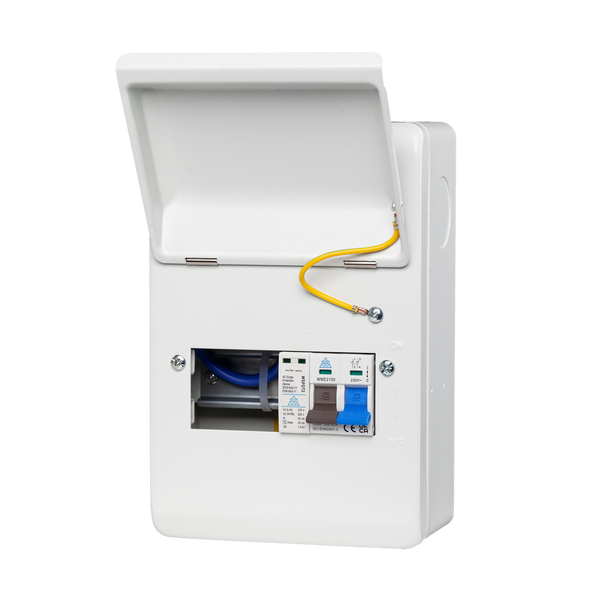

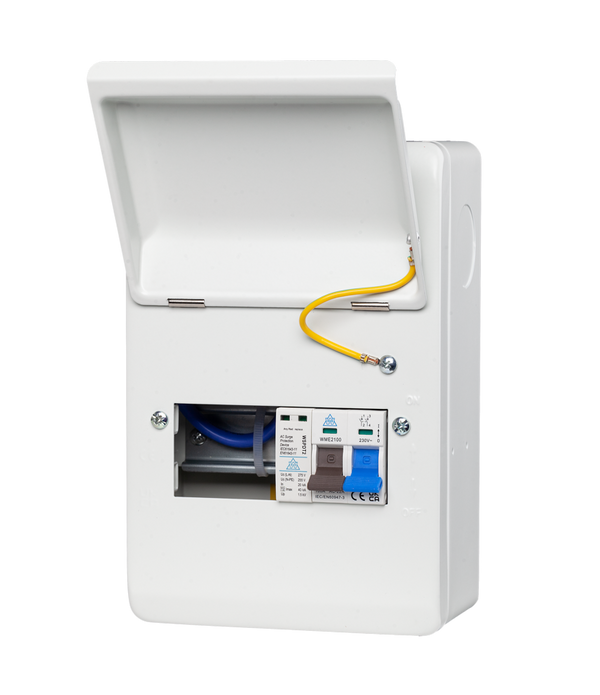

- WME06/SP – 6 module (3 usable ways)

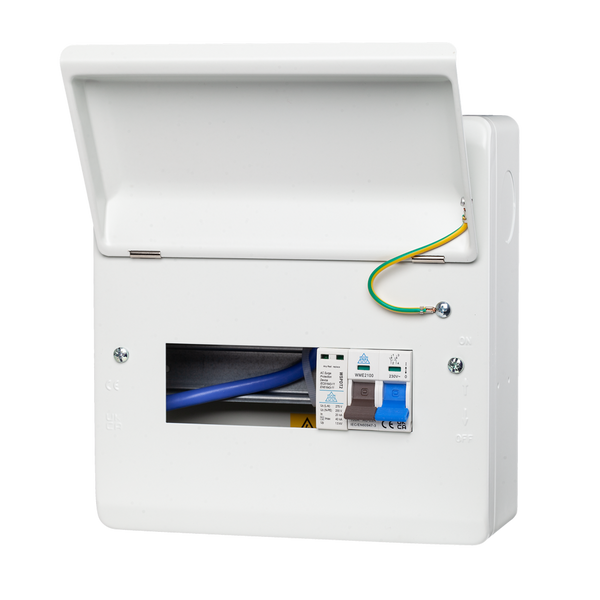

- WME08/SP – 8 module (5 usable ways)
- WME10/SP – 10 module (7 usable ways)

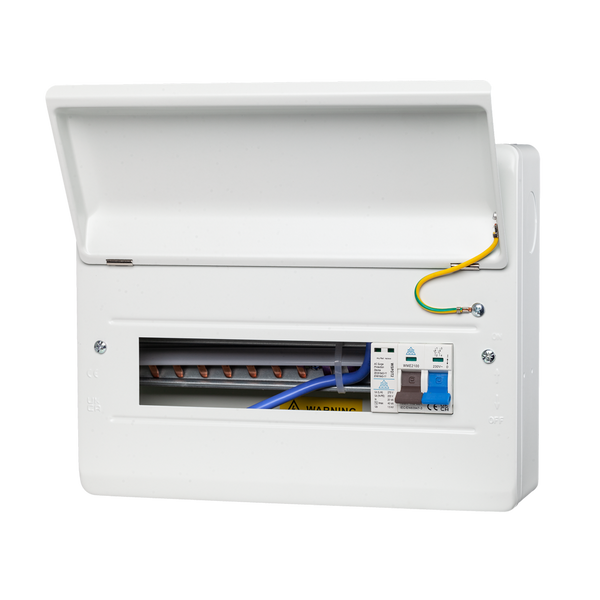

- WME12/SP – 12 module (9 usable ways)

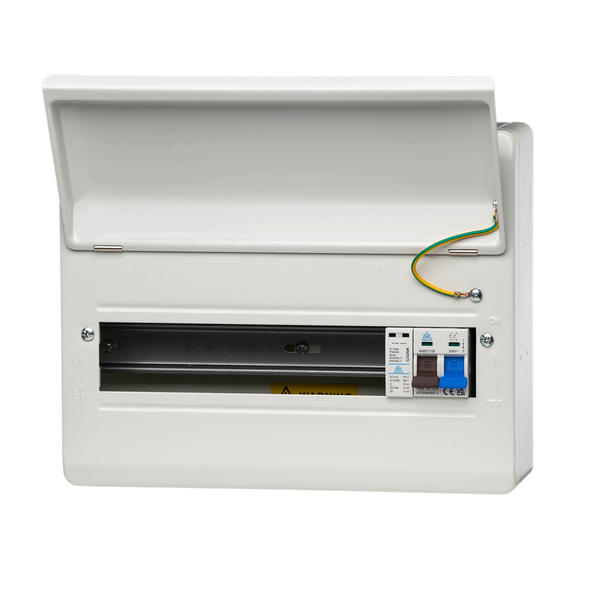

- WME14/SP – 14 module (11 usable ways)
- WME16/SP – 16 module (13 usable ways)

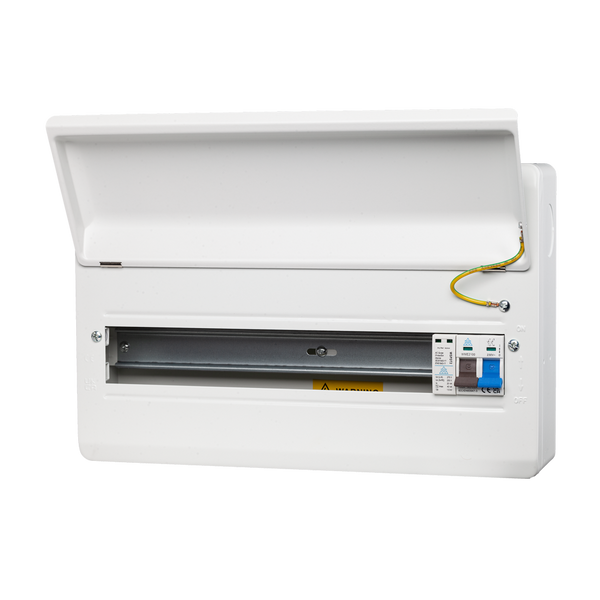

- WME18/SP – 18 module (15 usable ways)

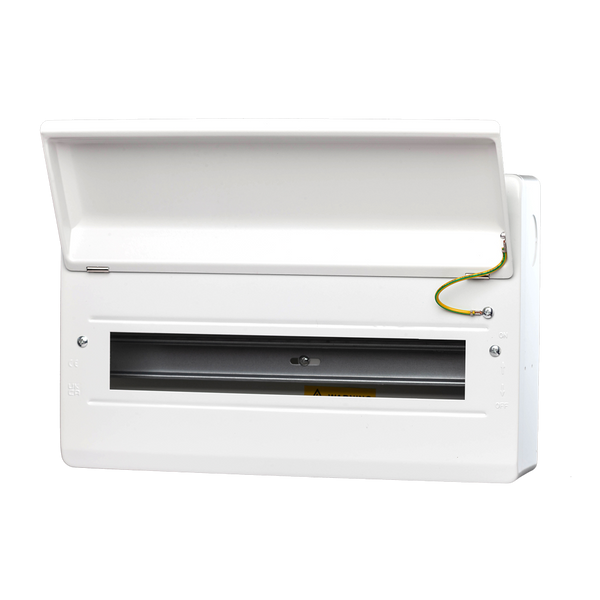

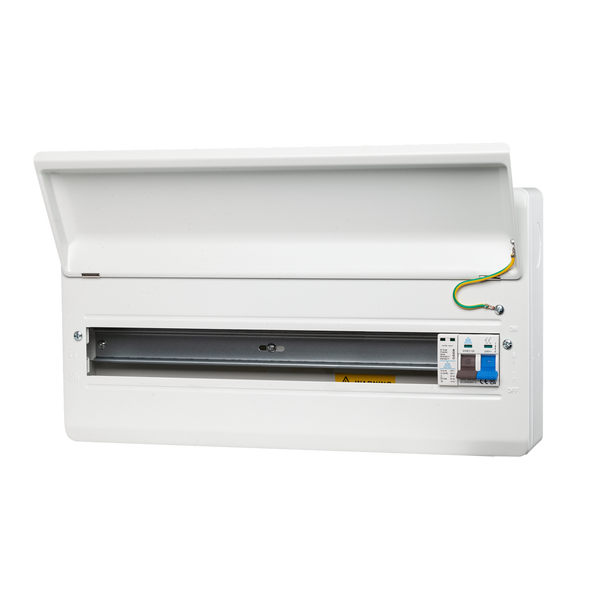

- WME22/SP – 22 module (19 usable ways)
- WME28/SP – 28 module (24 usable ways)
- WME36/SP – 36 module (32 usable ways)
Do I need a separate MCB for the SPD?
No – these boards use a single-module SPD that doesn’t require a separate MCB, saving space.
Are these compliant with the 18th Edition?
Yes – all models meet BS 7671:2018 Amendment 2 requirements for surge protection.
What’s the benefit of a Type 2 SPD?
It protects circuits and connected equipment from transient overvoltages caused by lightning strikes or switching events.
- Incoming Device: 100A main switch
- Surge Protection: Type 2 SPD (IEC 61643-11 & EN 61643-11 compliant)
- Material: Non-combustible steel, polyester powder-coated
- Knockouts: 25mm & 32mm (top/bottom), 40mm (sides/back), large rear slots
- Wiring Space: Raised DIN rail with generous cable room
- Compliance: BS EN 61439-3, BS 7671:2018 Amendment 2
Must be installed by a qualified electrician in accordance with current wiring regulations. Ensure SPD earth leads are kept as short as possible for effective surge protection.
- Mount securely using keyhole fixings
- Use suitable glands for cable entries
- Verify SPD operation after commissioning
