2 & 4 Way Plastic Meter Isolator Enclosures
18th Ed. Compliant
2-Year Warranty
UK Stock
Free Delivery £30+
Secure Payments With
These WCED plastic meter isolator enclosures provide a compact, secure housing for main switches, RCDs, RCBOs, and other protective devices. Available in 2-way and 4-way sizes, they are designed for tight-space installations while maintaining easy access for servicing and inspection. Each enclosure is supplied with a 3-part tamper-resistant seal and...
These WCED plastic meter isolator enclosures provide a compact, secure housing for main switches, RCDs, RCBOs, and other protective devices. Available in 2-way and 4-way sizes, they are designed for tight-space installations while maintaining easy access for servicing and inspection.
Each enclosure is supplied with a 3-part tamper-resistant seal and screw-fixed lids for added safety. Rated IP20, they are suitable for indoor use in domestic and light commercial environments. WEC isolator enclosures are increasingly specified by supply authorities as part of standard metering and isolation arrangements.
- Compact footprint – ideal for space-restricted installs
- Available sizes: 2-way and 4-way
- Secure sealing – 3-part seal with screw-fixed lids
- IP20 rated – indoor use
- Compatible devices: main switches, RCDs, RCBOs
Also see: our general enclosure range and garage consumer units for larger or outdoor installs.
What’s the difference between the WEC2 and WEC4?

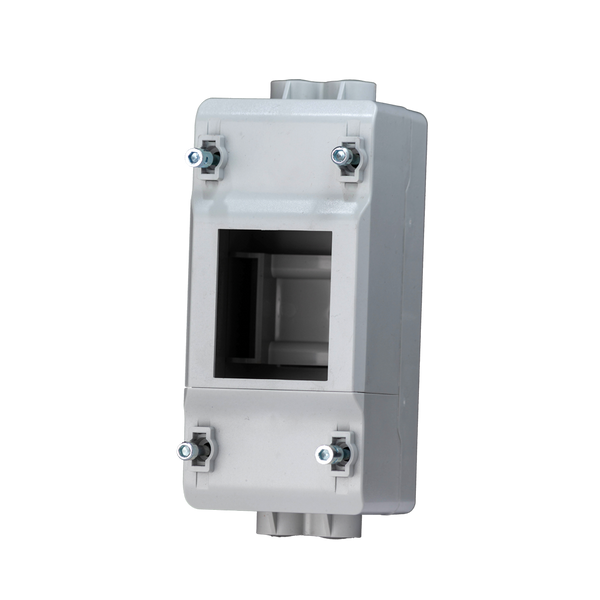

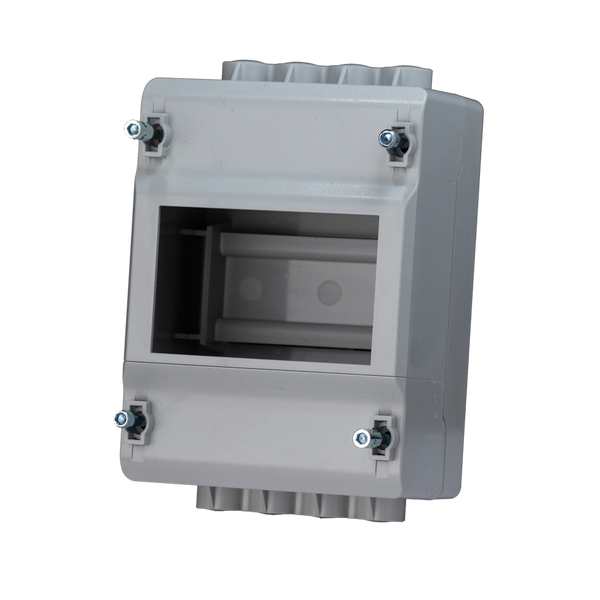

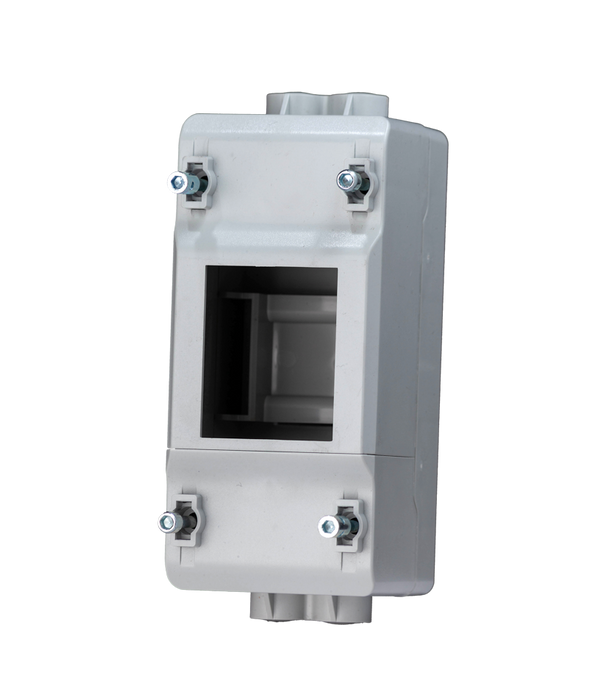

The WEC2 is a 2-way (2 module) enclosure, while the WEC4 is a 4-way version with extra space for RCBOs or RCDs alongside a main switch.
Are these enclosures lockable?
They feature a 3-part tamper seal system for security, but they are not padlock lockable. For padlockable solutions, see our rotary isolator range.
What devices will fit inside?
They are compatible with WCED main switches, RCDs, and RCBOs, as well as most devices with a standard DIN module footprint.
Where can I use these?
They are designed for indoor use in domestic, commercial, and light industrial metering or isolation arrangements. For outdoor or weather-exposed circuits, see our IP65 metal enclosures.
What if I need more capacity?
For larger setups, consider our consumer unit enclosures which provide more ways and flexibility for distribution.
- Model: WEC2 (2-way), WEC4 (4-way)
- Enclosure type: Plastic
- IP rating: IP20
- WEC2 dimensions (mm): 60W x 135H x 174D
- WEC4 dimensions (mm): 95W x 145H x 82D
- Safety features: 3-part tamper seal, screw-fixed lids
Install in accordance with BS 7671 by a qualified electrician. Ensure the enclosure is mounted securely and that devices inside are fitted to manufacturer specifications.
- Mount on a suitable flat surface
- Use supplied tamper seal where required
- Ensure lid screws are tightened fully for safety
- Check IP20 rating is suitable for the installation location
