EV Consumer Units with Built-In Surge Protection
Our EV-ready distribution boards are built for 18th Edition Amendment 2 compliance, giving you everything you need for a safe, regulation-ready EV charger install. Each unit comes with a Type 2 Surge Protection Device (SPD), the correct Type A or B RCDs, and pre-fitted RCBOs where required.
Read more
Available in IP40 indoor boards or IP65 weatherproof enclosures, these boards are ideal for both single-EV chargers and multi-point installations. Options include PME-compliant designs that avoid the need for a separate earth rod, plus hybrid variants compatible with heat pump circuits, solar PV, and three-phase systems.
- Pre-wired & tested – cuts install time on site
- PME fault protection available – ready for EV regulations
- SPD as standard – required under BS 7671 for EV circuits
- Scalable – from domestic wallbox installs to commercial multi-bay setups
For delivery details see our delivery information or returns policy.
4 Way Metal EV Protection Unit – 32A B Curve A-Type RCBO + SPD (WMRC32BSP)
£31.90
The WMRC32BSP is a 4 Way Metal EV Protection Unit combining an A-Type bi-directional RCBO with a Type 2 Surge Protection Device inside a durable steel enclosure. Designed for single-phase EV charger circuits, it delivers overload, earth-leakage, and transient-voltage protection in one pre-wired, regulation-ready board....
IP65 EV RCBO Kit – 32A B Curve A Type + Surge Protection (WPRC32BSP)
£34.16
The WPRC32BSP is a weatherproof IP65 EV RCBO kit combining a 32A B Curve Type A RCBO with a factory-fitted Type 2 Surge Protection Device (SPD). Built into a robust plastic enclosure, it delivers overload, short circuit, earth leakage, and transient surge protection in one...
EV Connection Unit – 100A Main Switch + Surge Protection + 20A MCB (WEVCU20BSP)
£34.19
The WEVCU20BSP is a compact 5-module EV connection unit that combines surge protection, overload protection, and isolation in one enclosure. Housed in a 5-way IP40 metal consumer unit, it’s pre-wired and fitted with a 100A double-pole main switch, Type 2 SPD, and a 20A MCB...
PME Consumer Unit – 40A C Curve Type A RCBO, IP65 (WPEPME08/C40)
£88.40
The WPEPME08/C40 is an IP65-rated PME consumer unit pre-fitted with a 40A C Curve Type A RCBO and integrated PME fault detection relays. It eliminates the need for an earth rod in EV charger installations by safely isolating all conductors — live, neutral, and earth...

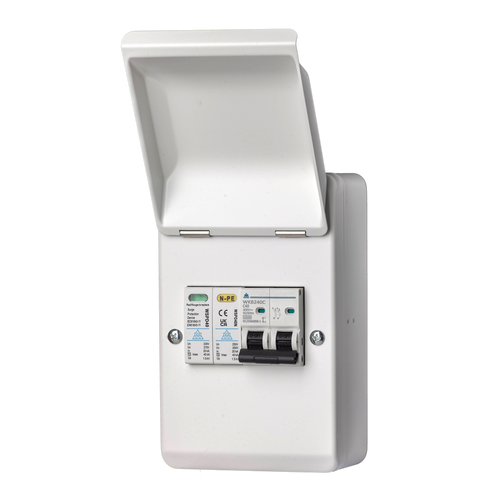

4-Way Metal Box with 2 Module 40A MCB plus Surge Protection
£29.40
The 4 Way Metal Box with 40A MCB and Type 2 Surge Protection Device is a compact distribution solution ideal for EV charger supplies, outbuildings, and small sub-mains. Supplied built-to-order, it combines circuit protection and surge defence in a durable steel enclosure, saving space and...
EV Surge Protection Explained
EV chargers draw high loads and are sensitive to transient overvoltage. That’s why the 18th Edition wiring regulations make surge protection a requirement for EV installations. Without an SPD, voltage spikes from the grid or nearby lightning strikes can damage the charger and connected electronics.
Do EV Chargers Already Have Built-In Surge Protection?
Some EV chargers include limited surge suppression, but BS 7671 requires a dedicated SPD at the supply board. Using a compliant EV consumer unit ensures you meet regulations and keep the installation covered by manufacturer and insurance warranties.
Choosing the Right EV Distribution Board
- Domestic installs – compact boards like the 4-Way EV Protection Unit with SPD + RCBO.
- Commercial bays – larger capacity options such as the IP65 EV Connection Unit with Surge Protection.
- Outdoor installs – weatherproof boards including the 8-Way IP65 EV Connection Unit.
- PME supplies – boards with built-in PEN fault detection like the IP65 PME Fault Detection Unit, no earth rod required.
Trust & Compliance
All our EV surge protection boards are UK tested, BS EN certified, and shipped from stock with next-day delivery options. Each unit comes pre-wired to save time on site and includes full manufacturer warranty support. Returns are covered under our returns policy.
FAQs
Do I always need a Type B RCD for EV chargers?
Not always – most chargers are compatible with Type A RCDs, but certain models with DC leakage require Type B. Always check manufacturer guidance.
Can I use these boards with solar or hybrid systems?
Yes – many of our EV surge boards are designed to integrate with solar PV SPDs and heat pump boards, giving future-proof flexibility.
What’s the difference between an EV board and a standard consumer unit?
An EV-ready board is pre-fitted with the protection devices required under BS 7671: SPD, RCD/RCBO, and (where needed) PME fault detection.
Need help matching the right board to your charger brand or project? Contact our technical team for free advice.
