A three-phase distribution board is the backbone of most commercial and industrial installs, supplying balanced power to machinery, lighting, HVAC, and EV chargers. But like any piece of electrical infrastructure, its safety and efficiency depend on regular maintenance and correct testing. If left unchecked, small faults can lead to tripped circuits, downtime, or even dangerous failures.

This guide explains how three-phase boards work, the tests electricians should perform, and how to stay compliant with UK regulations.

🧭 Jump to:

What is a Three Phase Distribution Board?

A three-phase distribution board (sometimes called a TPN board) splits incoming three-phase supply across multiple circuits. Unlike single-phase consumer units, they’re designed for heavier loads and more complex layouts.

Typical components include:

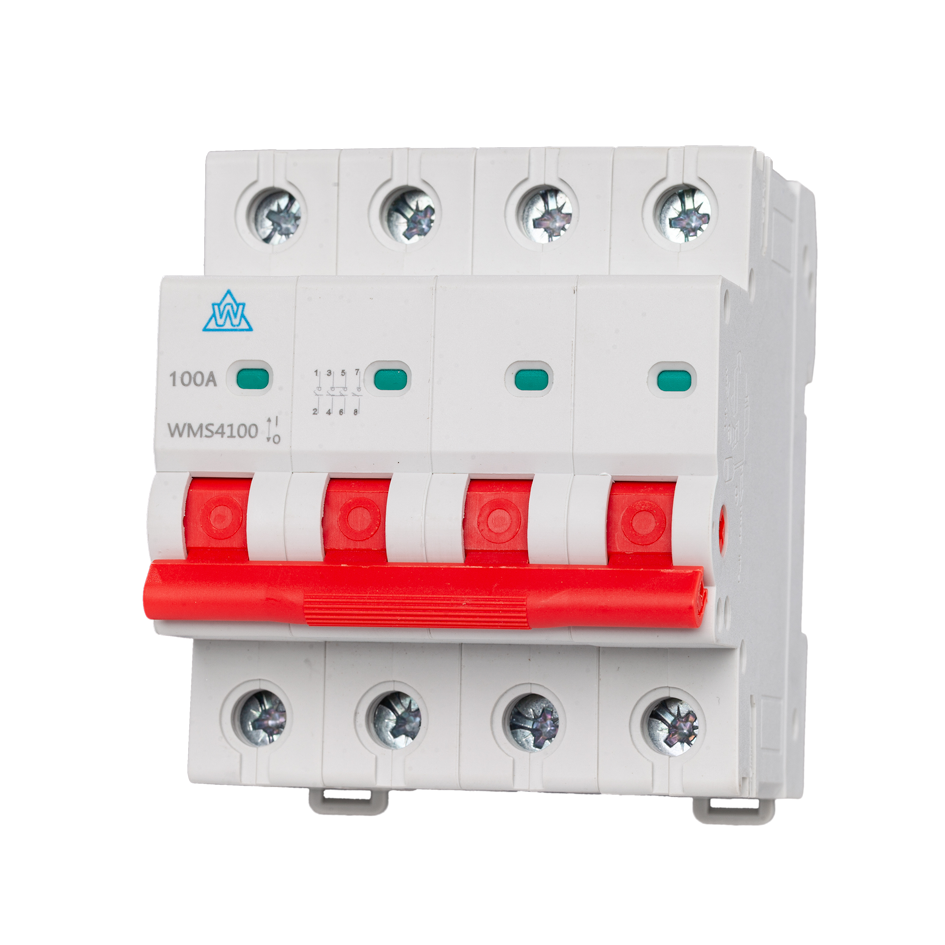

• Main switch for isolation (e.g. 4 Pole 100A Main Switch)
• MCBs for circuit overcurrent protection
• RCBOs and RCDs for fault protection
• SPDs for surge safety
• Busbars & accessories

For contractors and facilities teams, keeping these boards serviced isn’t optional - it’s part of regulatory compliance under BS 7671.

Why Maintenance and Testing Matters

Testing three-phase boards isn’t just a tick-box exercise - it’s about proving that protection devices will operate correctly under fault conditions. Regular checks identify:

• Loose terminations that could cause overheating
• Faulty breakers or isolators that won’t trip when required
• Insulation degradation in wiring
• Inadequate fault loop impedance readings

Neglecting these checks could mean an RCD doesn’t disconnect in time, or an SPD fails to protect against voltage surges. Both can result in serious equipment damage or safety hazards.

Core Tests for Three Phase Distribution Boards

When maintaining boards such as the 125A 3 Phase Distribution Board, electricians follow structured testing sequences:

Dead Testing (before energising):

• Continuity of protective conductors
• Continuity of ring/phase conductors
• Insulation resistance
• Polarity checks

Live Testing (energised):

• Earth fault loop impedance (Zs / Ze)
• Prospective fault current (PFC)
• RCD/RCBO functional testing (e.g. High Immunity A Type 4 Pole RCBO)

Each of these ensures the protective devices in the board will respond correctly in real-world fault conditions.

📏 How Often Should They Be Checked?

The frequency of inspection depends on the environment:

• Commercial offices – every 5 years
• Industrial sites – often every 3 years due to higher loads
• Construction/temporary boards – every 3 months

Portable appliances on the board may also need PAT testing at shorter intervals. Always follow the inspection schedule in BS 7671 and the Electrical Safety First guidance.

⚙️ Common Faults Found During Testing

Even well-installed boards develop issues over time. Regular checks reveal the tell-tale faults that can compromise safety and efficiency.

• Overloaded circuits – traced back via MCB trips (4 Pole 10kA MCBs)
• Neutral/earth faults – usually flagged in insulation resistance tests
• Surge device failures – highlighted by SPD status windows (Three Phase 4 Pole SPD WSPD440)
• Physical damage – loose screws, scorched busbars, or cracked enclosures (Three Phase Extension Board)

Spotting and fixing these early prevents bigger breakdowns.

📚 Compliance & Best Practice

Staying compliant isn’t just about ticking boxes - it’s about following procedures that keep systems safe and inspectors satisfied.

• Use properly rated isolation (Meter Isolator with Surge Protection) before working.
• Ensure all protective devices are BS EN standard.
• Record results in an EICR (Electrical Installation Condition Report).
• Replace damaged parts with approved spares - never mix brands or downgrade ratings.

🙋 FAQs

Electricians and facilities teams ask the same questions time and again. Here are the most common queries on three-phase board testing and upkeep.

How does a three-phase distribution board work?

It splits incoming three-phase supply across multiple circuits, balancing loads while protecting each with breakers and RCD/RCBOs.

How do you test a three-phase board with a multimeter?

Use continuity for dead testing, and voltage/impedance ranges for live tests. Always isolate correctly and follow BS 7671 sequences.

What does C1, C2, C3 mean on inspection?

C1 = Danger present, immediate remedial action
C2 = Potentially dangerous, urgent attention
C3 = Improvement recommended

Can I test a distribution board myself?

No - UK law requires this work be carried out by qualified electricians due to the risks involved.

Do SPDs and RCDs need regular testing?

Yes - press the test button on RCDs monthly. SPDs should be visually checked; replace if the status window indicates failure.

✅ Key Takeaway

Three-phase distribution boards are high-capacity workhorses, but they only stay safe and efficient with regular testing. Whether you’re running a small commercial site or a large industrial install, investing in proper maintenance keeps downtime low and compliance high.
