It is possible to connect an EV charger to a split load consumer unit, but that does not automatically mean it is the right approach. The real question is whether the existing board can safely and correctly support the EV circuit without compromising protection, selectivity, or compliance.
In some cases, a split load board can handle an EV charger circuit if the protection is set up properly. In others, a dedicated EV consumer unit or connection unit is the cleaner, safer and more straightforward option.
For related products and protection options, browse our EV-Ready Consumer Units, Type A RCBOs, Type B RCDs and Surge Protection ranges.
Quick Answer: Yes, you can connect an EV charger to a split load consumer unit if the circuit has the correct protection and isolation. However, many installers now prefer a dedicated EV consumer unit or connection unit because it simplifies compliance, improves reliability, and avoids complications around RCD selection, nuisance tripping, and future upgrades.
| Scenario | Recommended Direction | Why |
|---|---|---|
| Modern board with spare way + correct RCBO protection | Split load may be acceptable | If protection is correctly specified and installed |
| Older board or limited protection options | Dedicated EV unit recommended | Cleaner compliance and safer protection setup |
| Installer wants simple, future-proof solution | Dedicated EV board or connection unit | Avoids RCD conflicts and simplifies upgrades |
🧭 Jump to:
What Is a Split Load Consumer Unit?
A split load consumer unit divides circuits across two RCDs, typically separating higher-risk circuits from others to reduce the chance of total power loss.
This works well for standard domestic circuits, but EV chargers introduce different protection requirements that can make this setup less ideal in some cases.
Can You Put an EV Charger on a Split Load Board?
Yes - but only if the EV circuit is given the correct protection.
The charger must:
- Be protected by the correct RCD or RCBO
- Have proper double-pole isolation
- Include surge protection where required
- Avoid conflicts with upstream RCD devices
If those conditions are not met, the split load board can become a weak point rather than a suitable solution.
Common Problems with Split Load Boards and EV Chargers
- Nuisance tripping due to shared RCD protection
- Incorrect RCD type (Type AC or unsuitable upstream protection)
- Lack of selectivity between devices
- No dedicated EV protection
- Limited space for proper circuit layout
These issues are exactly why installers often move away from using existing boards for EV circuits.
When It Can Work
A split load board may still be suitable when:
- There is a dedicated RCBO for the EV circuit
- The board is modern and correctly configured
- The charger’s protection requirements are fully met
- There is no conflict with upstream RCD devices
When You Should Avoid Using a Split Load Board
- Older consumer units with limited protection options
- Shared RCD arrangements with no dedicated RCBO
- Unclear RCD compatibility (Type A vs Type B requirements)
- Installations where future expansion is likely
In these cases, forcing the EV circuit into the existing board usually creates more problems than it solves.
Why Many Installers Use a Dedicated EV Consumer Unit Instead
A dedicated EV consumer unit or connection unit removes most of the uncertainty.
- Clear, dedicated protection for the EV circuit
- Correct RCBO / RCD selection from the start
- Built-in SPD where required
- Better isolation and layout
- Cleaner compliance with current standards

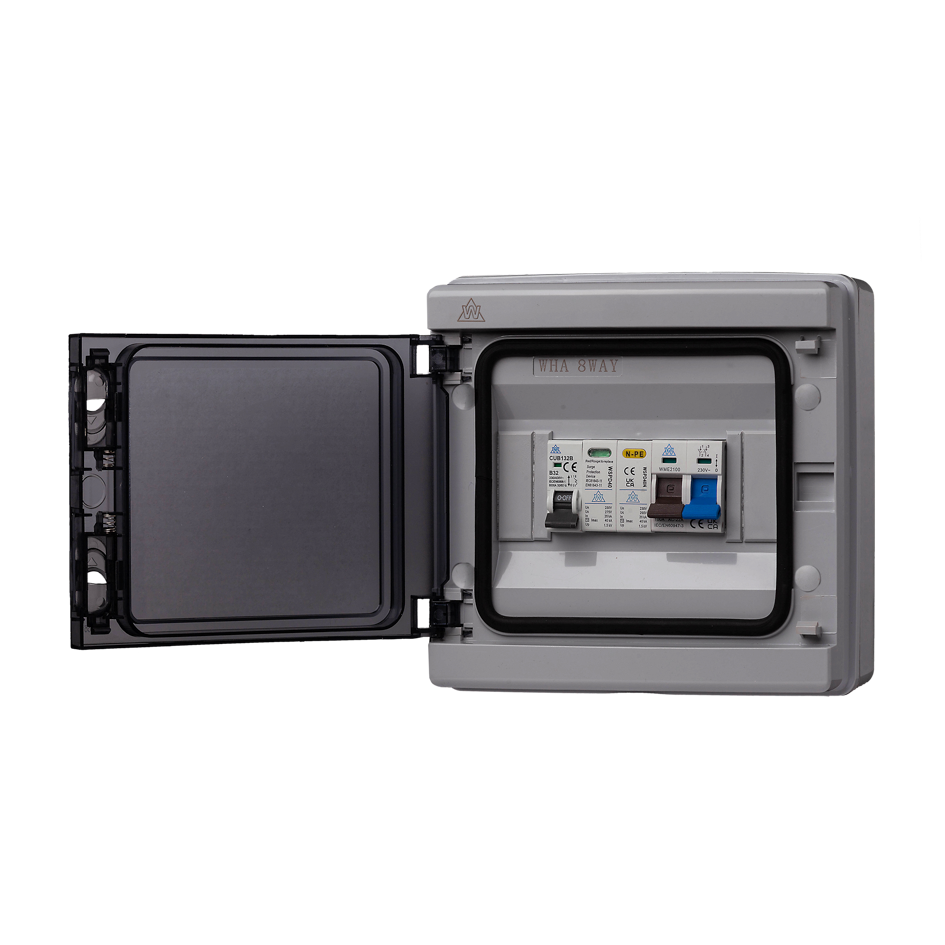

Installer’s Pick: For a clean EV setup, units like the WEVCU32BSP, WMIP40CSP and WMRC40BSP provide a dedicated, compliant solution without relying on the existing board.
Products & Categories That Fit the Job
- EV Connection Units: WEVCU32BSP · WSRC532BSP
- EV Consumer Units: WMIP40CSP · WMRC40BSP
- EV Kits: EV-Ready Consumer Units
FAQs
Can I use an existing consumer unit for an EV charger?
Yes, but only if it can provide the correct protection and isolation for the EV circuit.
Do EV chargers need their own circuit?
Yes - EV chargers should always be on a dedicated circuit.
Is a dedicated EV consumer unit better?
In most cases, yes. It simplifies protection, improves reliability, and avoids issues with shared RCDs.
Why do split load boards cause problems?
Because shared RCD protection can lead to nuisance tripping and poor selectivity.
Do EV chargers need surge protection?
In many installs, yes - especially under current regulations and best practice.
Final Word
You can connect an EV charger to a split load board - but it is not always the best option.
If the protection is correct and the board supports it, it can work. But in many cases, a dedicated EV consumer unit is the cleaner, safer and more reliable solution.
It removes guesswork, reduces nuisance tripping, and gives the EV circuit the protection it actually needs.
