2-Pole vs 4-Pole Isolators: What’s the Difference?

What Does “Pole” Mean on an Electrical Switch?

A pole is an electrically separate switching path within a device.

If an isolator has two poles, it can switch two conductors simultaneously. If it has four poles, it can switch four.

For example:

• Single-pole: one switched conductor
• 2-pole: two switched conductors
• 3-pole: three switched conductors
• 4-pole: four switched conductors

The pole count does not tell you:

• The current rating
• The number of phases by itself
• The short-circuit protection rating
• Whether the device provides overcurrent protection
• Whether it is suitable for isolation

Those characteristics need to be checked separately.

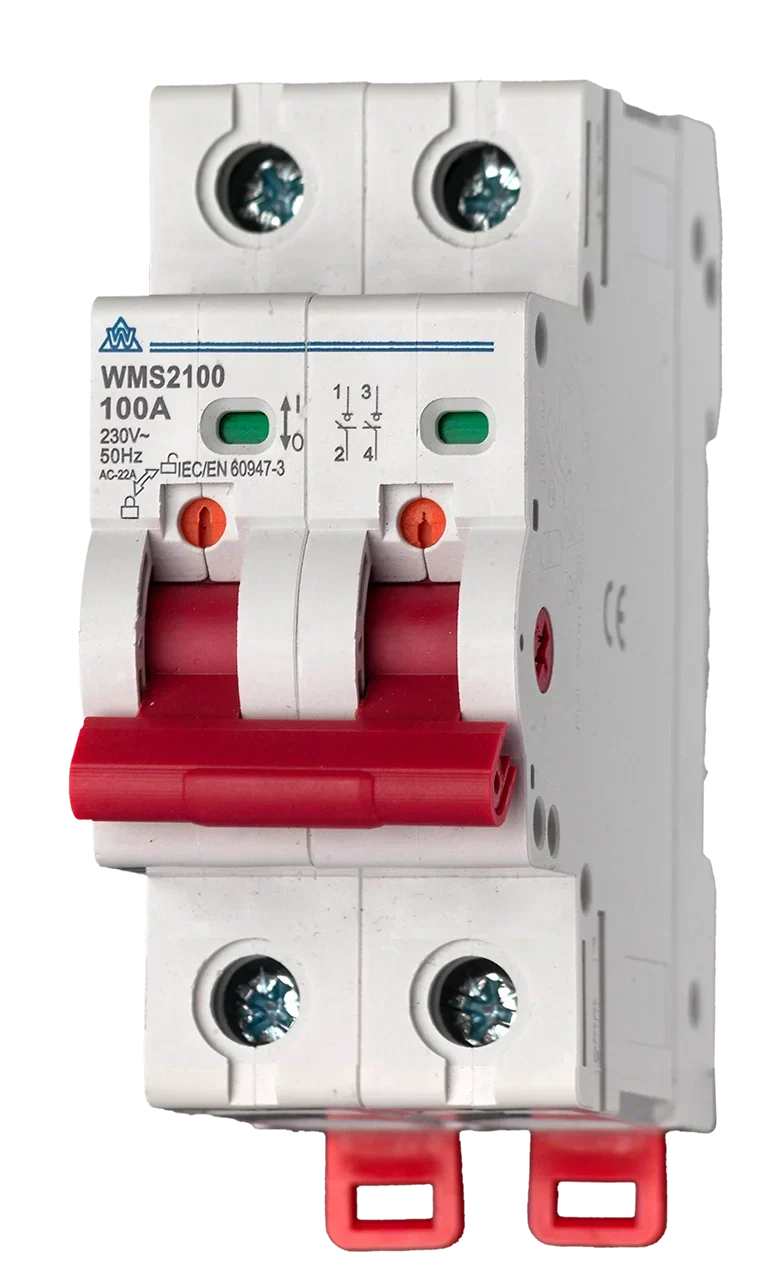

What Is a 2-Pole Isolator Switch?

A 2-pole isolator contains two mechanically linked switching poles.

On a standard single-phase installation, these are commonly used to switch:

• Line
• Neutral

Operating the isolator therefore disconnects both conductors together.

Common applications include:

• Single-phase meter isolation
• Consumer-unit incomers
• Single-phase equipment supplies
• EV and renewable-energy equipment
• Heat-pump supplies
• Single-phase plant and machinery
• Enclosed local isolation

A 2-pole device is not selected simply because an installation is domestic. It is selected because two conductors need to be switched for the required isolation arrangement.

What Is a Double-Pole Isolator?

Double pole and 2-pole normally describe the same basic switching format: two electrically separate poles operated together.

In common single-phase applications, a double-pole isolator switches line and neutral simultaneously.

This is different from a double-throw or two-way switch.

• Double pole / 2-pole: describes the number of switched poles.
• Double throw: describes the number of switching positions or output paths.
• Two-way switching: usually describes control of a load from two locations.

This distinction matters because searches for “2 way isolator” and “2 pole isolator” can refer to completely different switching requirements.

👉 Browse main switches and isolators.

What Is a 4-Pole Isolator Switch?

A 4-pole isolator contains four mechanically linked switching poles that operate together.

The most common application is a three-phase and neutral supply, where the device can switch:

• L1
• L2
• L3
• Neutral

Four-pole isolators are therefore commonly found on:

• Three-phase distribution boards
• Commercial installations
• Industrial plant
• Three-phase EV charging equipment
• Heat pumps and HVAC equipment
• Solar PV and battery systems
• Machinery
• Generator and changeover arrangements

However, “4-pole” technically describes the number of switched poles rather than saying that the device can only ever be used on a three-phase and neutral system.

2-Pole vs 4-Pole Isolator: What Is the Difference?

The fundamental difference is simply the number of conductors the switch can control simultaneously.

After determining the required pole count, you still need to select the correct:

• Current rating
• Voltage rating
• Utilisation category
• Isolation capability
• Enclosure
• IP rating
• Mounting arrangement
• Terminal capacity

Can You Use a 4-Pole Isolator for Single-Phase?

Potentially, but it is not normally necessary.

A standard single-phase circuit requiring simultaneous isolation of line and neutral normally only needs a 2-pole device.

A 4-pole isolator provides additional switching poles that would ordinarily be unnecessary for that arrangement.

However, a four-pole device is not automatically unsuitable simply because the supply is single-phase.

Whether it can be used depends on:

• The manufacturer's permitted wiring arrangements
• Whether all poles operate together as required
• Voltage and current ratings
• Isolation characteristics
• Terminal arrangements
• The equipment being controlled

In practice, if the job only requires line and neutral isolation, a correctly rated 2-pole isolator is normally the simpler and more appropriate choice.

Is an Isolator the Same as a Main Switch?

Not always.

The terms are often used interchangeably on site, but they describe slightly different roles.

• Isolator: a switching device intended to disconnect equipment or part of an installation from its supply for safety, maintenance or servicing.
• Main switch: the primary switching device controlling the supply to a consumer unit or distribution board.

A main switch may also provide isolation if it is designed and rated for that function.

Likewise, an enclosed isolator may sit outside a consumer unit and provide local isolation for plant, machinery, EV equipment, heat pumps or another downstream load.

The pole-count principle remains the same:

• A 2-pole main switch commonly switches line and neutral on a single-phase board.
• A 4-pole main switch commonly switches three phases and neutral on a three-phase board.

But the final selection should be based on the exact switching duty rather than the product name alone.

Related guide: What Is a Meter Isolator Switch?

Does the Neutral Always Need to Be Switched?

Not in every electrical system or every switching application.

Whether neutral needs to be disconnected depends on:

• The earthing arrangement
• The function of the switch
• Whether the device is being used for isolation
• The supply configuration
• Applicable BS 7671 requirements
• Equipment manufacturer instructions

On a typical single-phase domestic installation, double-pole isolation of line and neutral is common.

On three-phase and neutral systems, four-pole switching is also widely used where all live conductors need to be isolated together.

However, installers should not assume that neutral switching is identical across every TN, TT or specialist system.

What About a 3-Pole Isolator?

A 3-pole isolator switches three conductors simultaneously.

It is commonly used where a three-phase load has no neutral connection, for example certain:

• Three-phase motors
• Pumps
• Machinery
• Industrial heaters
• Plant equipment

That gives a useful distinction:

• 2-pole: commonly single-phase line + neutral
• 3-pole: commonly three phases with no switched neutral
• 4-pole: commonly three phases + neutral

The equipment wiring diagram and isolation requirements should determine whether three or four switched poles are needed on a three-phase circuit.

What Amp Isolator Do You Need?

After choosing the correct pole count, the next major specification is the current rating.

The isolator must be rated for the current it is expected to carry and for the type of load being switched.

Common ratings include:

• 20 A
• 32 A
• 40 A
• 63 A
• 80 A
• 100 A
• 125 A and above

The correct rating depends on:

• Design current
• Upstream protective device
• Load type
• Number of phases
• Voltage
• Manufacturer requirements
• Utilisation category
• Ambient conditions

A 100 A isolator is not automatically the correct choice just because the incoming supply fuse is rated at 100 A.

The device still needs to suit the actual circuit and switching duty.

Why the Utilisation Category Matters

The current rating printed on a switch does not tell the whole story.

Switches and isolators may also carry a utilisation category describing the type of load they are intended to switch.

Different loads place very different stresses on switch contacts.

For example:

• Resistive loads
• Inductive motors
• Transformers
• Capacitive loads
• Mixed domestic loads
• Inverter-driven equipment

An isolator may be perfectly suitable for carrying a particular current but unsuitable for regularly making or breaking that current under load.

Where the switch will routinely operate under load, check the manufacturer’s declared utilisation category rather than selecting solely by pole count and amp rating.

When Should You Use a Rotary Isolator?

A rotary isolator provides local switching using a rotary handle, commonly with clear ON and OFF positions.

They are widely used for equipment that needs a convenient local isolation point, including:

• Motors
• Heat pumps
• Air-conditioning equipment
• Machinery
• Pumps
• Solar equipment
• EV charging equipment
• Commercial and industrial plant

Rotary isolators are available in 2-pole, 3-pole and 4-pole configurations.

The same selection principle applies:

• Determine which conductors must be switched.
• Select the required pole count.
• Check current and voltage ratings.
• Check utilisation category.
• Select a suitable enclosure and IP rating.

👉 Compare rotary isolator switches.

2-Pole and 4-Pole Meter Isolators

Meter isolators provide a point of isolation between metering equipment and the downstream installation.

On a typical single-phase supply, this normally means a 2-pole meter isolator switching line and neutral.

Three-phase installations may require a multi-pole arrangement appropriate to the incoming supply and metering setup.

A meter isolator can make future consumer-unit replacement, maintenance and testing easier because the downstream installation can be isolated without interfering with electricity-distributor equipment.

Always establish:

• Who owns the equipment at the meter position
• Whether the proposed location is permitted
• The number of conductors requiring isolation
• The supply current rating
• Terminal capacity
• The approved enclosure arrangement

👉 Browse meter isolation and changeover switches.

Is a 4-Pole Isolator the Same as a 4-Pole MCB?

No.

A 4-pole isolator is primarily a switching and isolation device.

A 4-pole MCB provides overcurrent protection as well as switching.

Do not substitute one for the other simply because both devices have four poles.

Related category: 4-Pole MCBs

How to Choose Between a 2-Pole and 4-Pole Isolator

1. Identify the supply. Confirm whether the circuit is single-phase or three-phase.
2. Identify every conductor that needs switching. Do not select by phase count alone.
3. Choose the pole count. Two poles are common for line + neutral; four poles are common for three phases + neutral.
4. Check neutral requirements. Confirm whether neutral needs simultaneous disconnection.
5. Determine the design current. Select a switch with a suitable current rating.
6. Check voltage rating. Confirm suitability for the system voltage.
7. Check the switching duty. Review the utilisation category for the connected load.
8. Confirm isolation capability. Make sure the product is suitable for the function required.
9. Select the enclosure. Consider DIN-rail, enclosed, rotary, internal or external installation.
10. Check the IP rating. Outdoor and exposed installations need suitable environmental protection.
11. Check terminals. Confirm conductor sizes and number of cables that can be accommodated.
12. Follow manufacturer instructions. Especially where unused poles or unusual conductor arrangements are proposed.

Browse Isolators and Main Switches

• Main Switches & Rotary Isolators
• Rotary Isolator Switches
• Meter Isolation & Changeover Switches
• 4-Pole MCBs
• Three-Phase Boards & Accessories

Before ordering, check the number of poles, current rating, voltage, switching duty, terminal capacity and enclosure requirements.

2-Pole and 4-Pole Isolator FAQs

What does 4-pole mean in electrical terms?

It means the device contains four switched poles. In a typical three-phase and neutral system, those poles switch L1, L2, L3 and neutral.

What is a 4-pole switch?

A 4-pole switch controls four separate conductors simultaneously. It is commonly used for three-phase and neutral supplies.

What is a 2-pole isolator switch?

A 2-pole isolator has two switched poles. In a typical single-phase installation, it switches line and neutral together.

Is a 2-pole isolator the same as a double-pole isolator?

Yes, in common usage. Both terms normally describe two mechanically linked switching poles.

What is a double-pole isolator used for?

It is commonly used to isolate line and neutral simultaneously on a single-phase circuit.

Can you use a 4-pole isolator for single-phase?

Potentially, if the manufacturer permits the proposed wiring arrangement and the switch is otherwise suitable. However, a 2-pole device is normally the simpler choice where only line and neutral need to be switched.

Can I leave two poles unused on a 4-pole isolator?

Only where the manufacturer permits that configuration. Do not assume unused poles are acceptable without checking the product instructions and switching arrangement.

Can you use a 2-pole isolator on three-phase?

Not where all three phases require isolation. A 2-pole device can only switch two conductors, so it cannot provide simultaneous isolation of a conventional three-phase supply.

Do I need a 3-pole or 4-pole isolator for three-phase?

It depends on whether the neutral also needs to be switched. Three-pole isolators are commonly used for three-phase loads without neutral, while four-pole devices are common where three phases and neutral need isolation.

What is the difference between a 2-pole and 4-pole isolator?

A 2-pole isolator switches two conductors, while a 4-pole isolator switches four. In typical installations this corresponds to line + neutral on single-phase and L1 + L2 + L3 + neutral on three-phase.

Is a double-pole isolator the same as a double-pole switch?

Both have two switched poles, but the particular switch must be rated and designed for the intended isolation duty. Pole count alone does not confirm suitability.

What is the difference between a DP switch and an isolator?

DP means double pole and describes the number of switched poles. “Isolator” describes the intended function. A double-pole device can provide isolation only if it is designed and rated for that purpose.

Is an isolator the same as a circuit breaker?

No. An isolator is primarily intended for switching and safe isolation. A circuit breaker additionally provides automatic overload and short-circuit protection.

Does an isolator provide overload protection?

No, not by itself. An isolator normally requires separate upstream or downstream overcurrent protection.

What amp isolator do I need?

Choose a current rating suitable for the circuit design and connected load. Also check the utilisation category, voltage and equipment manufacturer requirements.

Can a 100A isolator be used on a lower-current circuit?

Potentially, provided the device is suitable for the voltage, switching duty, conductor sizes and overall installation. A higher current rating does not remove the need for appropriate overcurrent protection elsewhere.

Can a 4-pole isolator be used as a main switch?

Yes, where the device is specifically suitable for the required main-switch and isolation function and is correctly rated for the board and supply.

What is a 4-pole rotary isolator?

It is a rotary-operated switch with four linked poles, commonly used for local isolation of three-phase and neutral equipment.

What is a single-phase isolator?

It is an isolator used on a single-phase supply. A 2-pole device switching line and neutral is the common arrangement.

Is 2-pole the same as 2-phase?

No. “2-pole” describes the number of switched poles. It does not mean the supply has two phases.

Is 4-pole the same as four-phase?

No. A four-pole isolator normally serves a three-phase and neutral system. The fourth pole commonly switches the neutral rather than a fourth phase.

What is all-pole isolation?

All-pole isolation means disconnecting all live conductors that need to be isolated from the supply. The required number of poles depends on the system configuration.

Should You Use a 2-Pole or 4-Pole Isolator?

For most installations, the decision is straightforward:

• 2-pole isolator: commonly used where line and neutral need to be switched on a single-phase system.
• 3-pole isolator: commonly used for three-phase equipment where no neutral needs switching.
• 4-pole isolator: commonly used where three phases and neutral need to be switched together.

But pole count is only the first step.

Before ordering, confirm:

• Supply arrangement
• Conductors requiring isolation
• Neutral switching requirement
• Current rating
• Voltage rating
• Utilisation category
• Isolation capability
• Terminal capacity
• Enclosure type
• IP rating
• Manufacturer requirements

👉 Compare main switches and rotary isolators, rotary isolator switches and meter isolation and changeover switches.
