125A 3 Phase Distribution Board – 6 Way
18th Ed. Compliant
2-Year Warranty
UK Stock
Free Delivery £30+
Secure Payments With

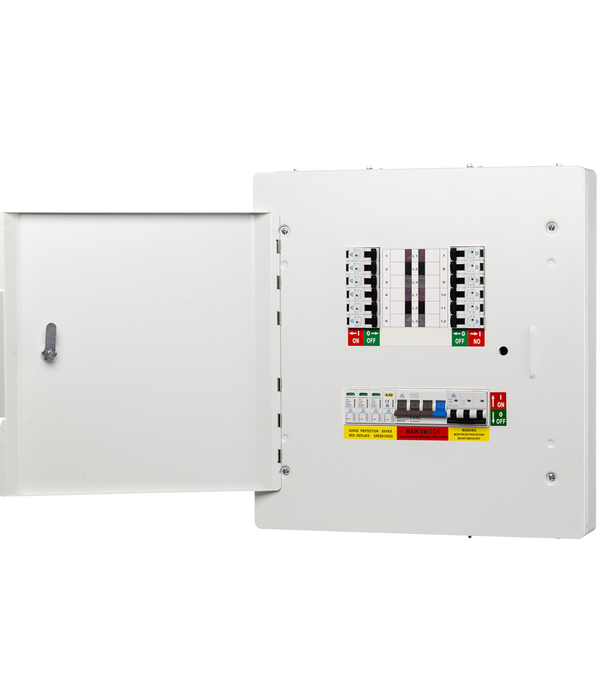

The WTPN06-125 is a 6-way 125A three-phase distribution board designed for commercial, industrial, and larger domestic installations needing a balance of compact size and additional circuit capacity. It comes pre-fitted with a 125A 4-pole main switch and integrated Type 2 Surge Protection Device (SPD), ensuring safe and compliant power distribution...
The WTPN06-125 is a 6-way 125A three-phase distribution board designed for commercial, industrial, and larger domestic installations needing a balance of compact size and additional circuit capacity. It comes pre-fitted with a 125A 4-pole main switch and integrated Type 2 Surge Protection Device (SPD), ensuring safe and compliant power distribution straight out of the box.
This board’s 6 outgoing ways give installers more flexibility than the 4-way variant, making it ideal for small business units, multi-use workshops, or larger homes on a three-phase supply. Built in a durable IP40 steel enclosure, it delivers long-term reliability while keeping installs neat and accessible for servicing.
Installer Tip: Pick the 6-way model when you need extra outgoing circuits beyond the compact 4-way – common in small commercial units or where both lighting and power circuits are distributed separately.
Key Features
- 125A 4-pole main switch – safe isolation and circuit control
- Pre-installed Type 2 SPD – protection against transient surges
- 6 outgoing ways – more capacity than the 4-way unit
- IP40 steel enclosure – 1.2mm construction for durability
- Neutral & earth terminals provided both sides – fully shrouded
- Accepts 6kA MCBs and RCBOs
- Removable gland plate for flexible cable entry
- Complies with BS EN 61439-3
Compare 125A 3 Phase Distribution Board Variants
| Model | Ways | Main Device | SPD |
|---|---|---|---|
| WTPN04-125 | 4 | 125A 4P Main Switch | Type 2 SPD |
| WTPN06-125 (This Product) | 6 | 125A 4P Main Switch | Type 2 SPD |
| WTPN08-125 | 8 | 125A 4P Main Switch | Type 2 SPD |
| WTPN12-125 | 12 | 125A 4P Main Switch | Type 2 SPD |
| WTPN16-125 | 16 | 125A 4P Main Switch | Type 2 SPD |
| WTPN24-125 | 24 | 125A 4P Main Switch | Type 2 SPD |
Is this board larger than the 4-way version?
Yes – the WTPN06-125 provides two additional outgoing ways, giving you more flexibility while still keeping a compact footprint.
Does it include surge protection?
Yes – a Type 2 SPD is pre-installed across the entire WTPN125 range, including this 6-way model.
What kind of installs use a 6-way board?
Common examples include small commercial units, workshops, or domestic properties with multiple three-phase loads such as heat pumps and large EV chargers.
Which breakers fit this distribution board?
The WTPN06-125 accepts our full range of 6kA MCBs and RCBOs without any modification.
- Model: WTPN06-125
- Rated Current: 125A
- Ways: 6
- Incoming Device: 4-pole main switch
- Surge Protection: Type 2 SPD (integrated)
- Short Circuit Rating: 6kA
- Construction: 1.2mm steel enclosure, IP40
- Compliance: BS EN 61439-3
- Mounting: Keyhole wall mount
Supplied pre-wired and ready for installation by a qualified electrician. Ensure SPD earth connection is as short as possible for best protection.
- Allow clearance for the slightly larger 6-way footprint
- Follow SPD connection guidance to maintain compliance
- Use the removable gland plate for clean and adaptable entry
- Test isolation and SPD performance before handover
