When installing a sub board or secondary distribution board, one of the most common questions is whether you need to install additional surge protection - or whether the SPD at the main consumer unit is enough.
The answer depends on how the installation is set up. In some cases, the main board already provides adequate protection. In others, the sub board needs its own SPD to ensure full coverage.
This is especially important in modern installs with EV chargers, solar PV, heat pumps and inverter-driven equipment, where surge protection plays a key role in protecting sensitive electronics.
Browse related products including Surge Protection Devices, Consumer Units and EV Consumer Units.
Quick Answer: A sub board does not always need its own SPD if the upstream consumer unit provides effective protection. However, if there are long cable runs, exposed installations, or sensitive equipment, adding an SPD at the sub board is often the safer and more reliable option.
| Scenario | SPD Needed at Sub Board? | Why |
|---|---|---|
| Short cable run from main board | Usually no | Upstream SPD likely covers it |
| Long cable run / detached building | Often yes | Voltage surges can re-develop along the cable |
| EV / solar / inverter loads on sub board | Recommended | Sensitive electronics benefit from local protection |
🧭 Jump to:
What Is a Sub Board?
A sub board (or sub distribution board) is a secondary consumer unit fed from the main board. These are commonly used for:
- Garages and outbuildings
- Detached offices or workshops
- EV charger circuits
- Solar PV or battery systems
The key point is that a sub board is downstream of the main supply, which affects how surge protection behaves.
When Does a Sub Board Need Its Own SPD?
A sub board typically needs its own SPD when:
- The cable run from the main board is long (commonly over 10 metres)
- The sub board is in a separate building
- The installation includes EV chargers, solar PV or heat pumps
- The upstream SPD does not clearly protect the sub circuits
In these cases, adding a local SPD helps ensure that surges are controlled as close as possible to the equipment being protected.

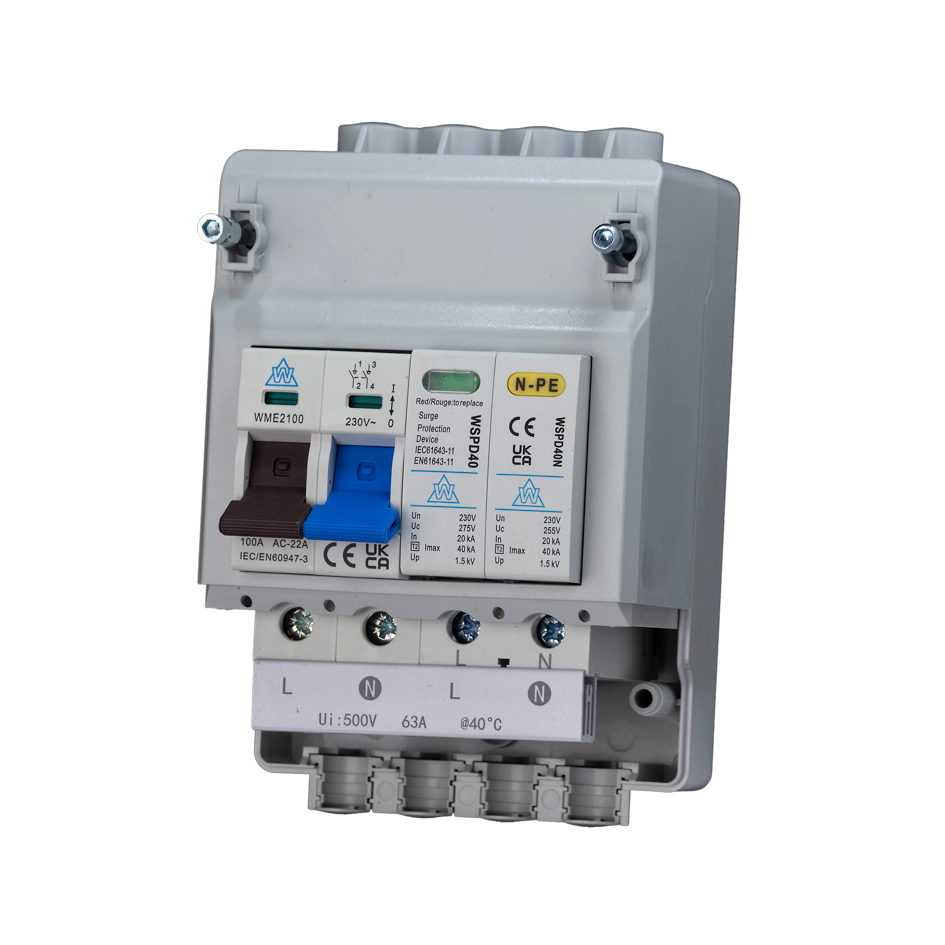

Installer’s Tip: For sub boards feeding EV or renewable systems, using a unit with built-in SPD - such as a pre-configured EV consumer unit — simplifies compliance and reduces risk.
When You Might Not Need an SPD at the Sub Board
If the upstream consumer unit includes a properly installed SPD and:
- The cable run is short
- The installation is contained within the same building
- The sub board feeds standard circuits only
Then the existing SPD may already provide adequate protection.
However, this should be confirmed - not assumed.
Key Design Considerations
- Cable length: Longer runs increase the risk of surge reappearance
- Installation environment: Outdoor and exposed installs need stronger protection
- Load type: EV chargers, inverters and electronics are more sensitive
- Coordination: SPDs should be coordinated between boards where multiple are used
In practice, many installers choose to include SPD at both the origin and sub board level on more complex installations.
Common Mistakes to Avoid
- Assuming upstream SPD covers all downstream circuits
- Ignoring long cable runs to outbuildings
- Skipping SPD on EV or solar-fed sub boards
- Not coordinating multiple SPDs properly
Final Word
Sub boards do not always need their own surge protection - but in many real-world installs, especially those involving long cable runs or sensitive equipment, adding an SPD at the sub board is the safer choice.
The key is simple: make sure the circuits are actually protected, not just assumed to be protected.
